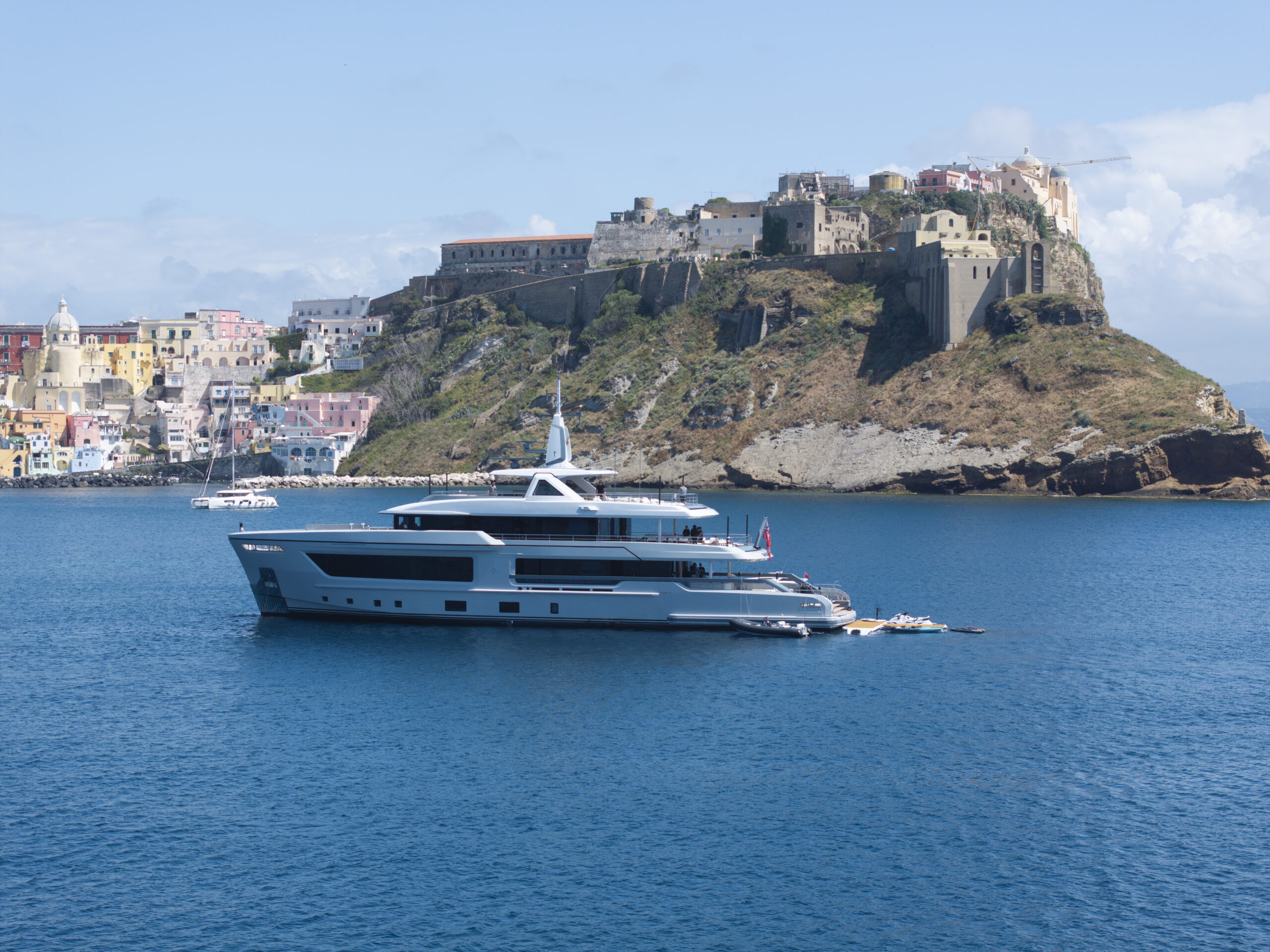

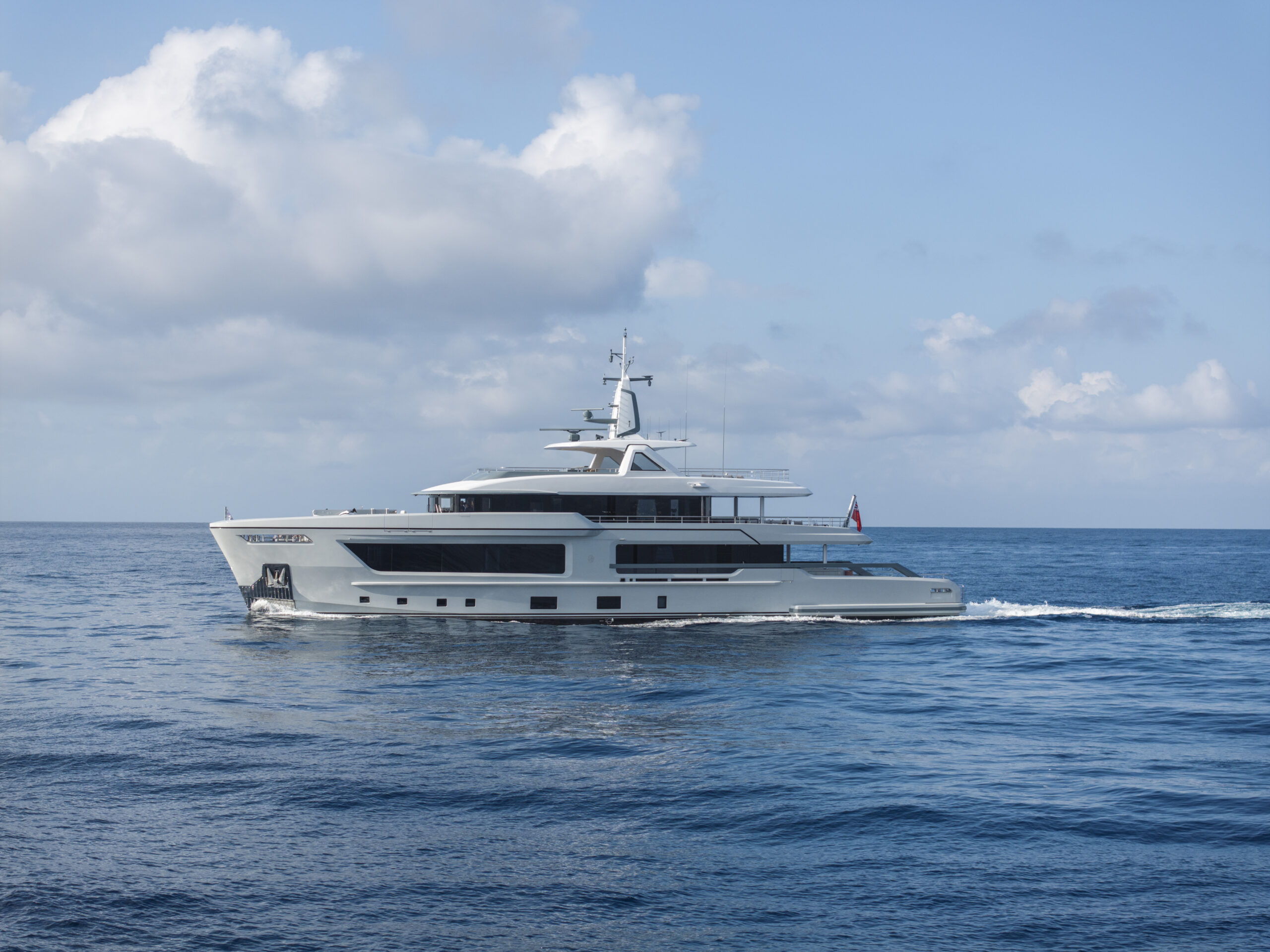

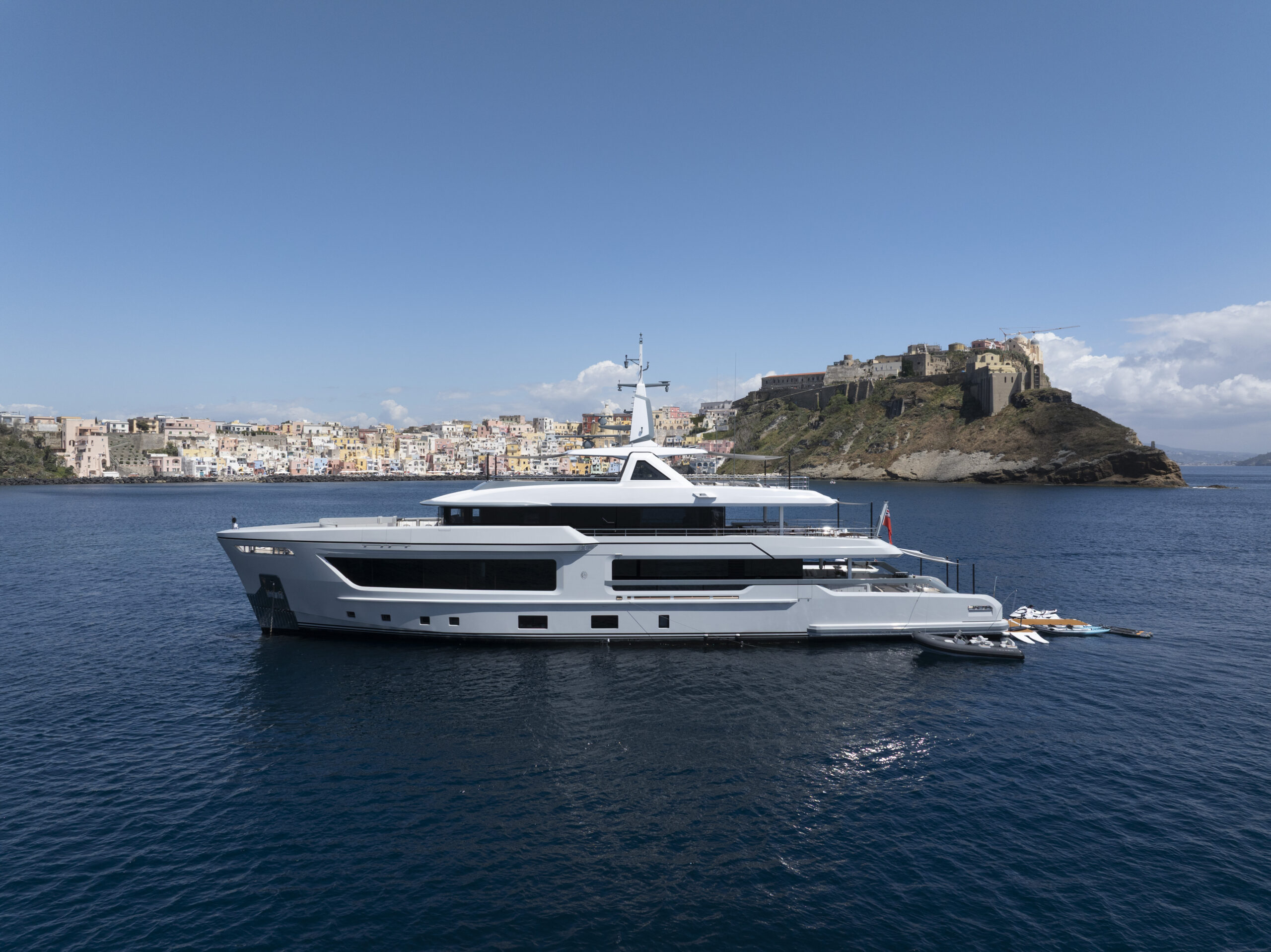

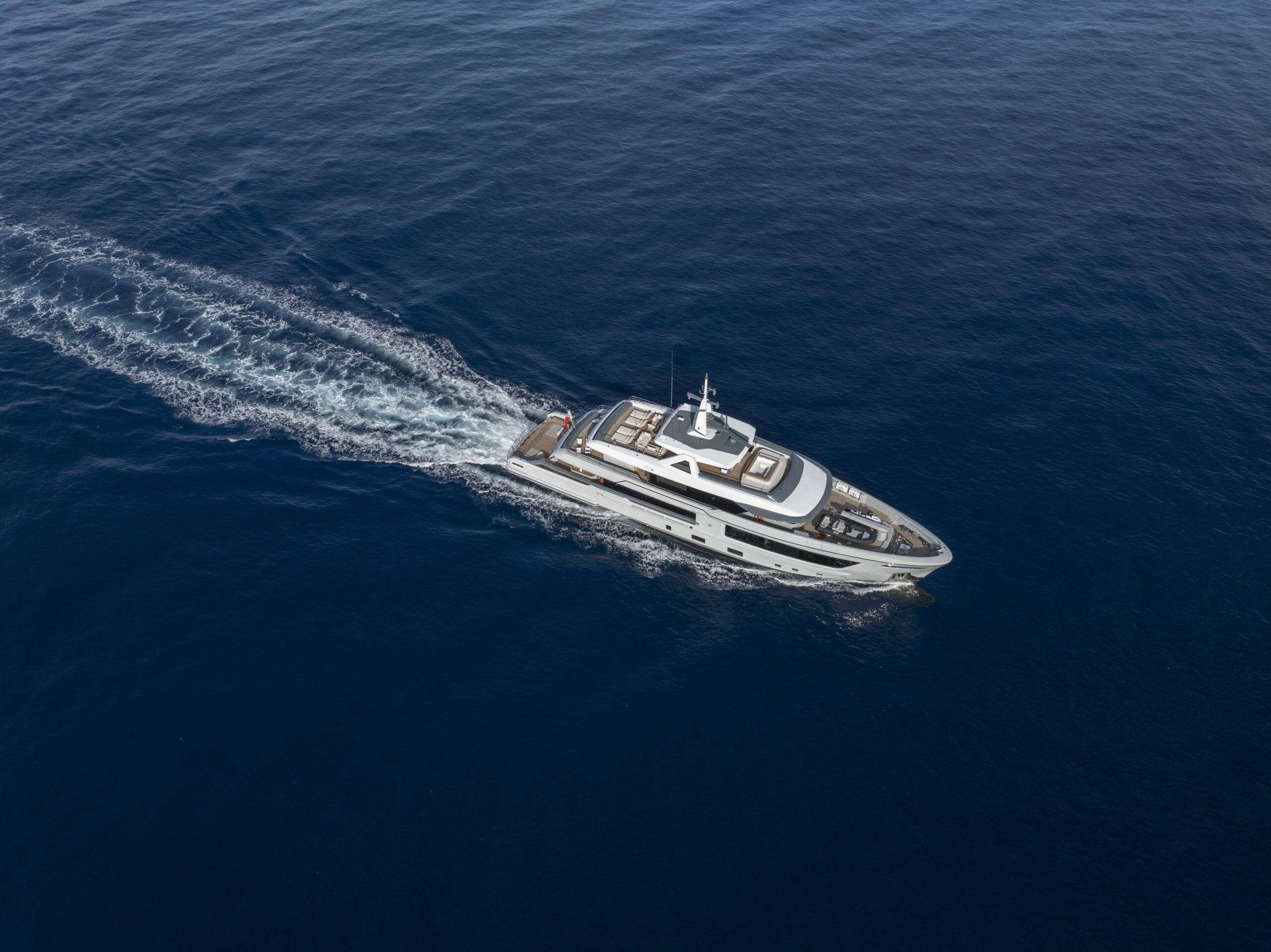

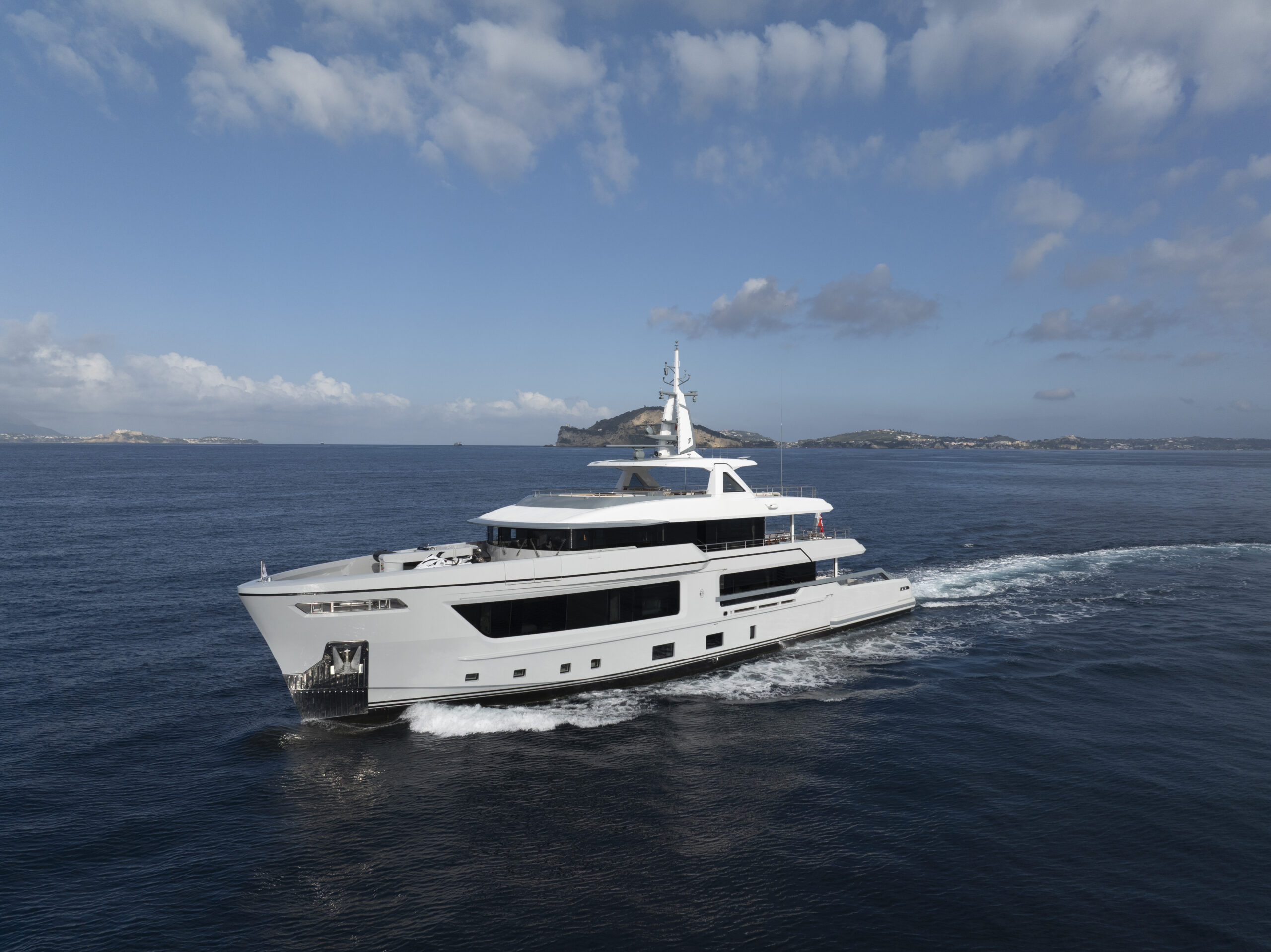

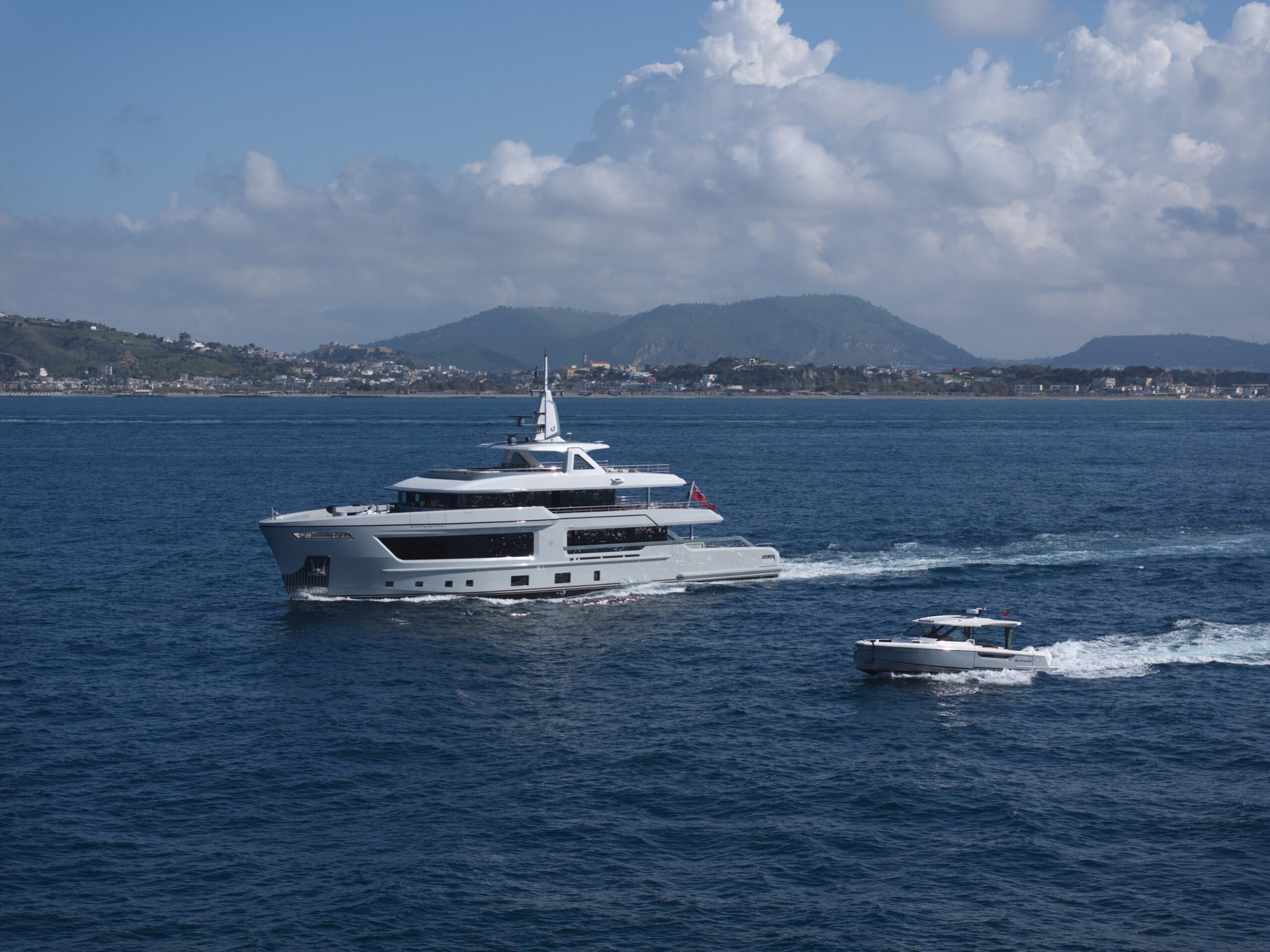

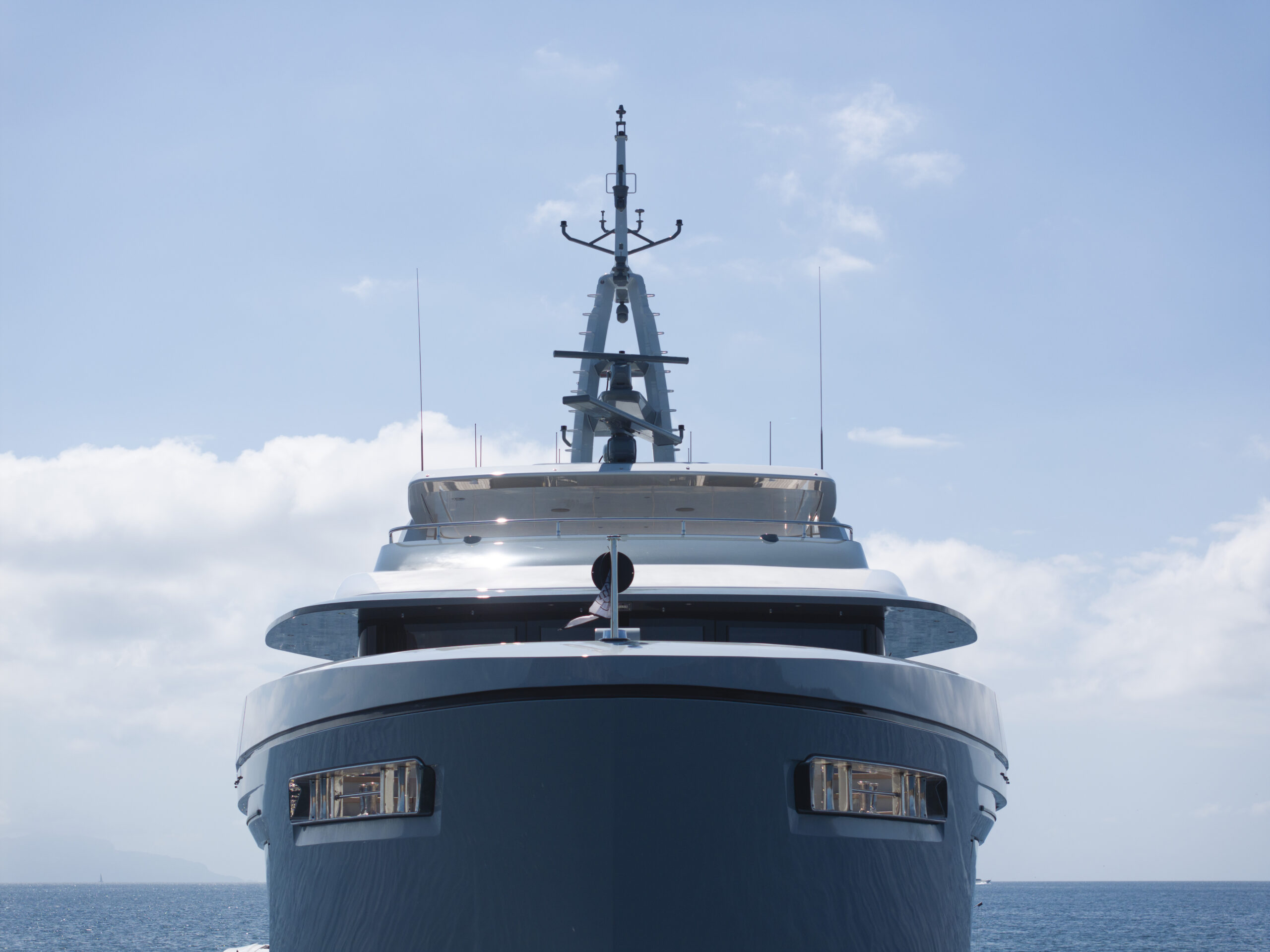

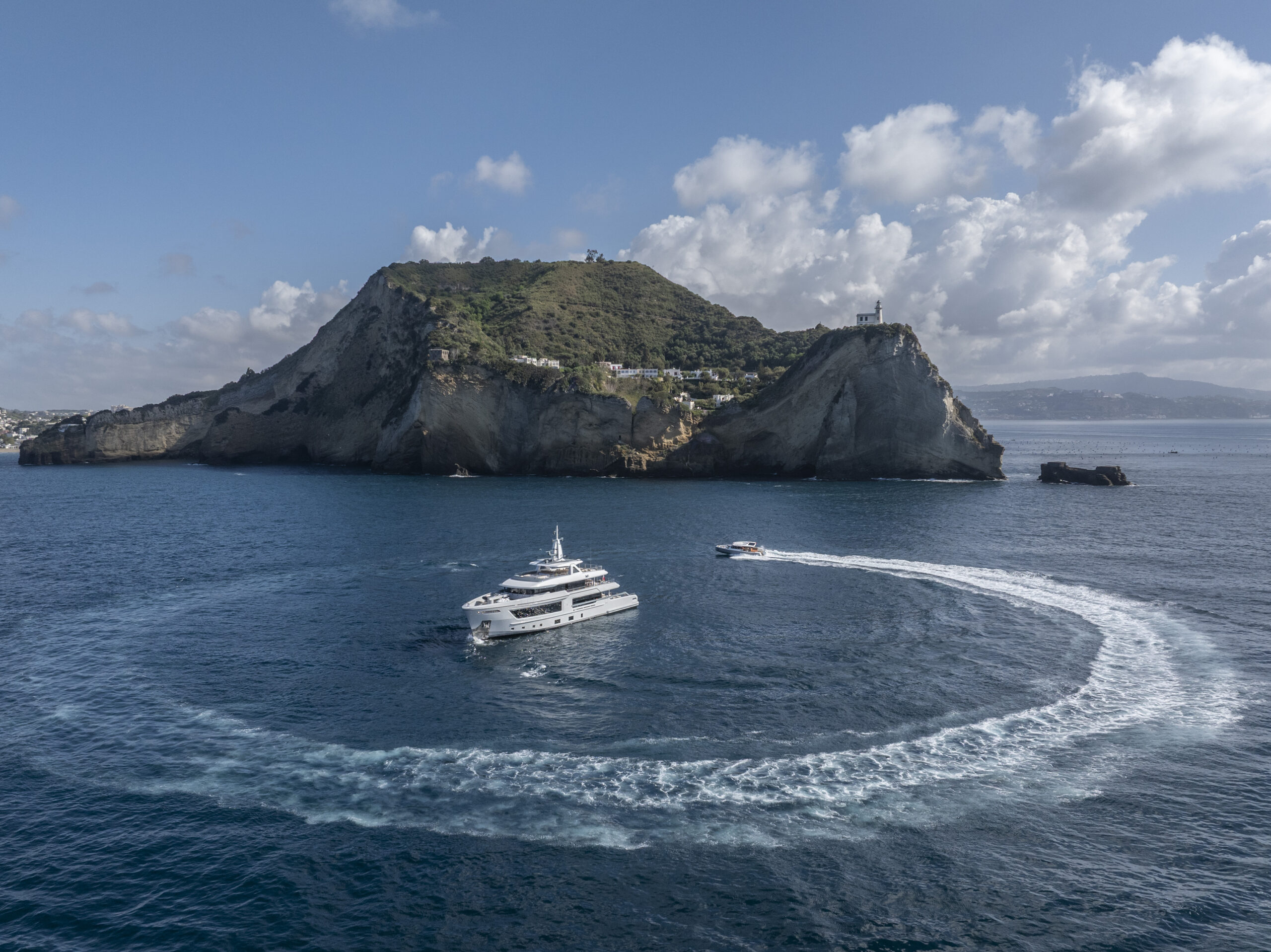

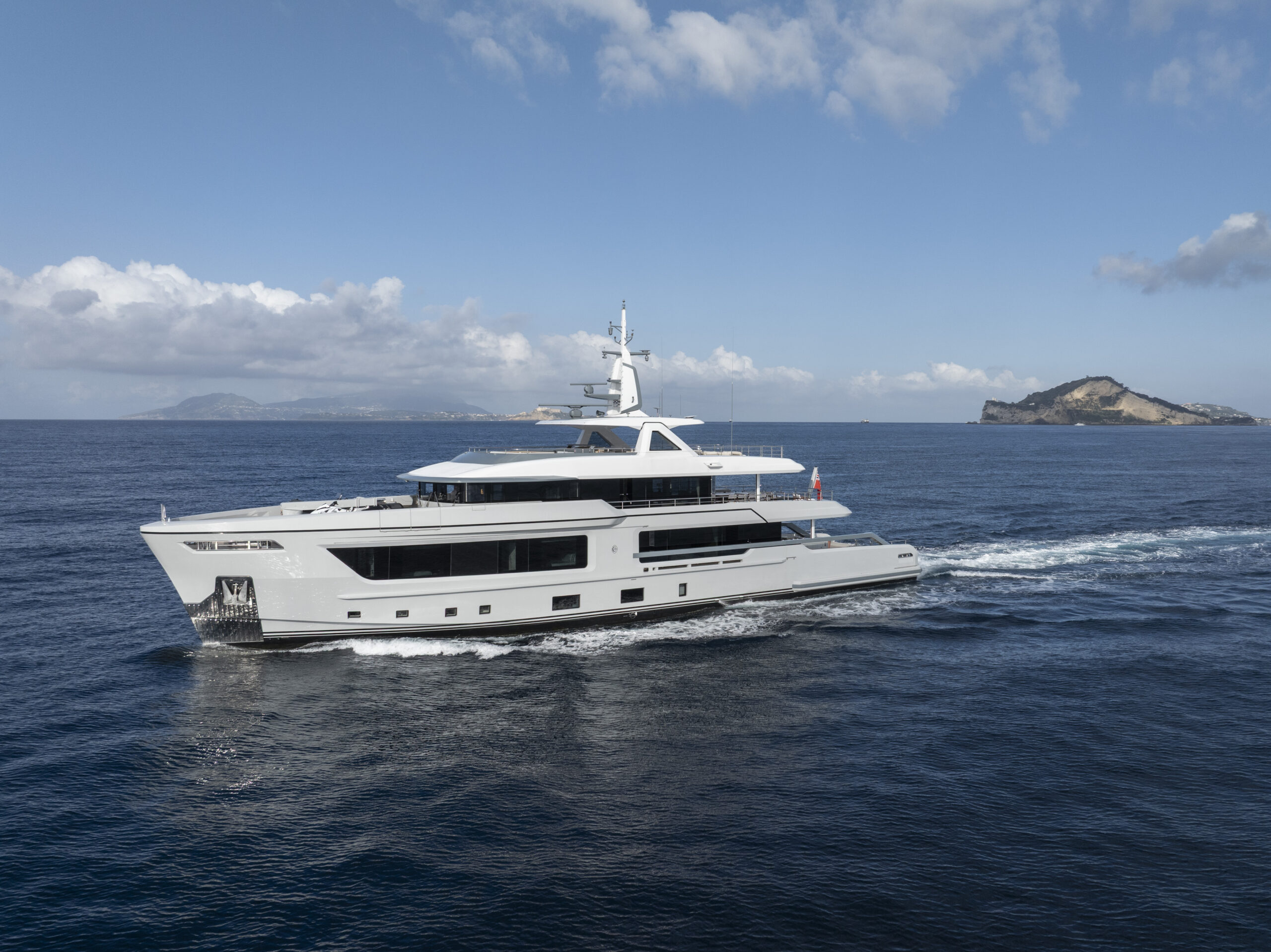

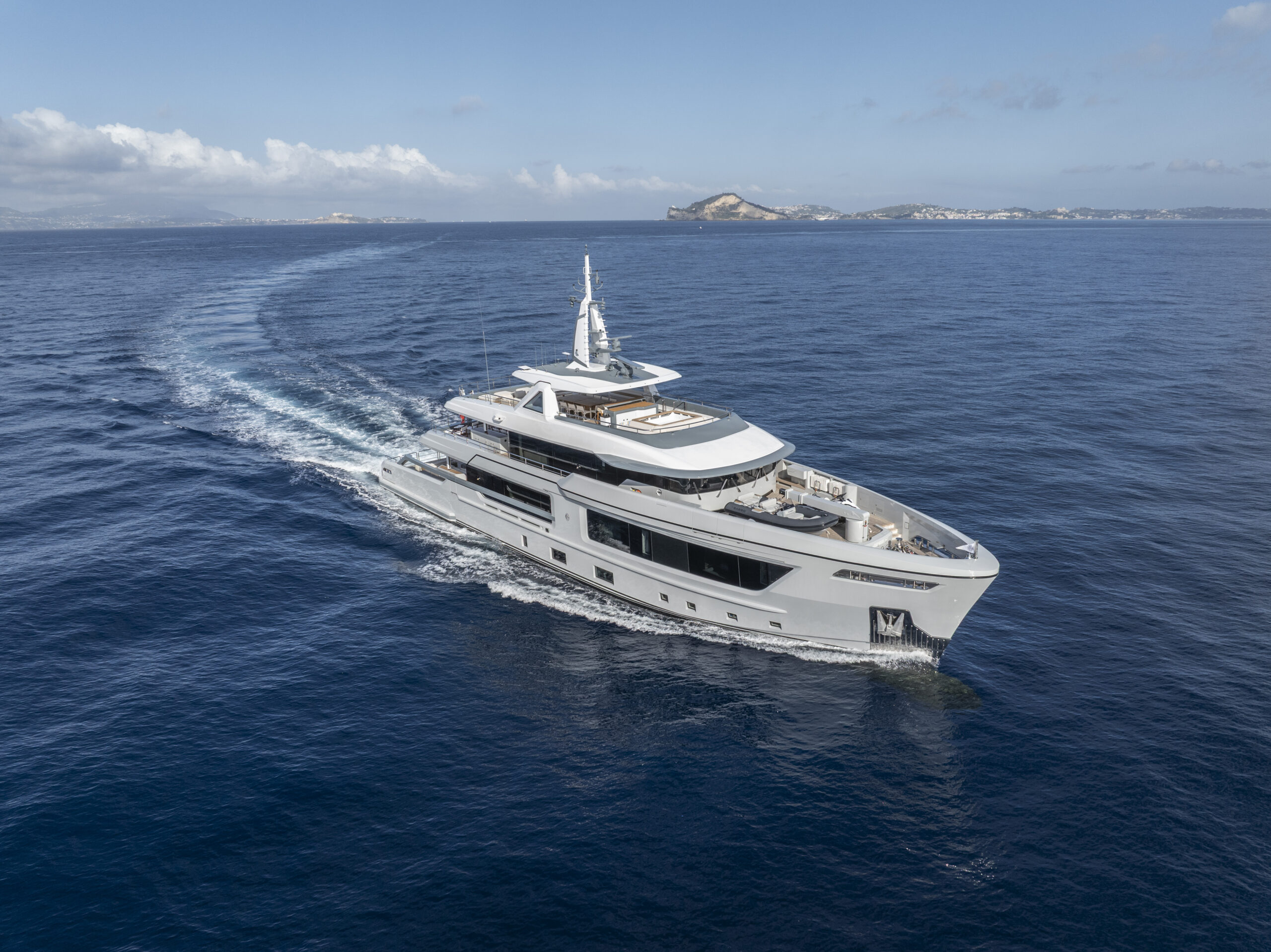

An imposing, bold 43-metre explorer yacht that strikes a distinctive pose.
Credits
Francesco Paszkowski
Exterior designMargherita Casprini
Interior designSergio Cutolo

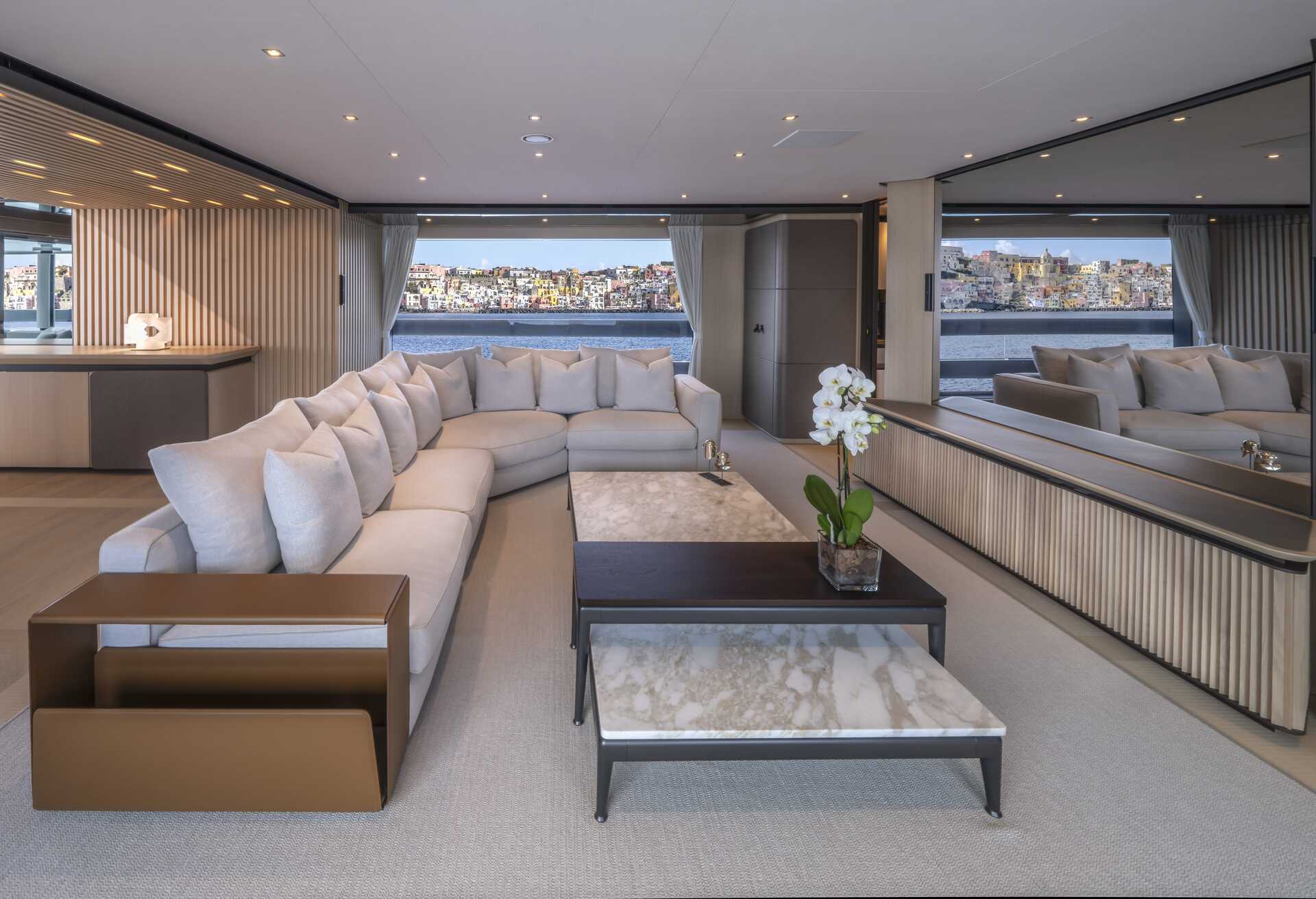

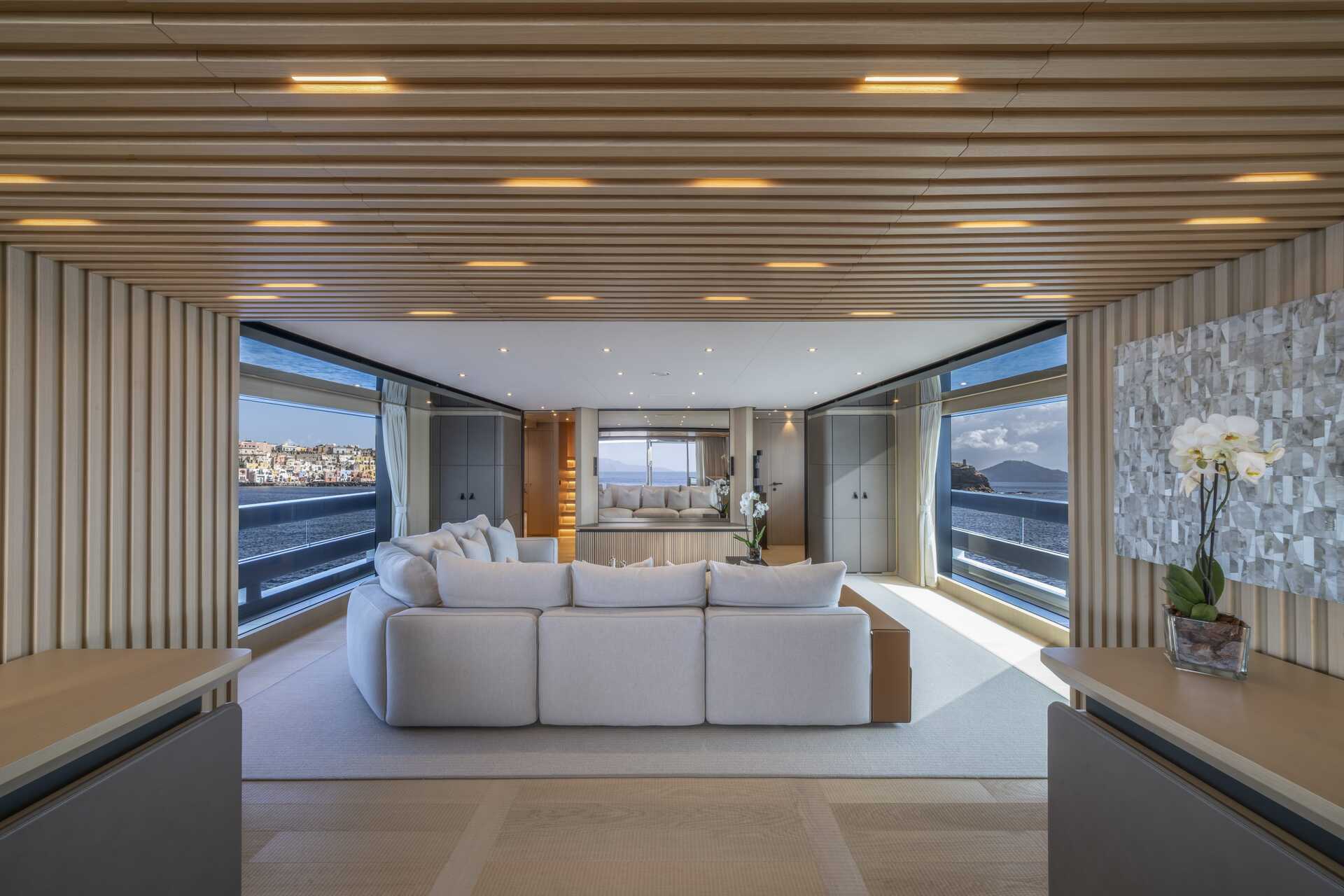

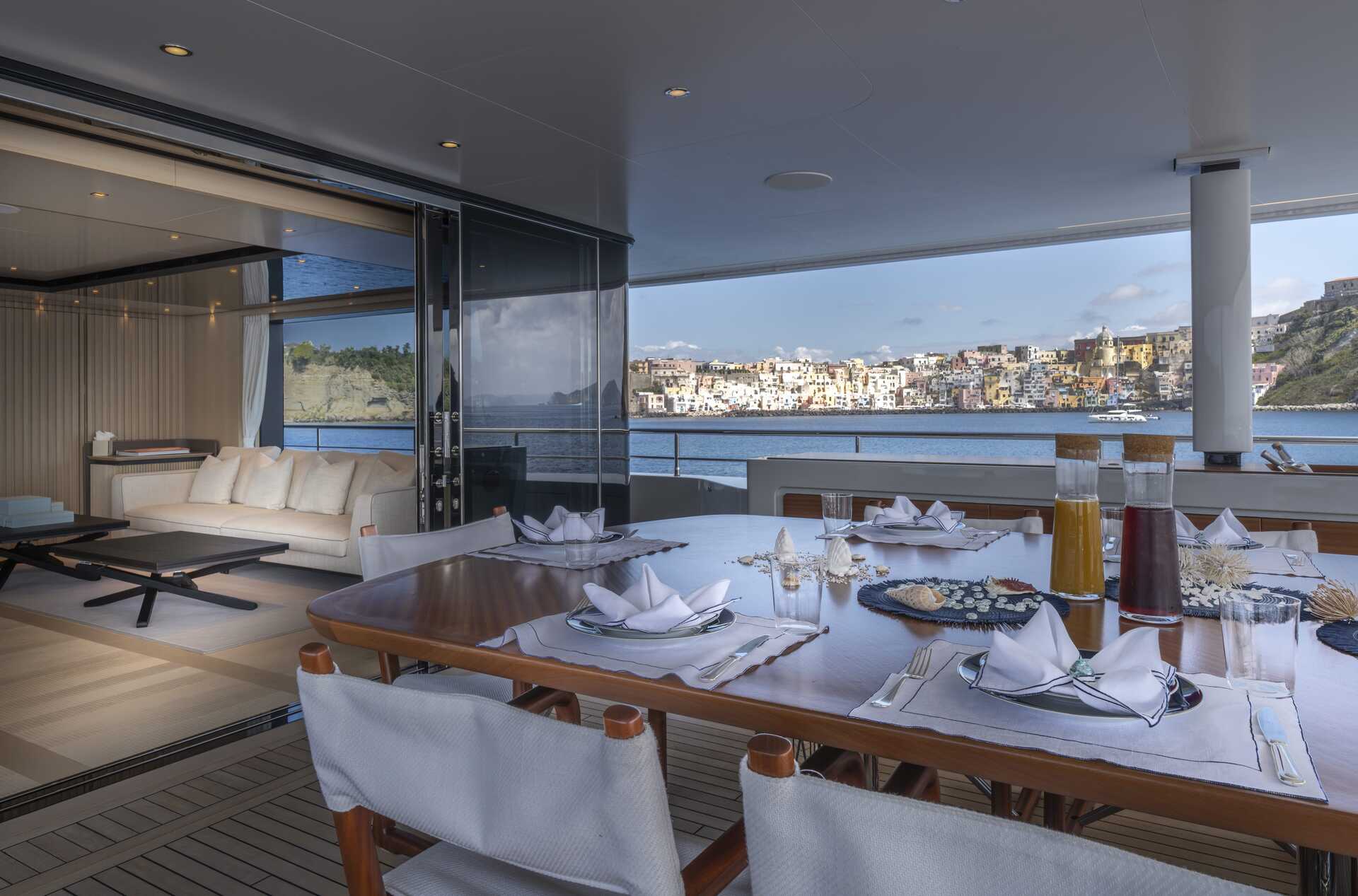

Naval ArchitectureAmong EXP 43’s remarkable features, deserve to be mentioned an extremely large cockpit and the large glazed surfaces on both Main and Upper Deck salon that best show off the indoor/outdoor ethos of this project.

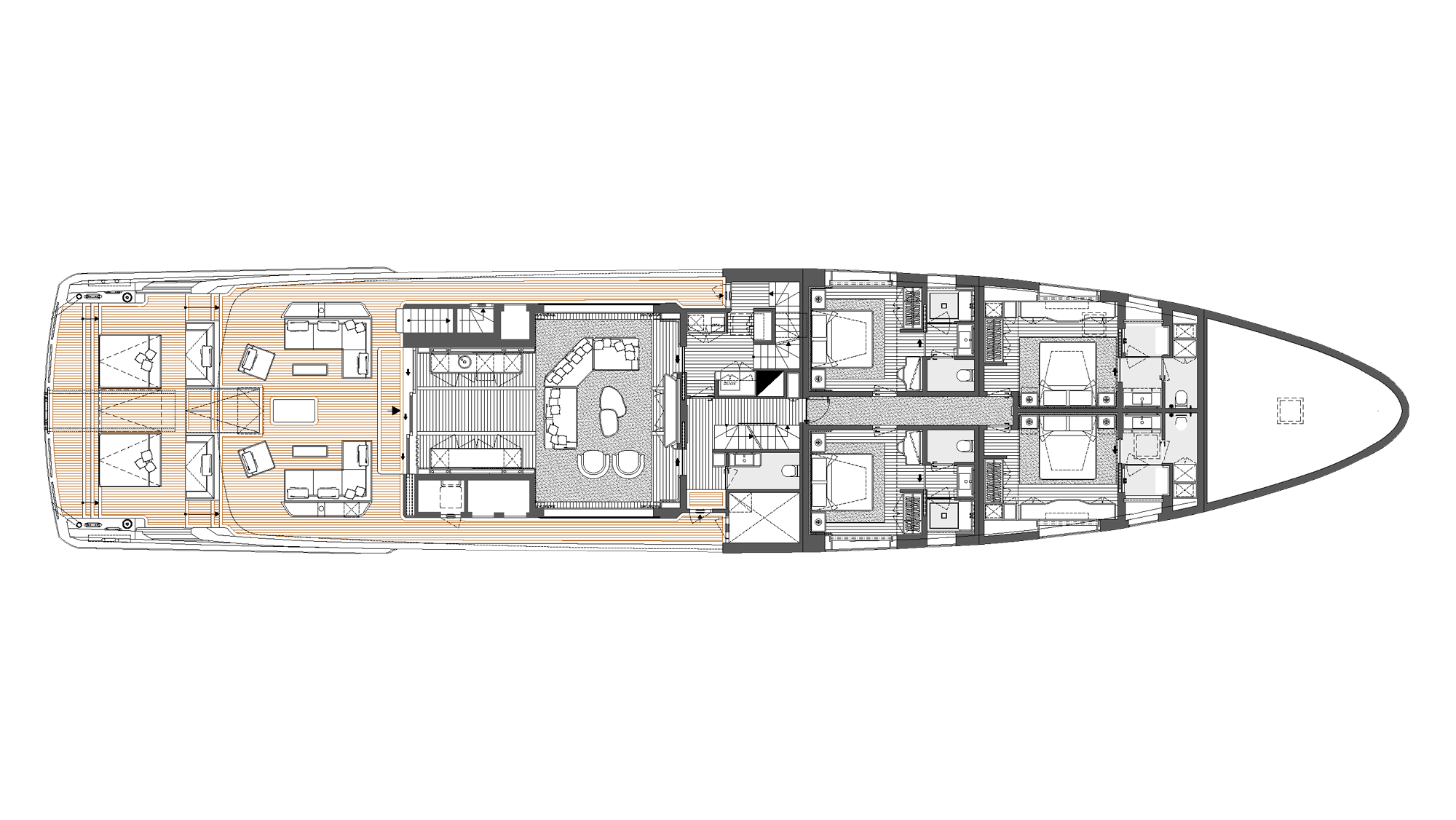

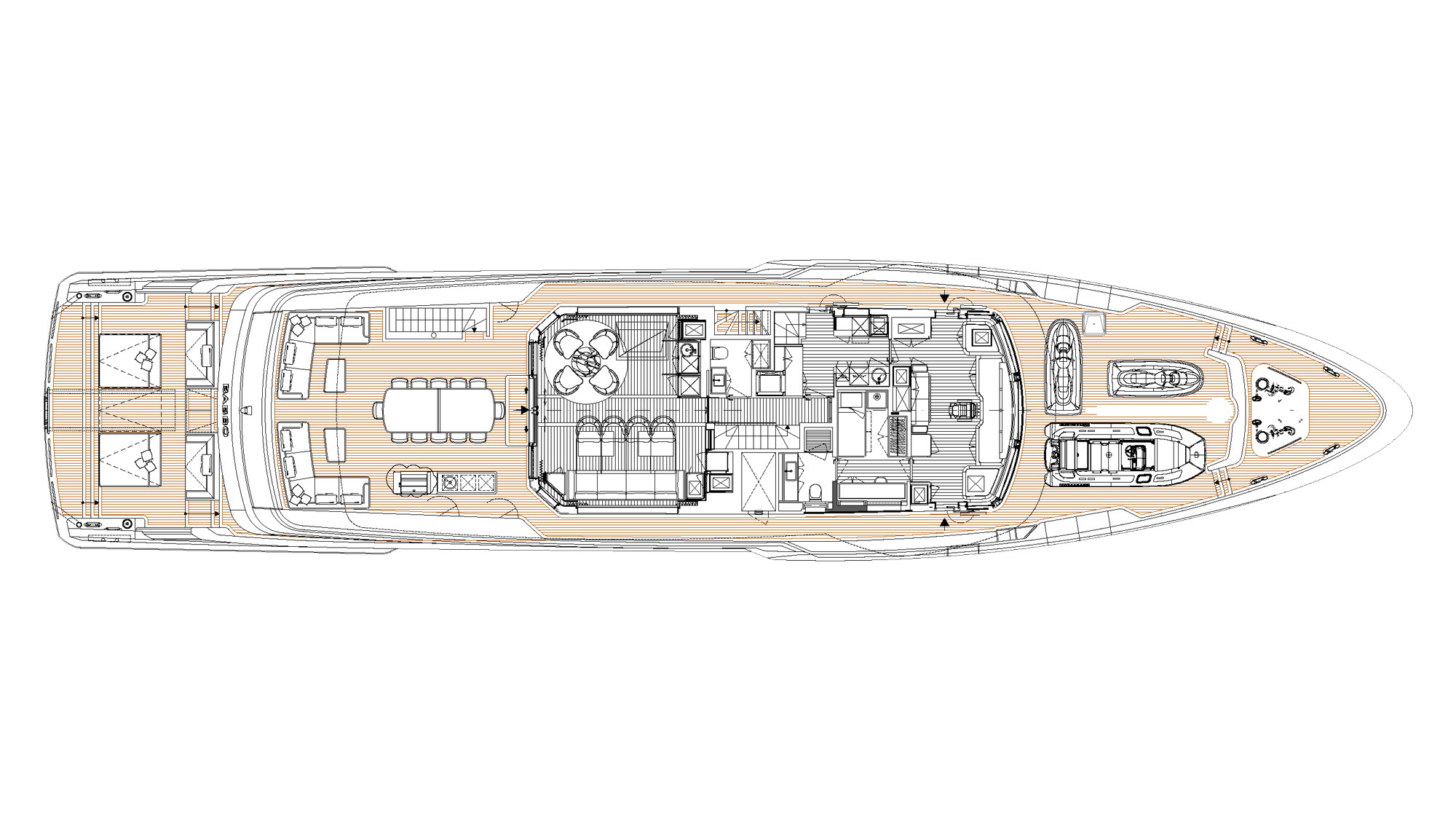

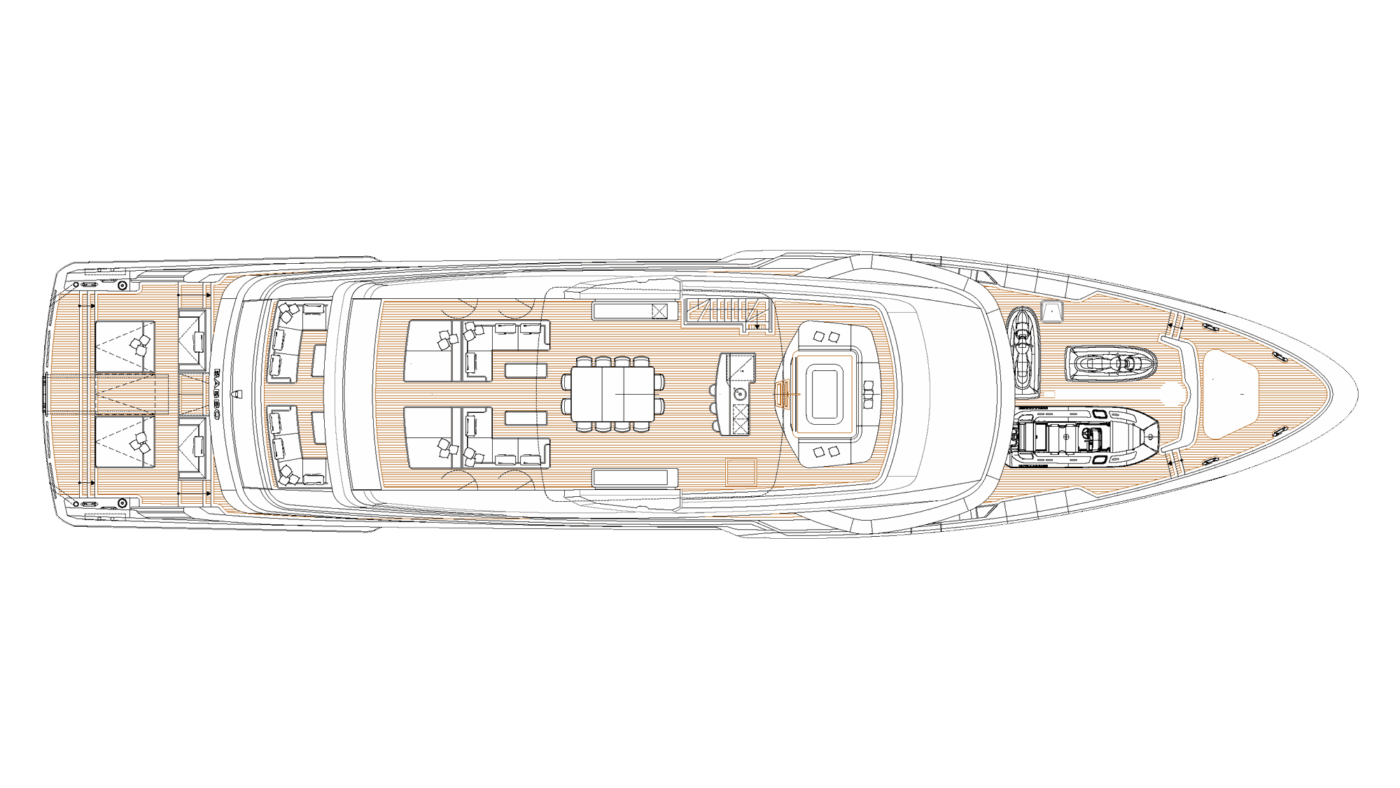

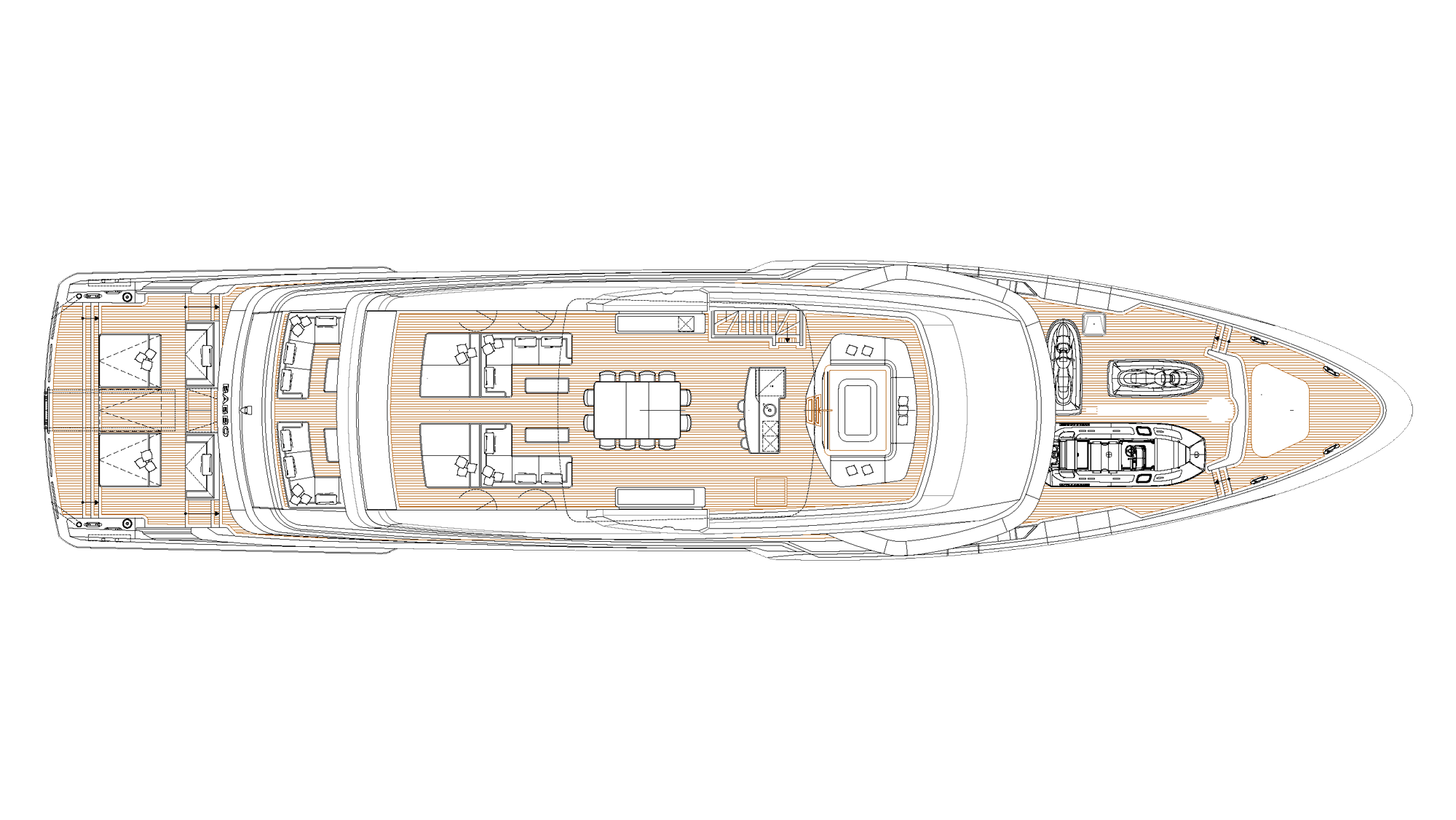

General plan
Specifications
Length overall
42,6 m
139.7 ft
Waterline length
40,0 m
131.2 ft
Max beam
8,60 m
28.2 ft
Depth, amidship
4,70 m
15.4 ft
Draught, full load under the keel
2,62 t
8.60 t
Displacement, full load
440 t
Classification
C ✠ HULL • MACH Ych Unrestricted Navigation in compliance with REG CODE
Diesel oil
60˙000 lt
15˙850 gal
Fresh water
10˙000 lt
2˙642 gal
Black water
2˙300 lt
607 gal
Grey water
3˙000 lt
792 gal
Clean oil / Dirty oil
500 / 500 lt
132 / 132gal
Bilge
500 lt
132 gal

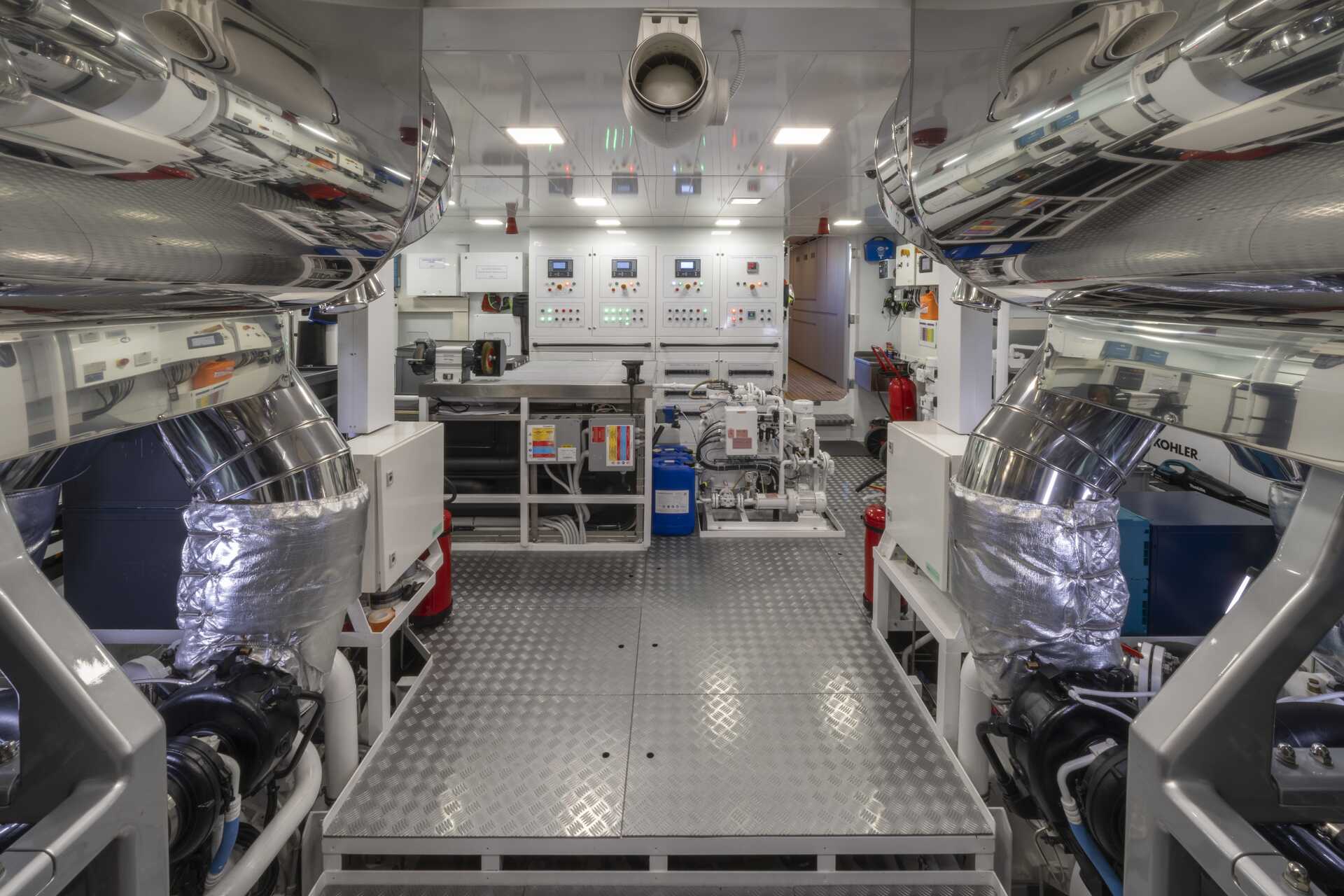

Engines
2xCATERPILLAR C32 ACERT 2x746kW @1600-1800 rpm - with SCR
Gearbox
2 x REINTJES gear ratio 3,955:1
Generator
2x80 kW
Bow thruster
75 kW Electrical
Stabilizer fins
2 pairs, Electrical, Zero Speed
Maximum
14 Knots
Range
5˙000 nm @ 10 Knots
Passengers
12 (+2 Pullman Bed) / 6 Cabine
Crew
9 / 5 Cabine

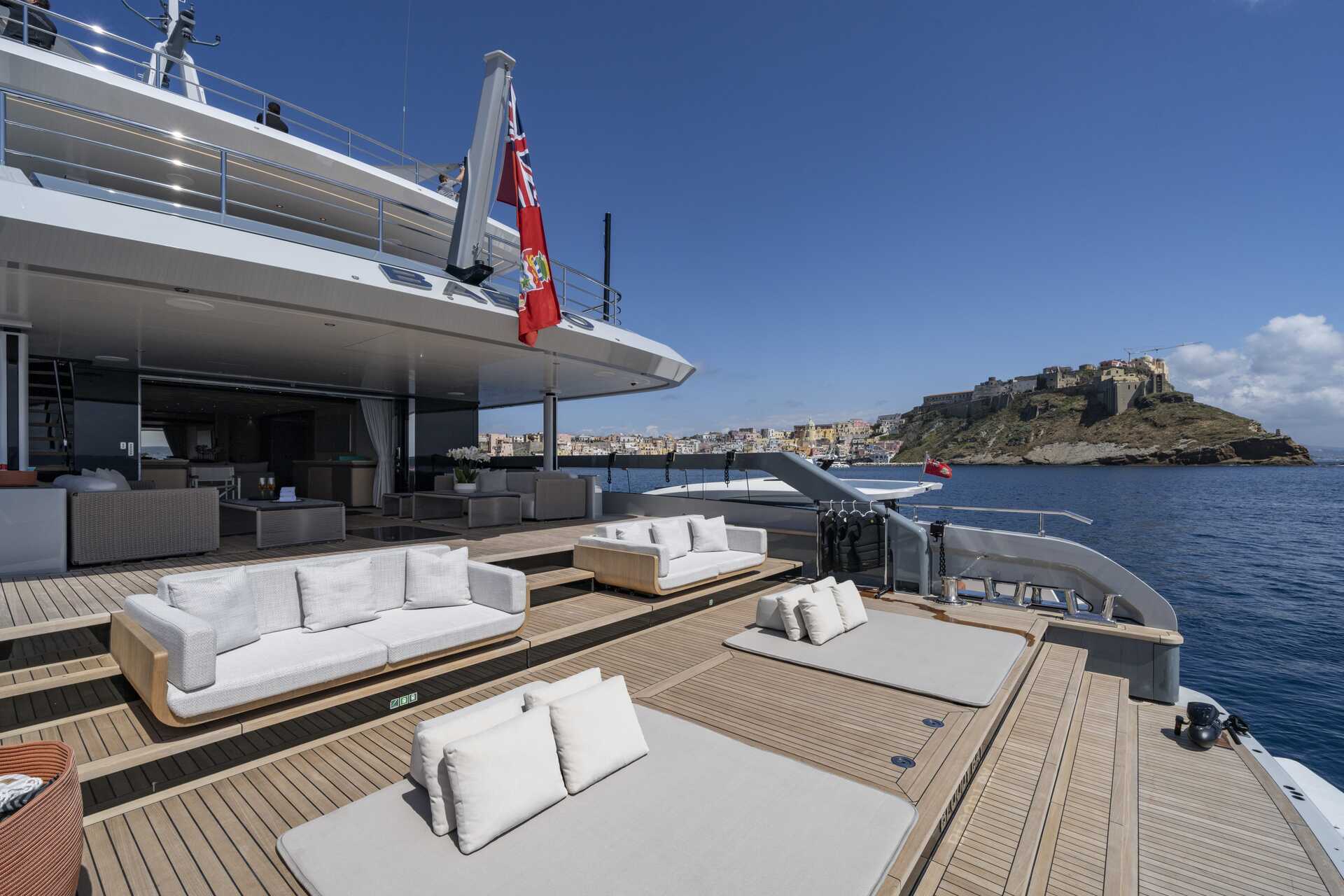

Exteriors

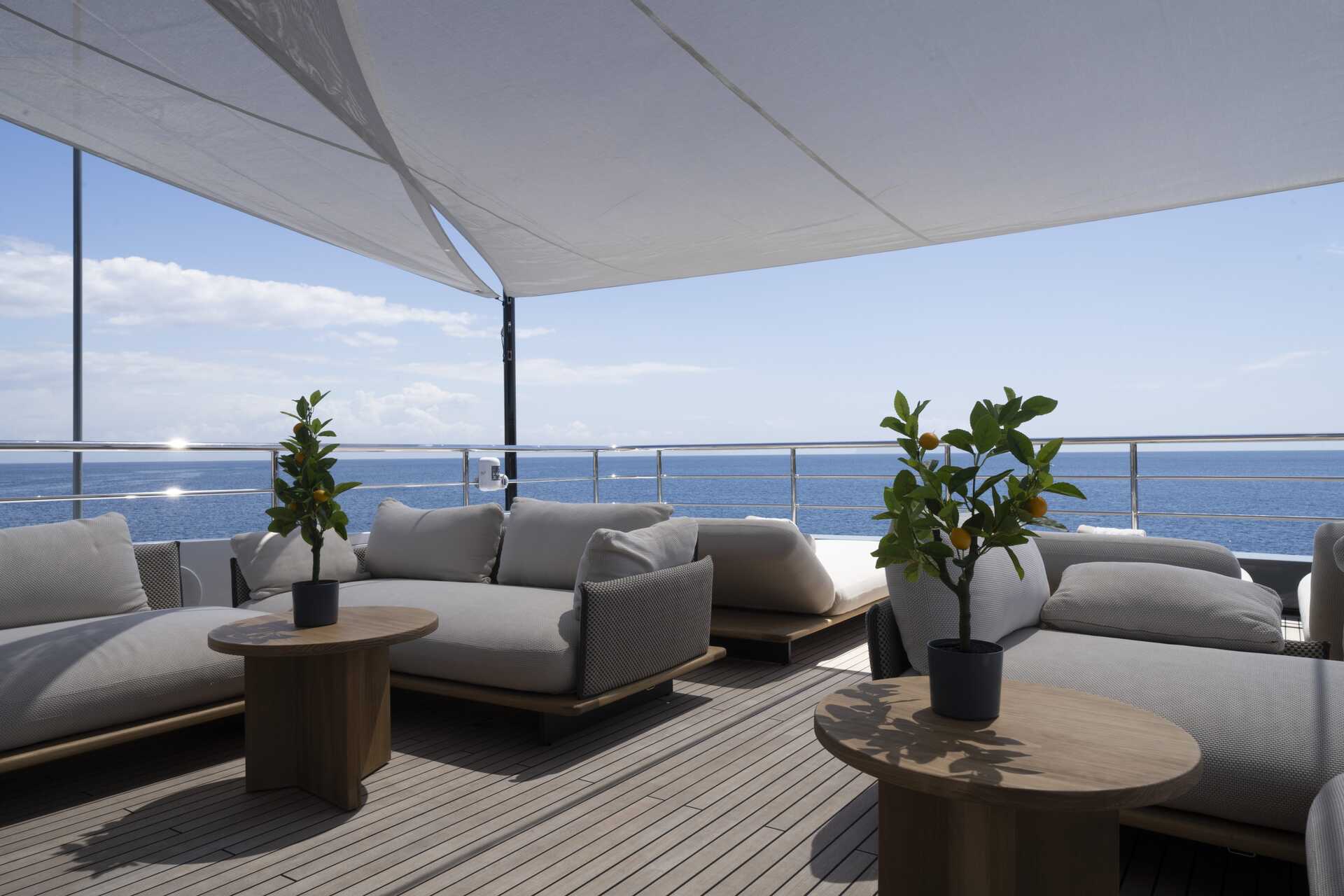

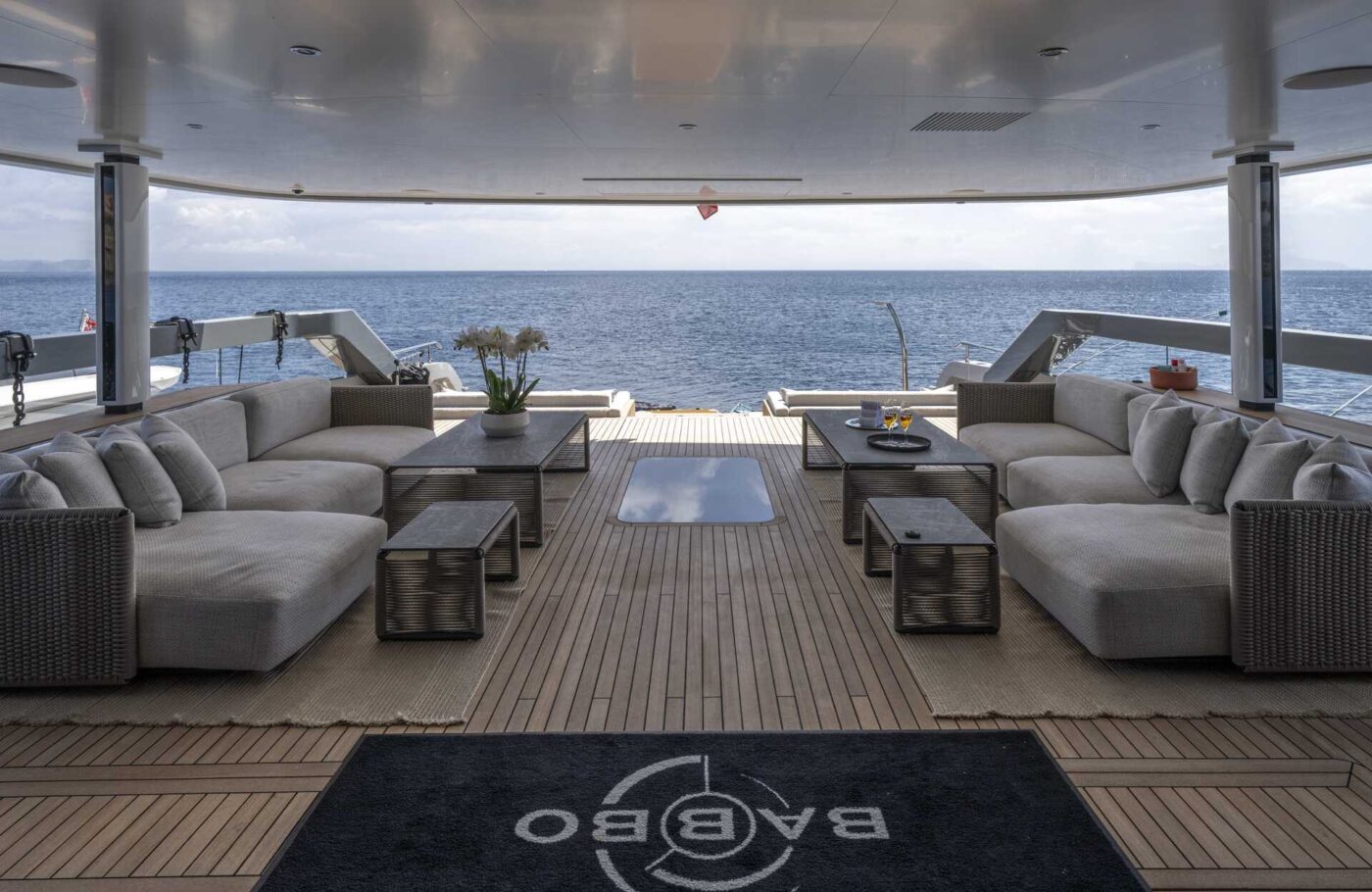

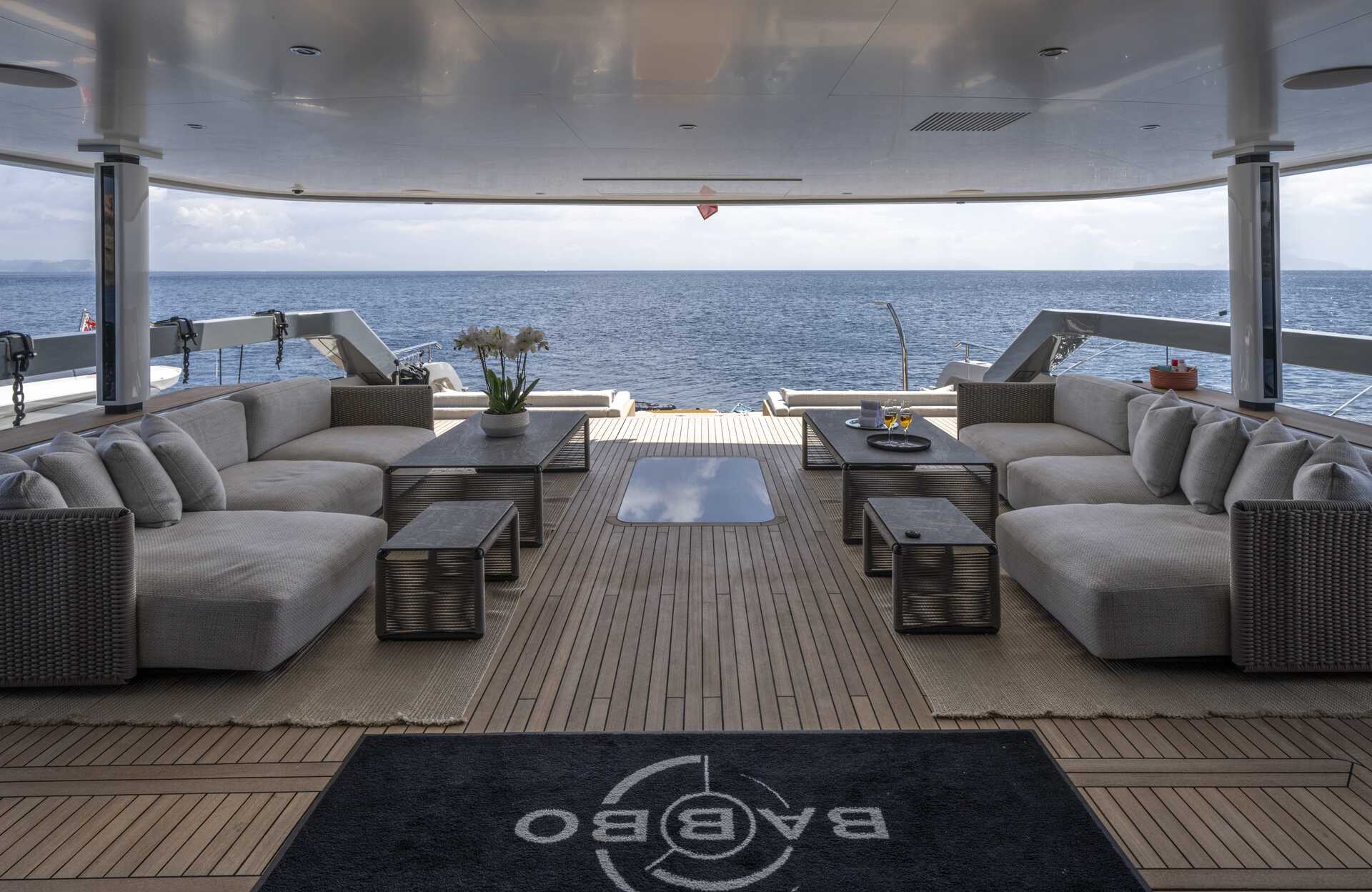

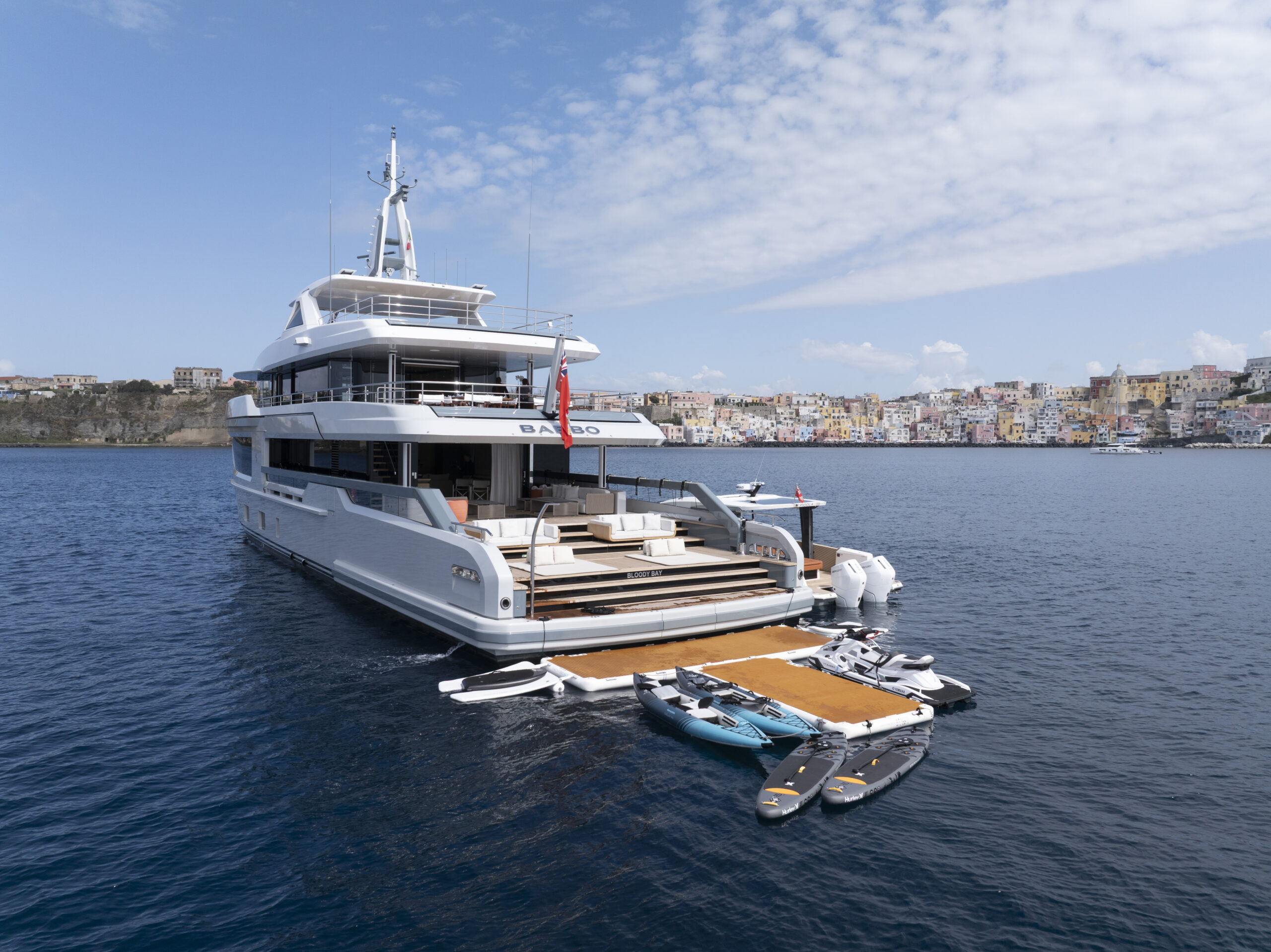

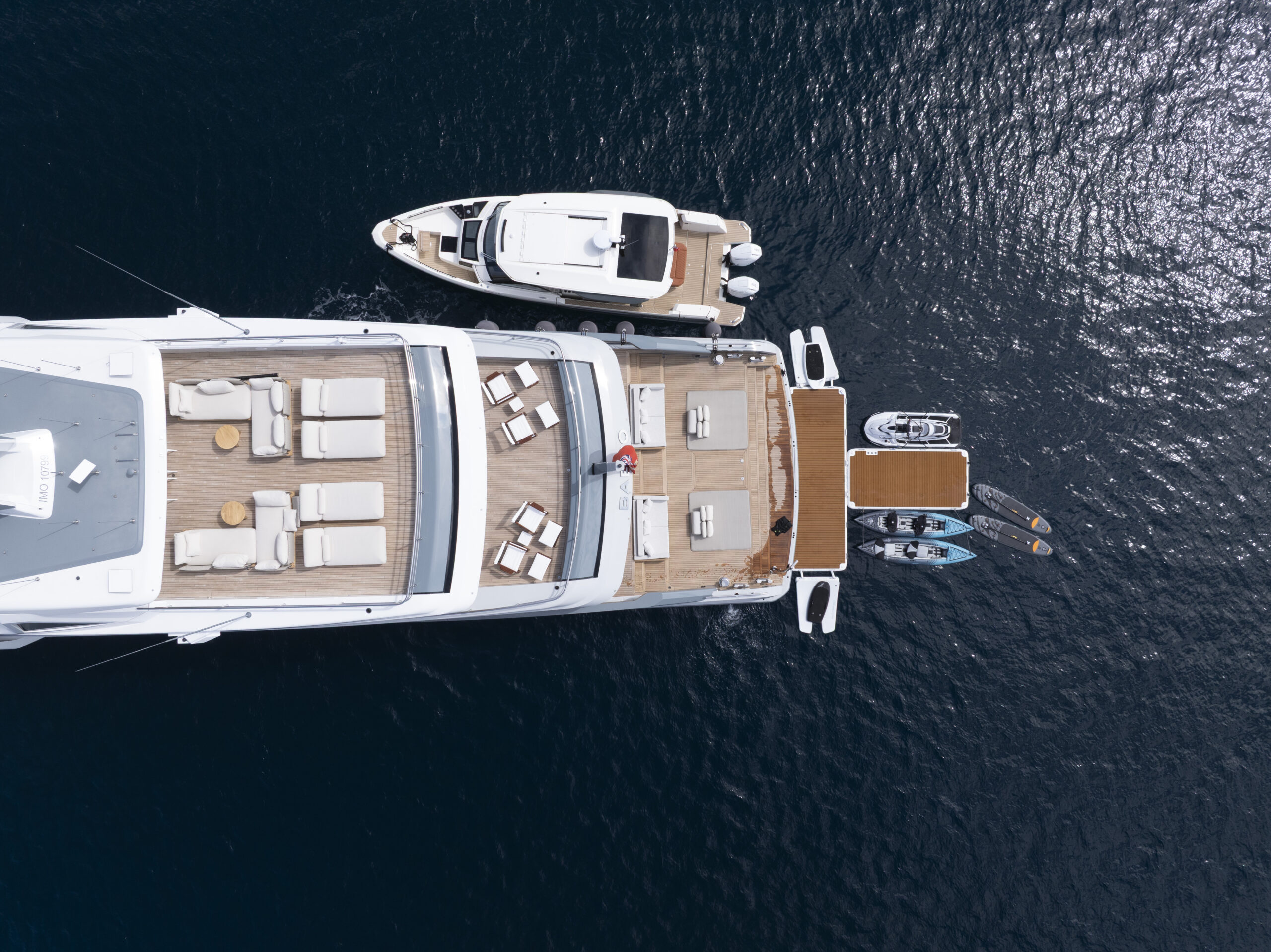

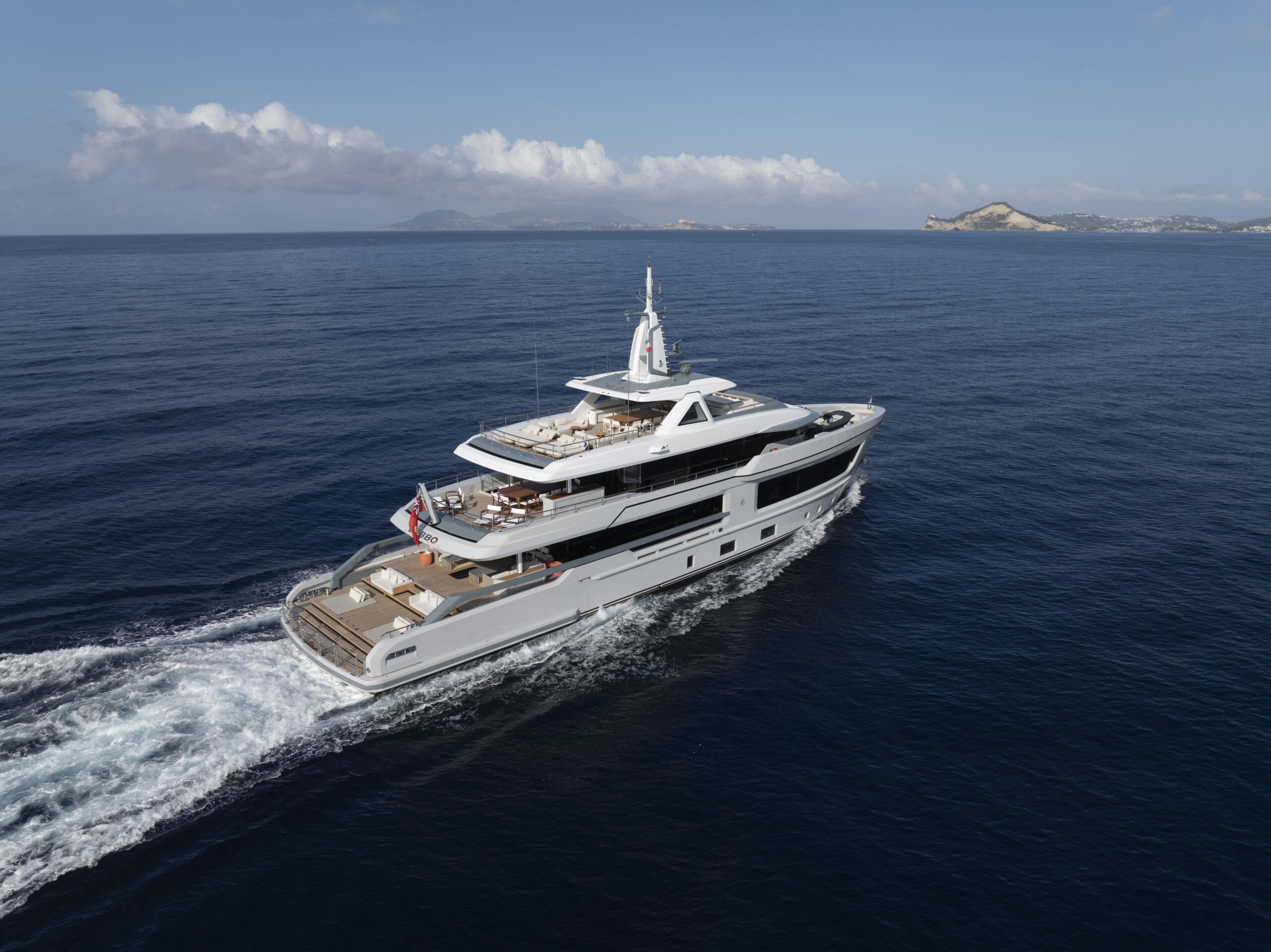

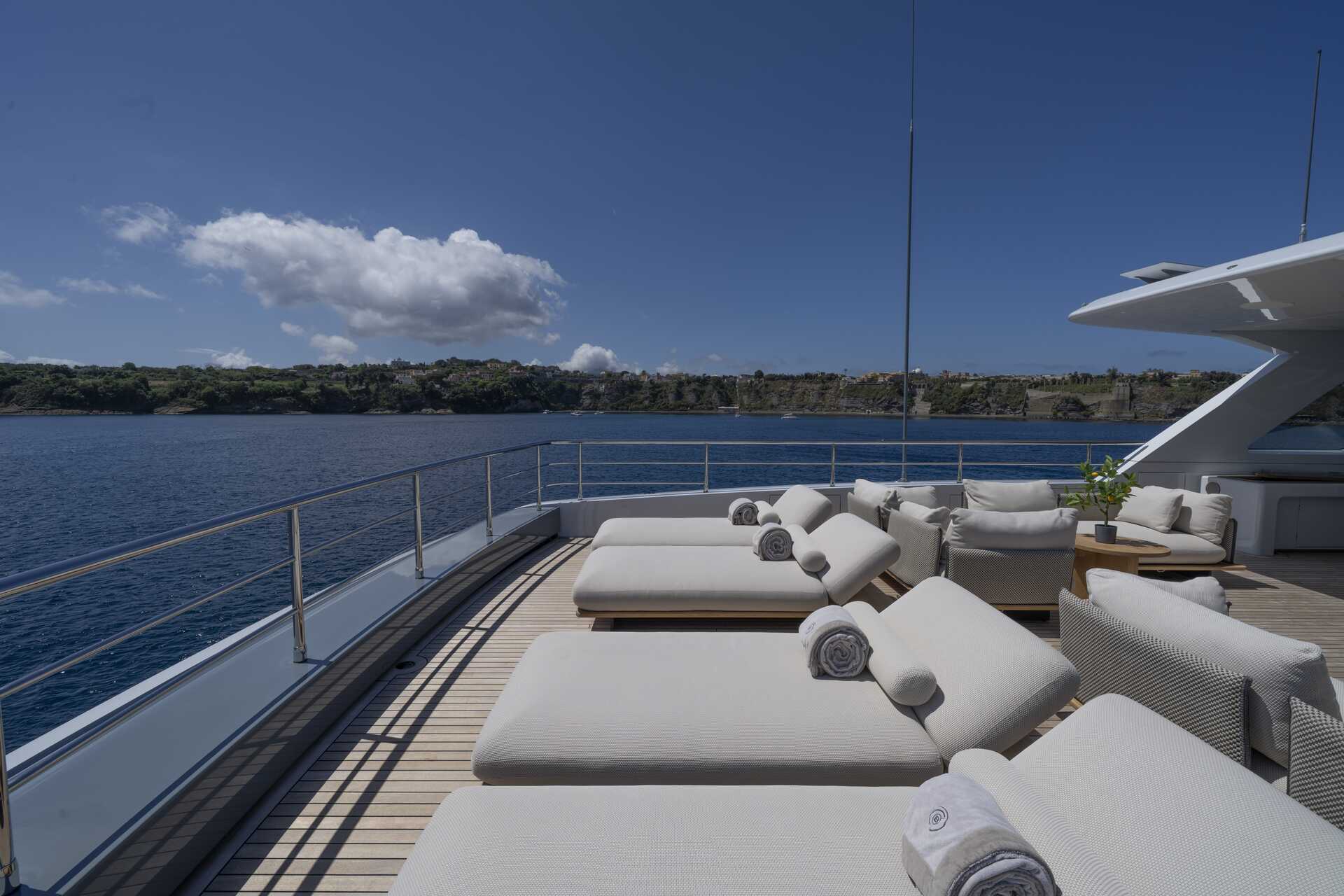

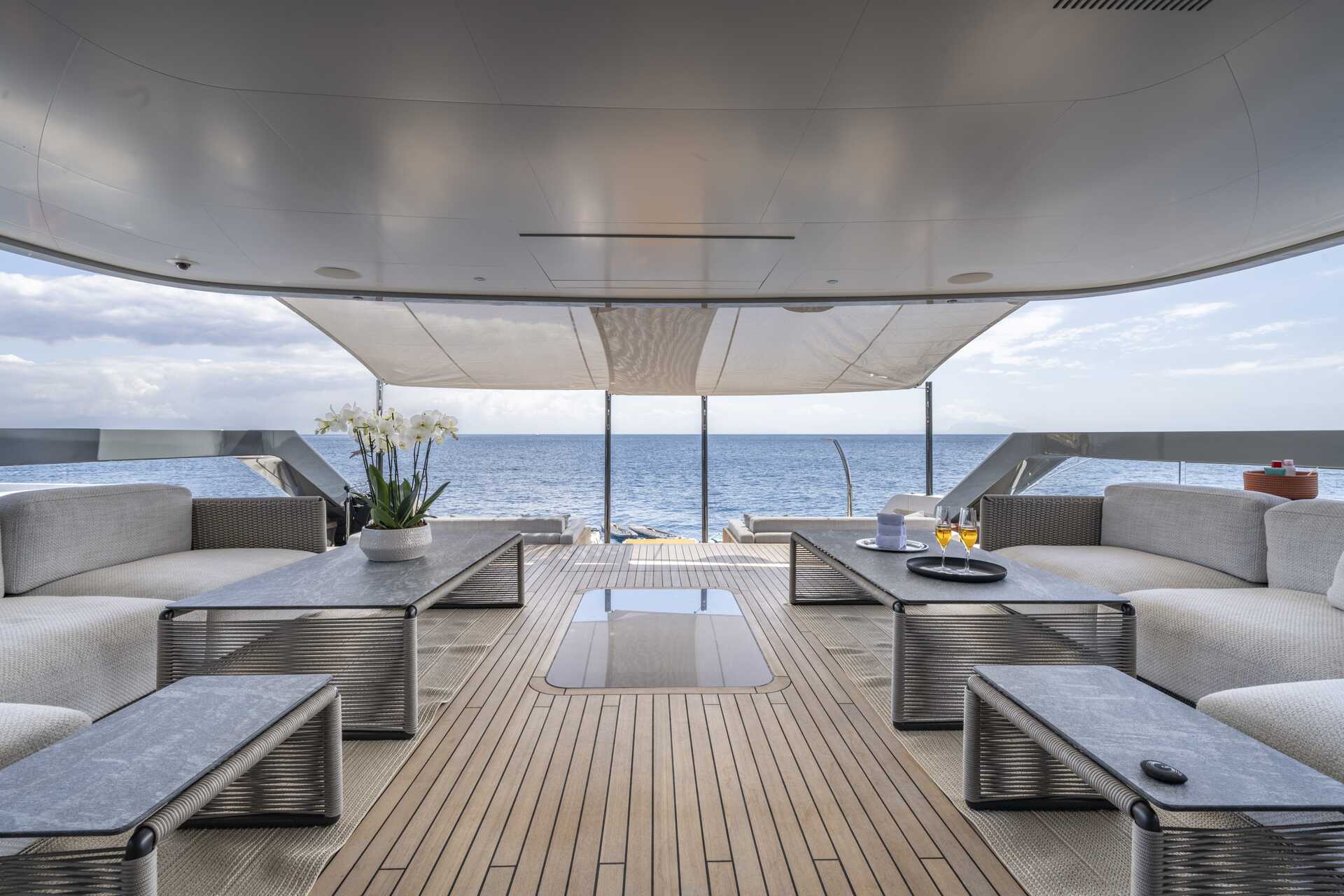

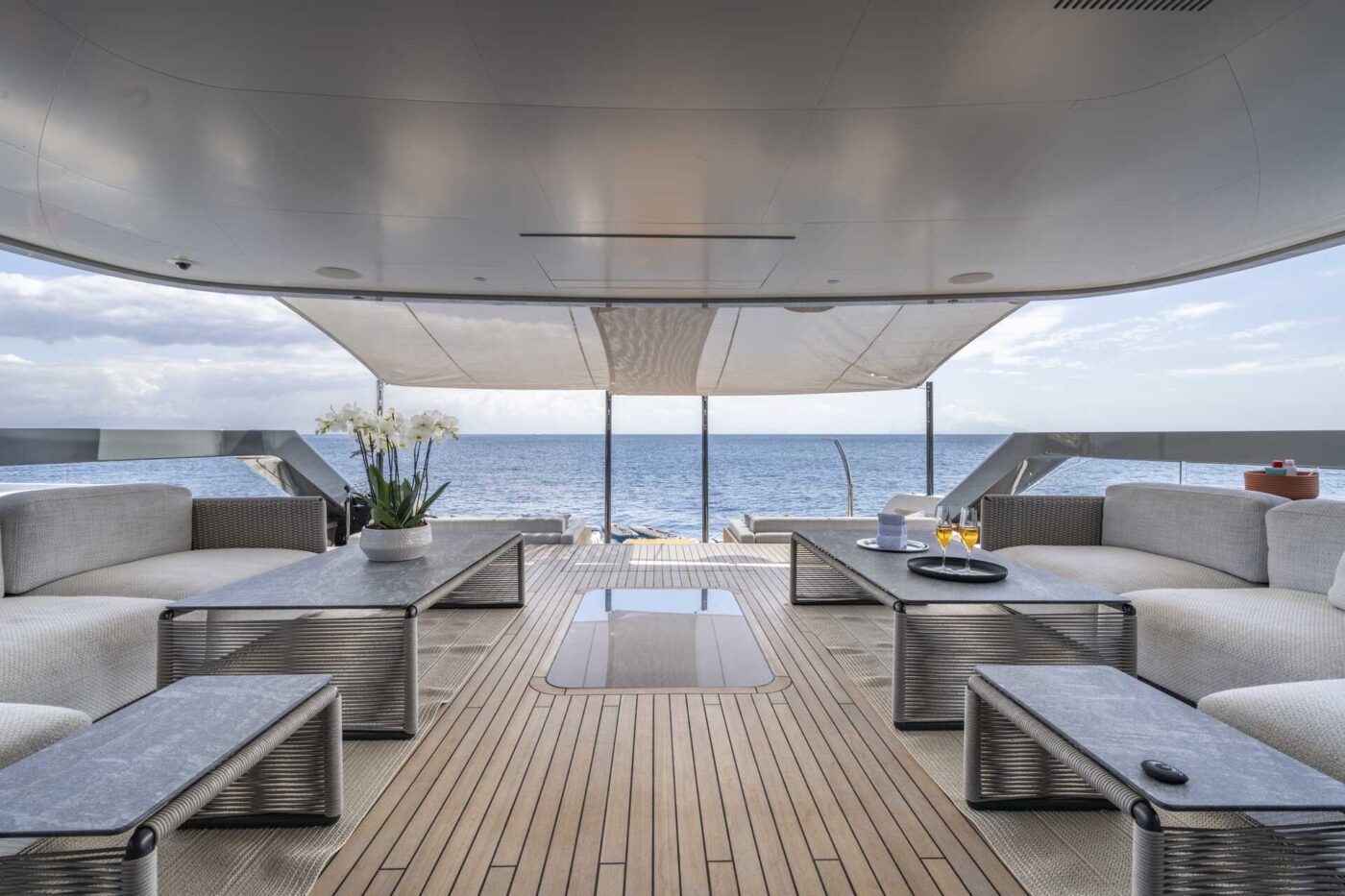

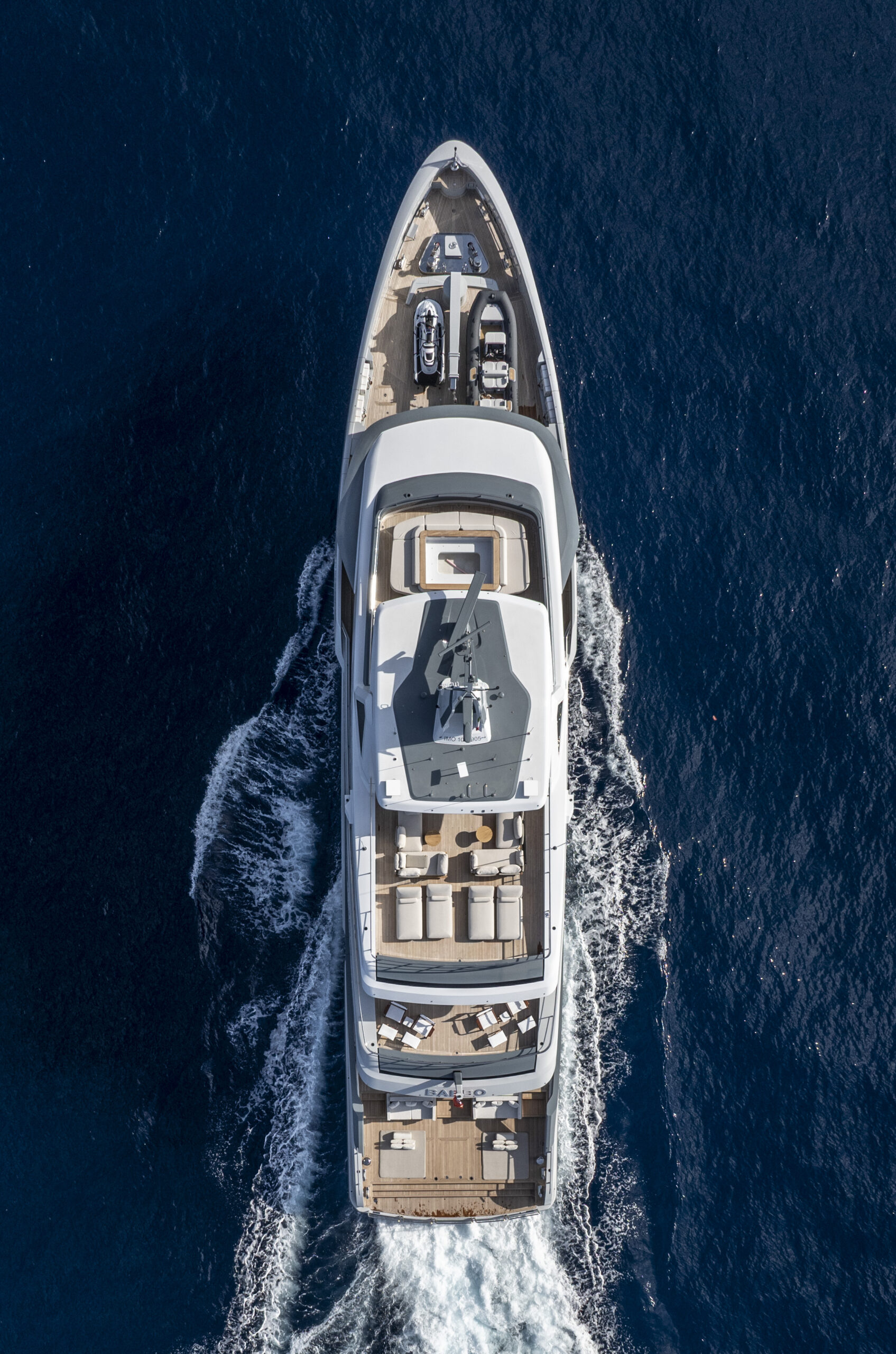

Grand exterior deck spaces so guests can relax in a number of outdoor spots designed to offer maximum privacy while creating the feeling of openness and uninterrupted living spaces.

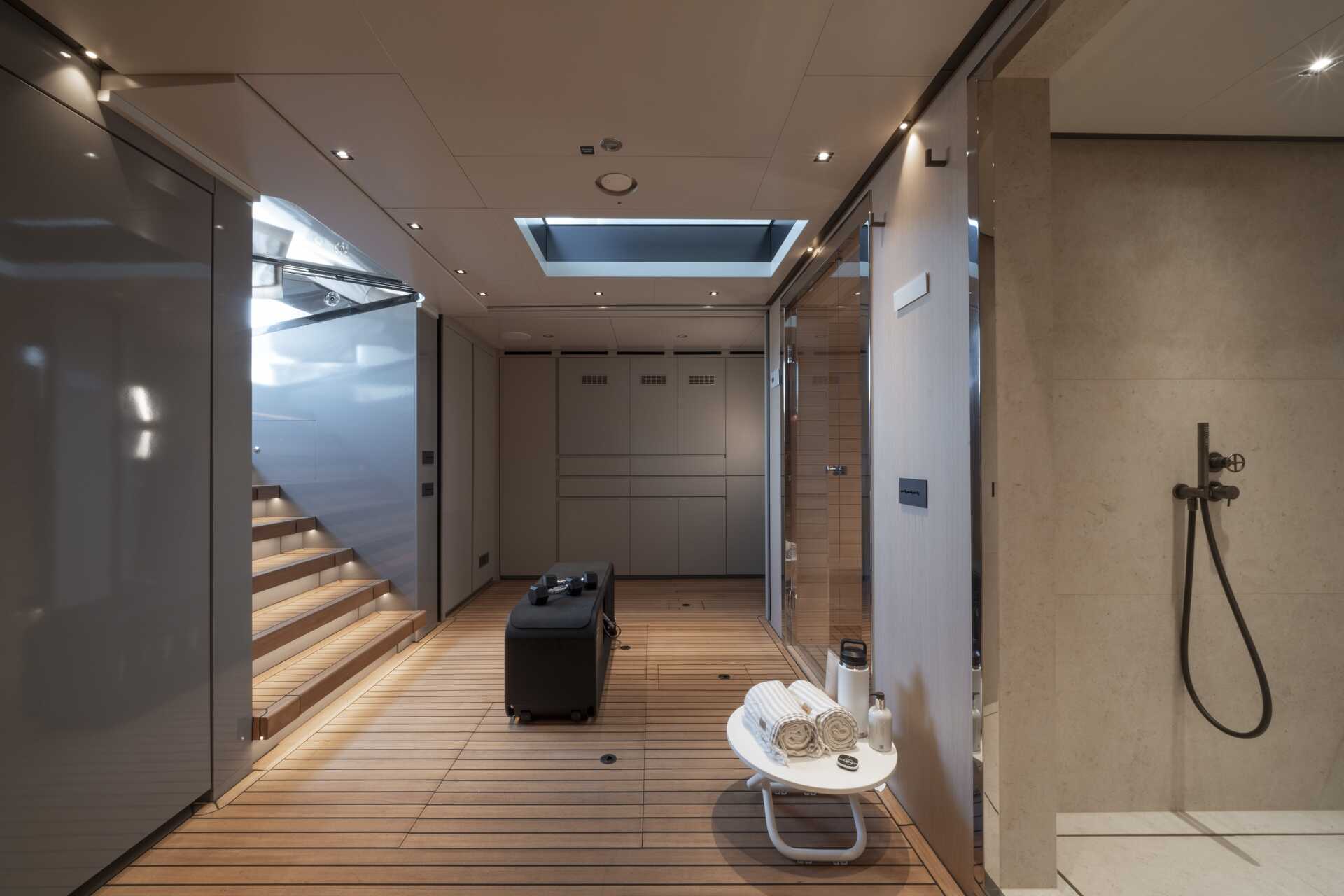

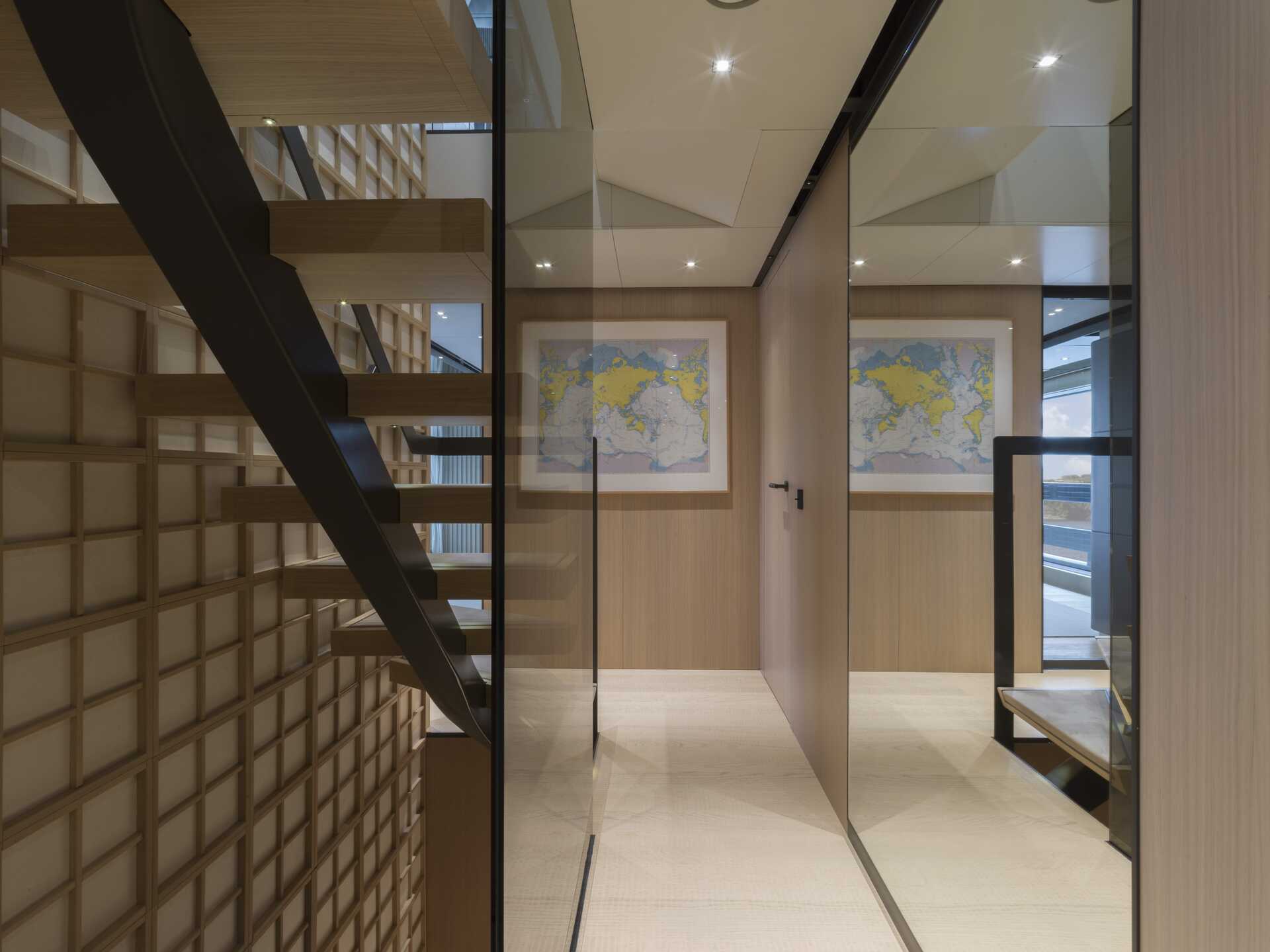

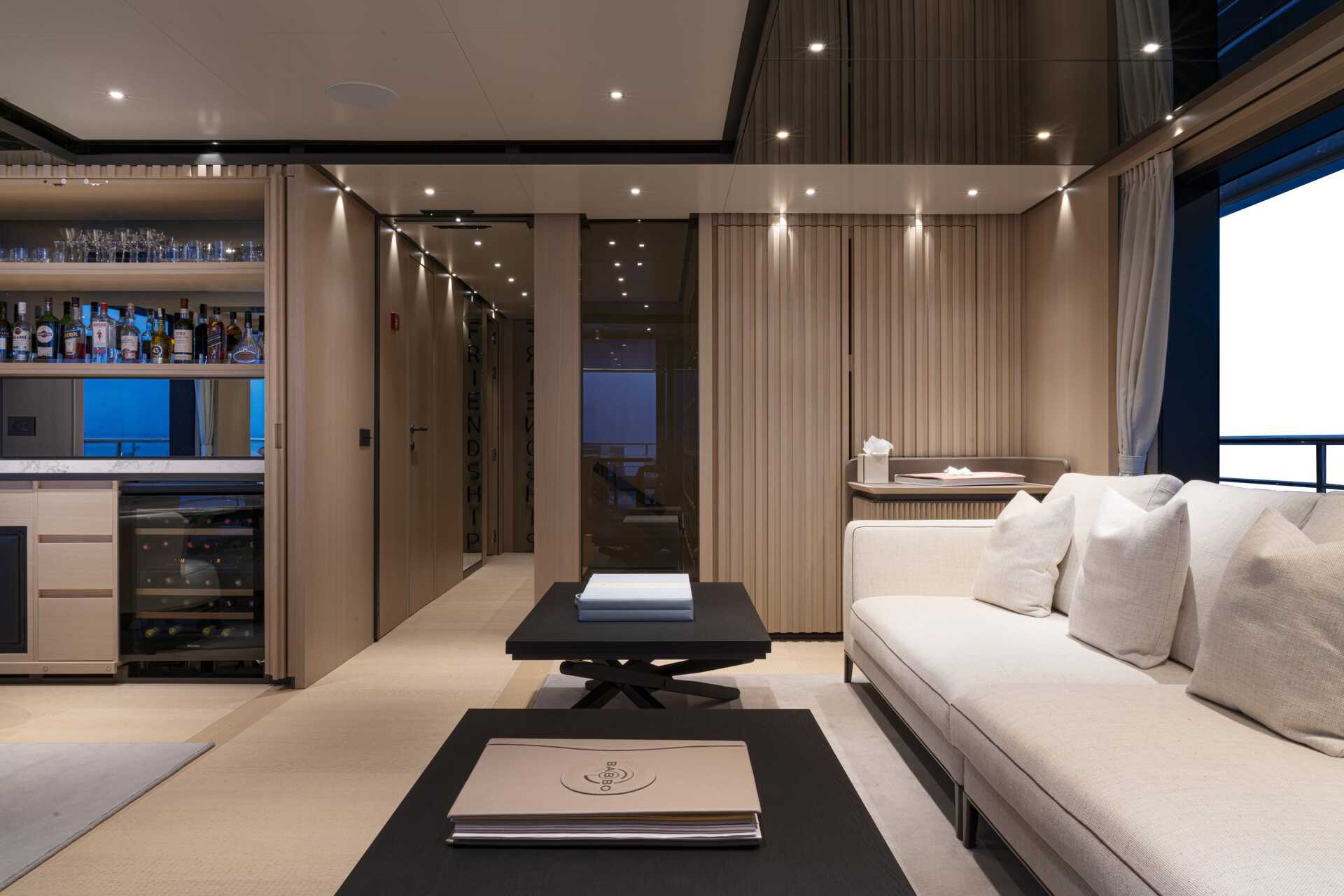

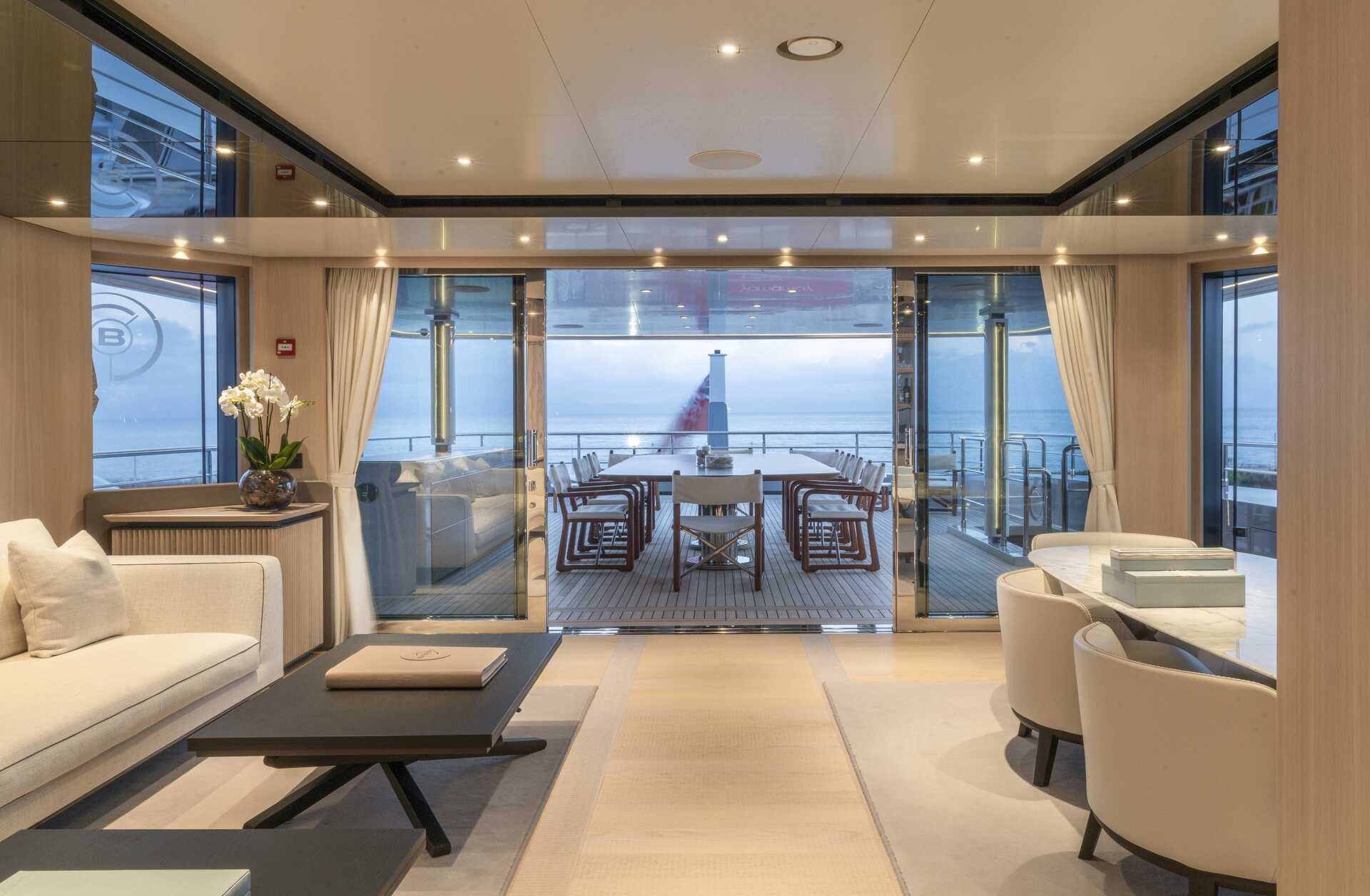

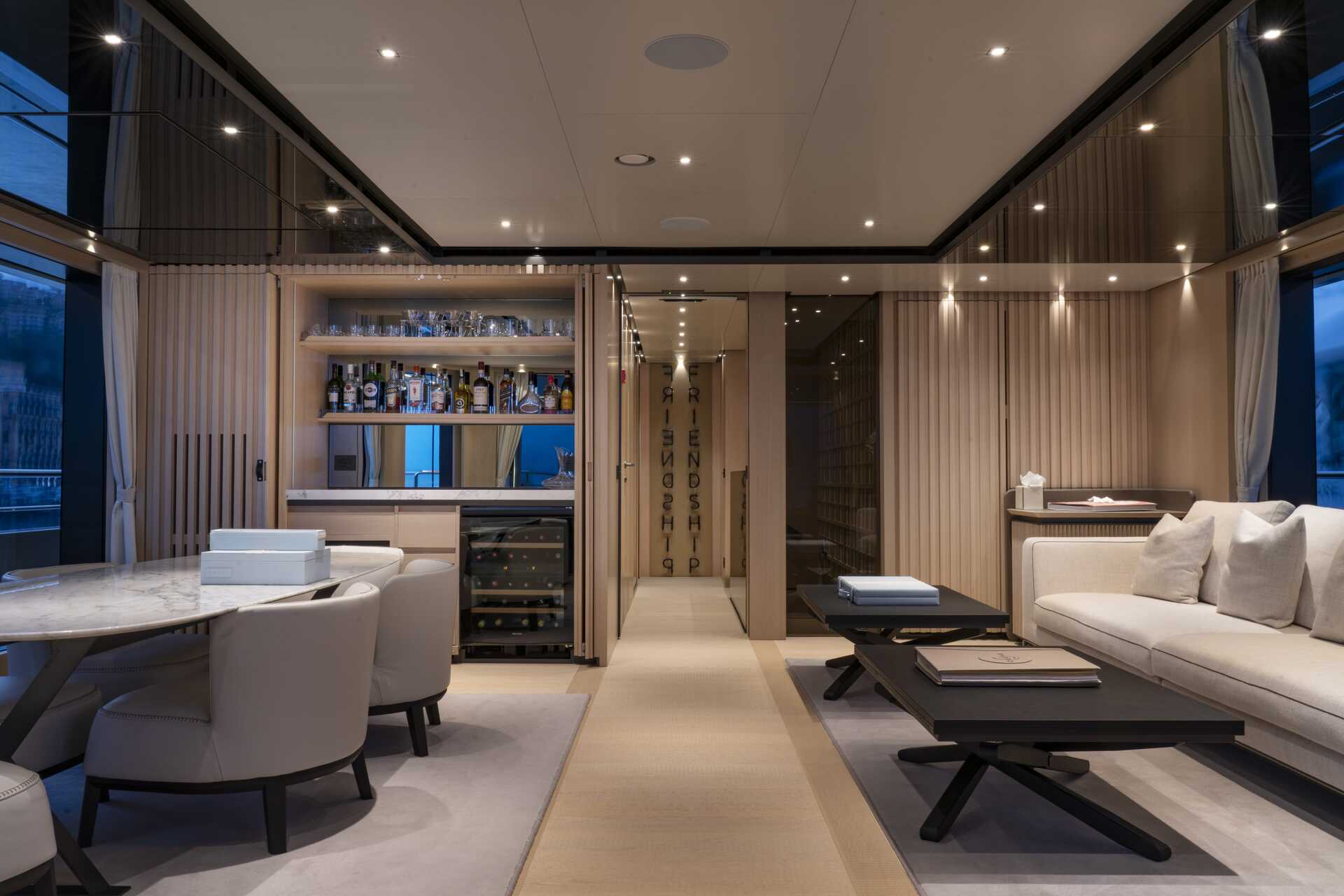

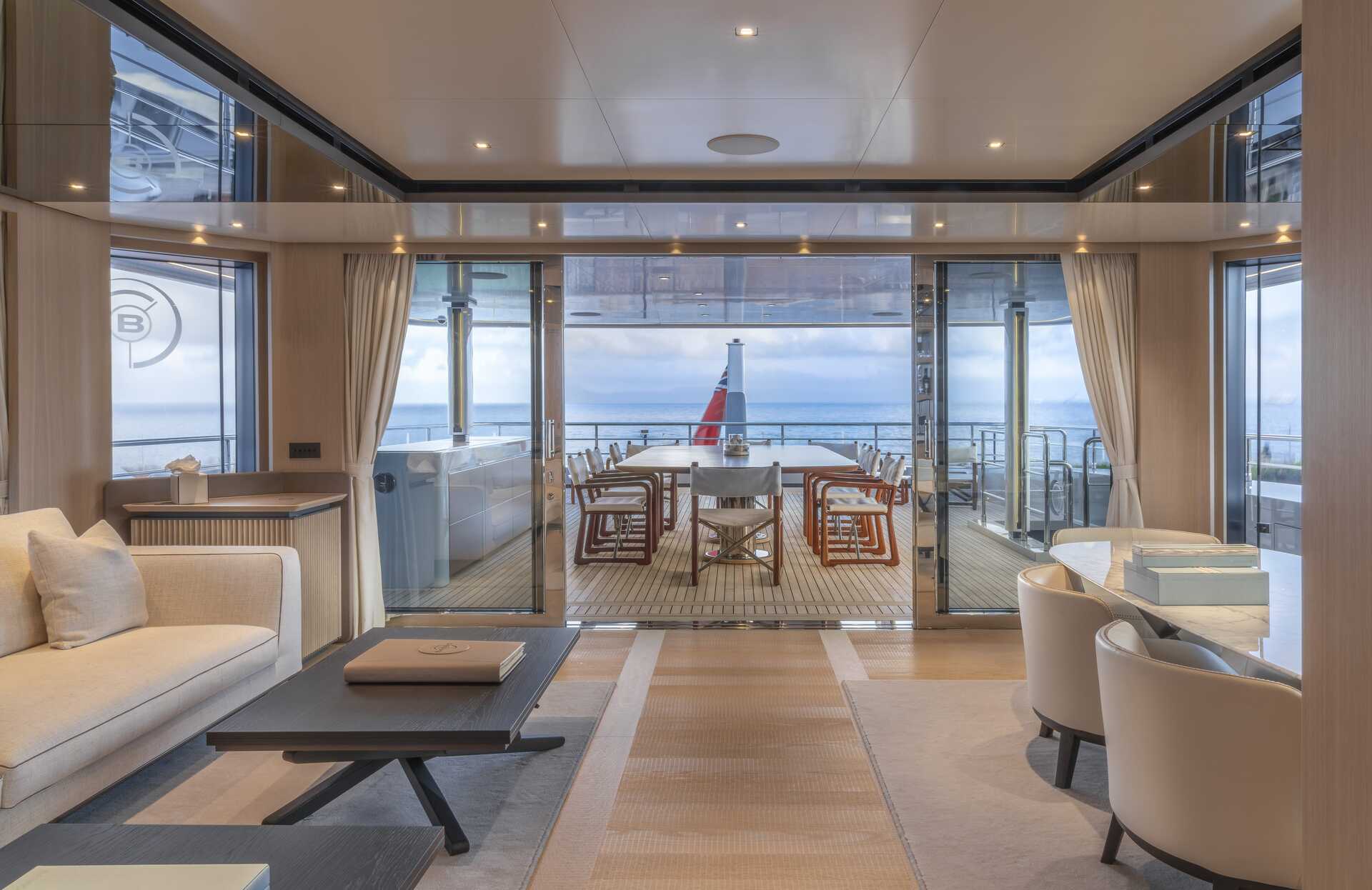

Interiors

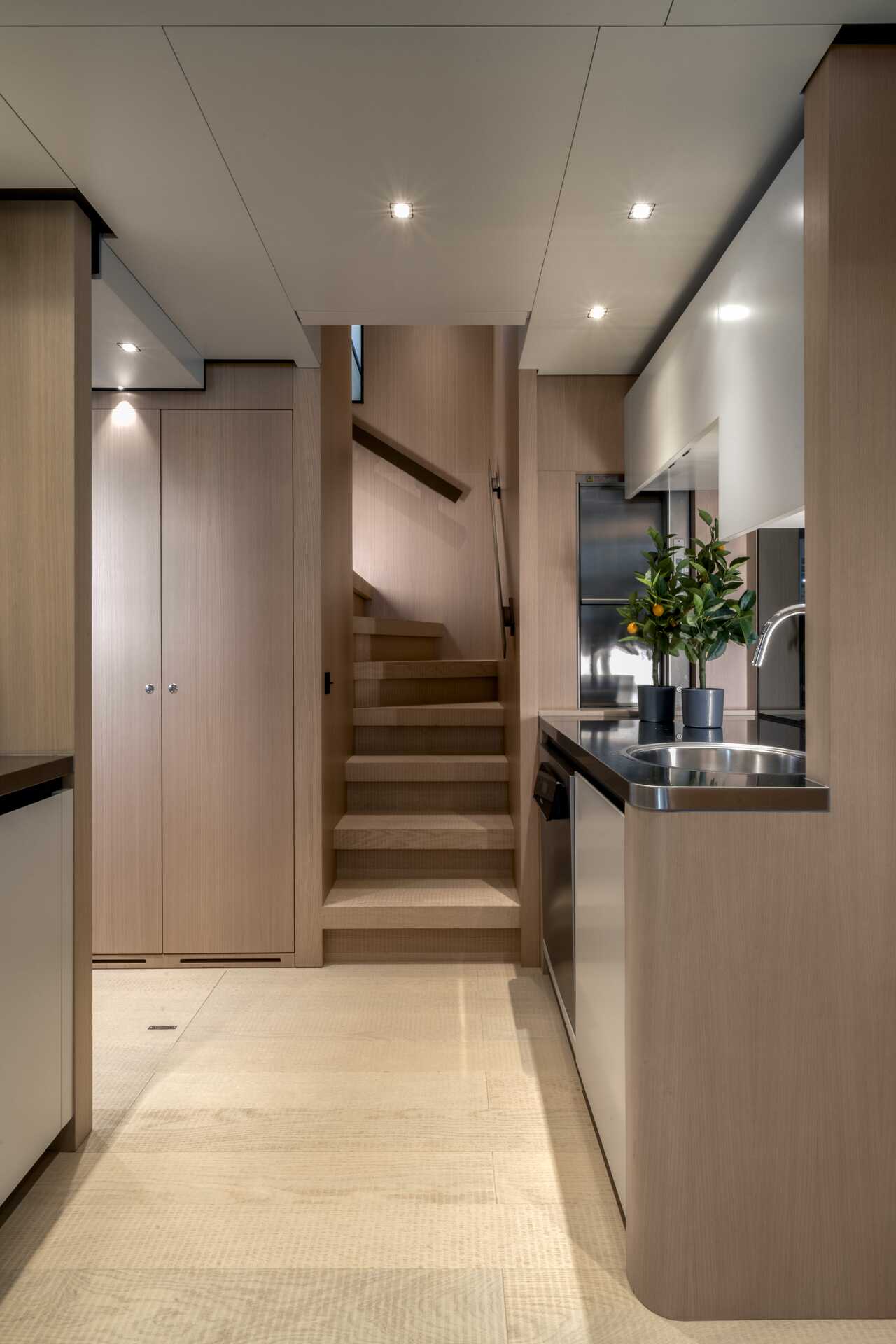

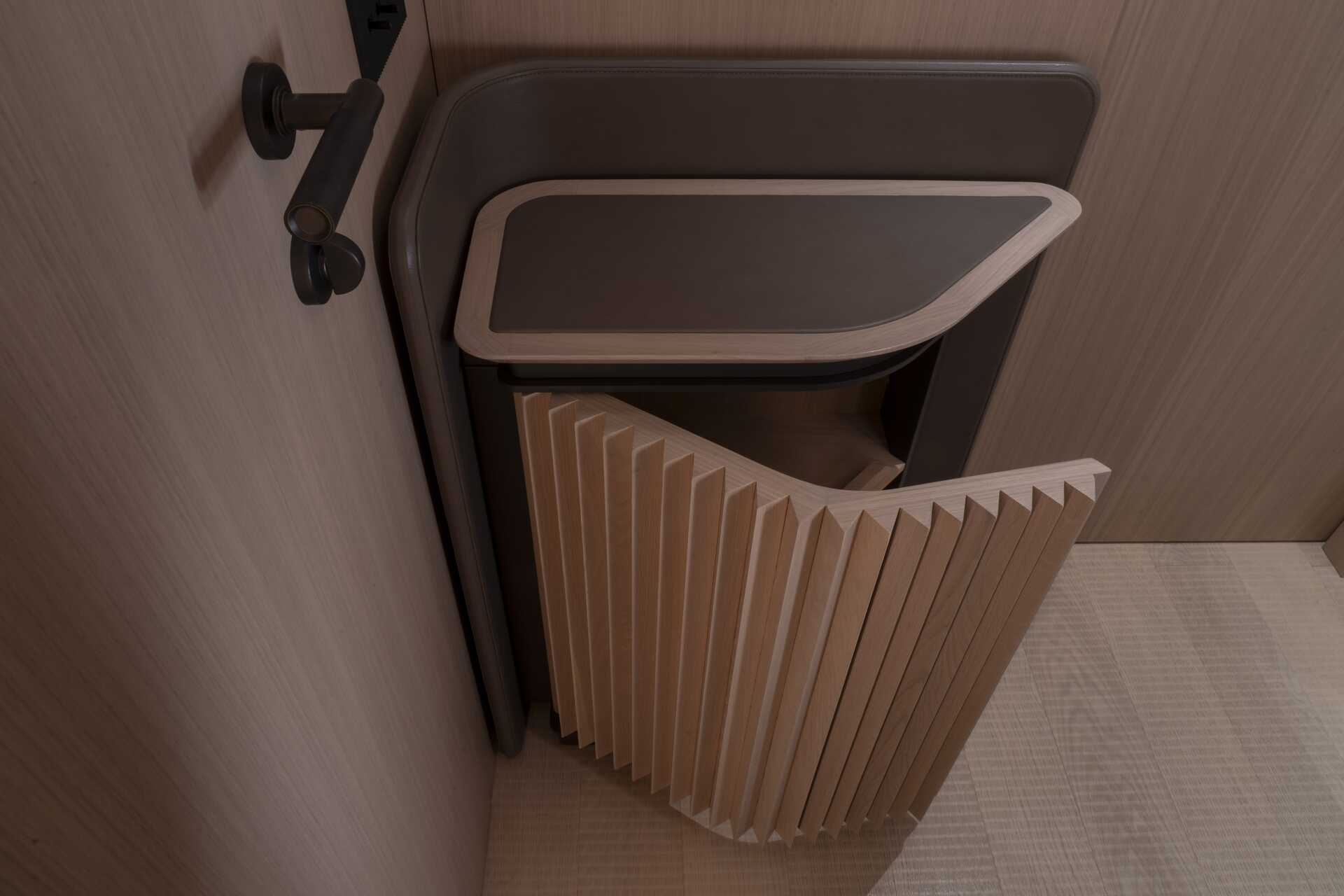

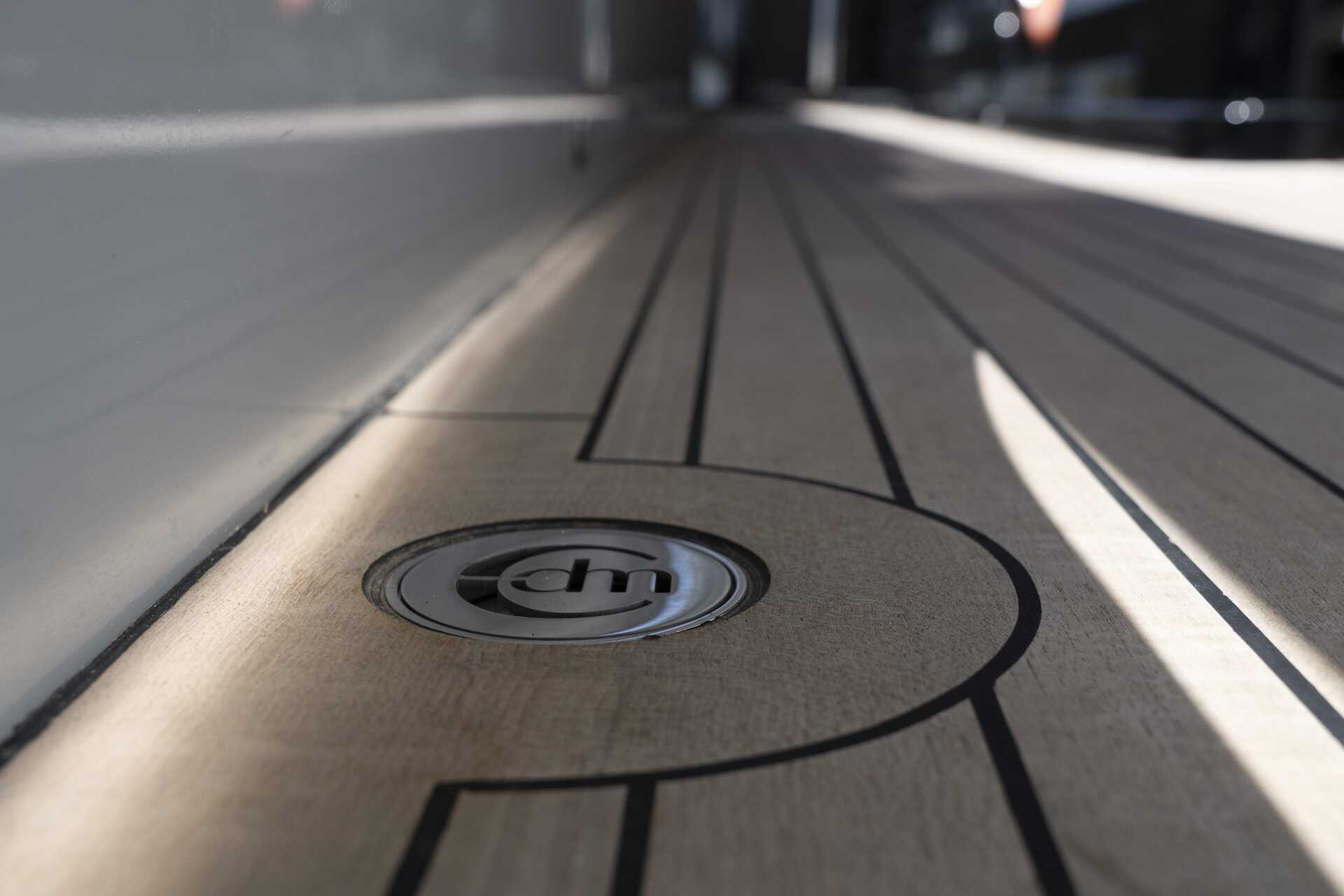

Details are not just details in themselves, but they are functional. Everything that is built in Cdm has a very specific purpose and it is not just a decoration for its own sake.

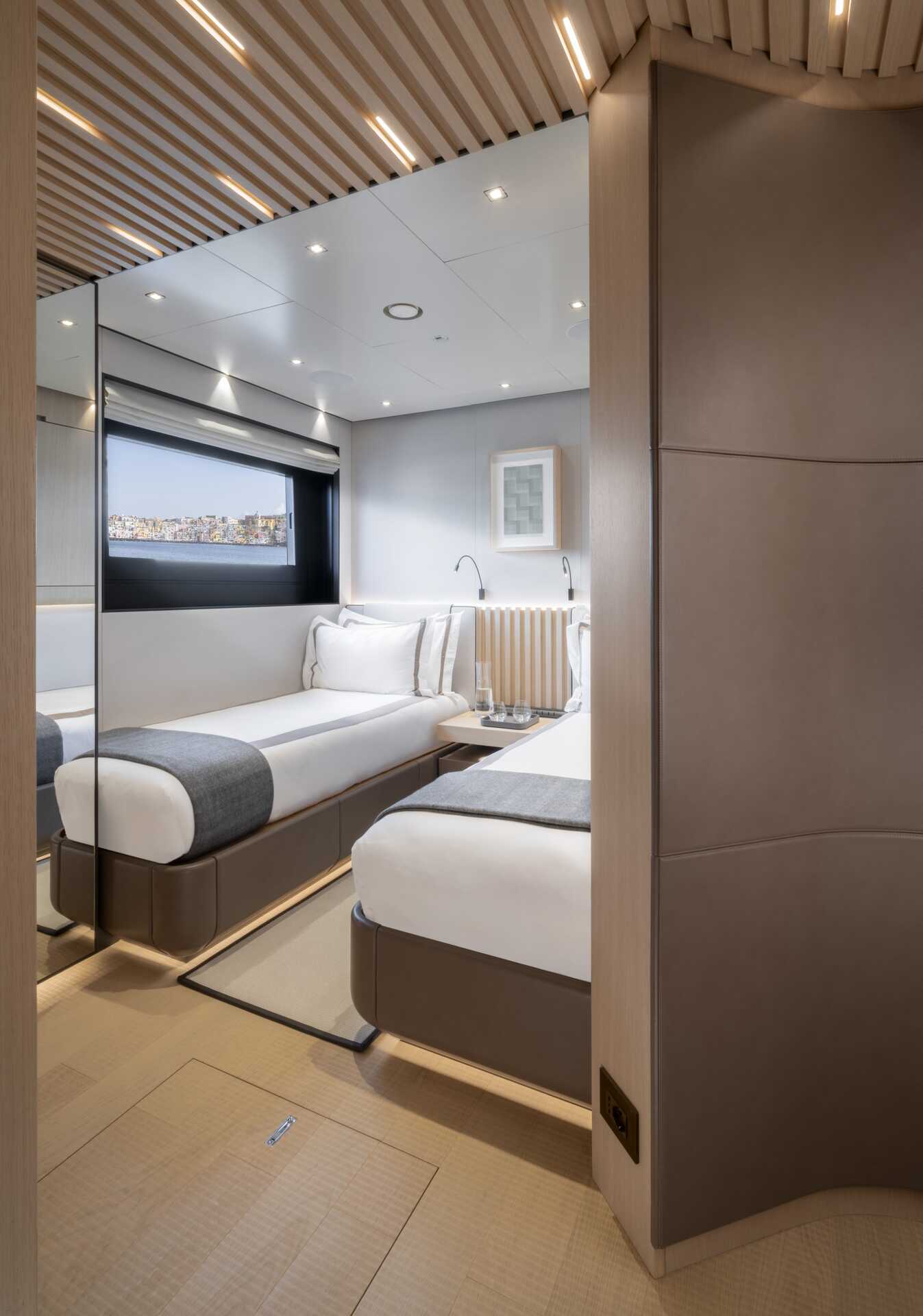

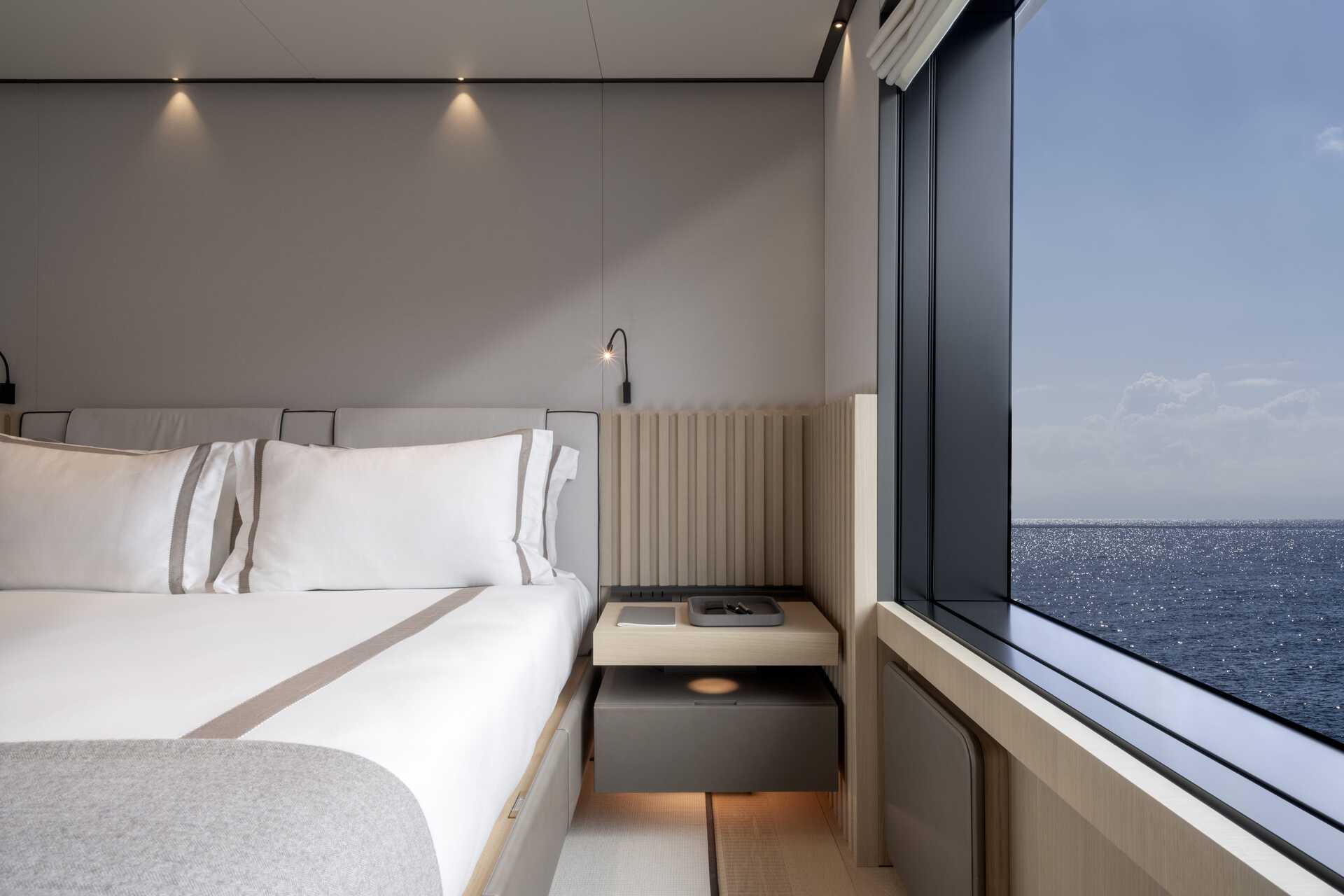

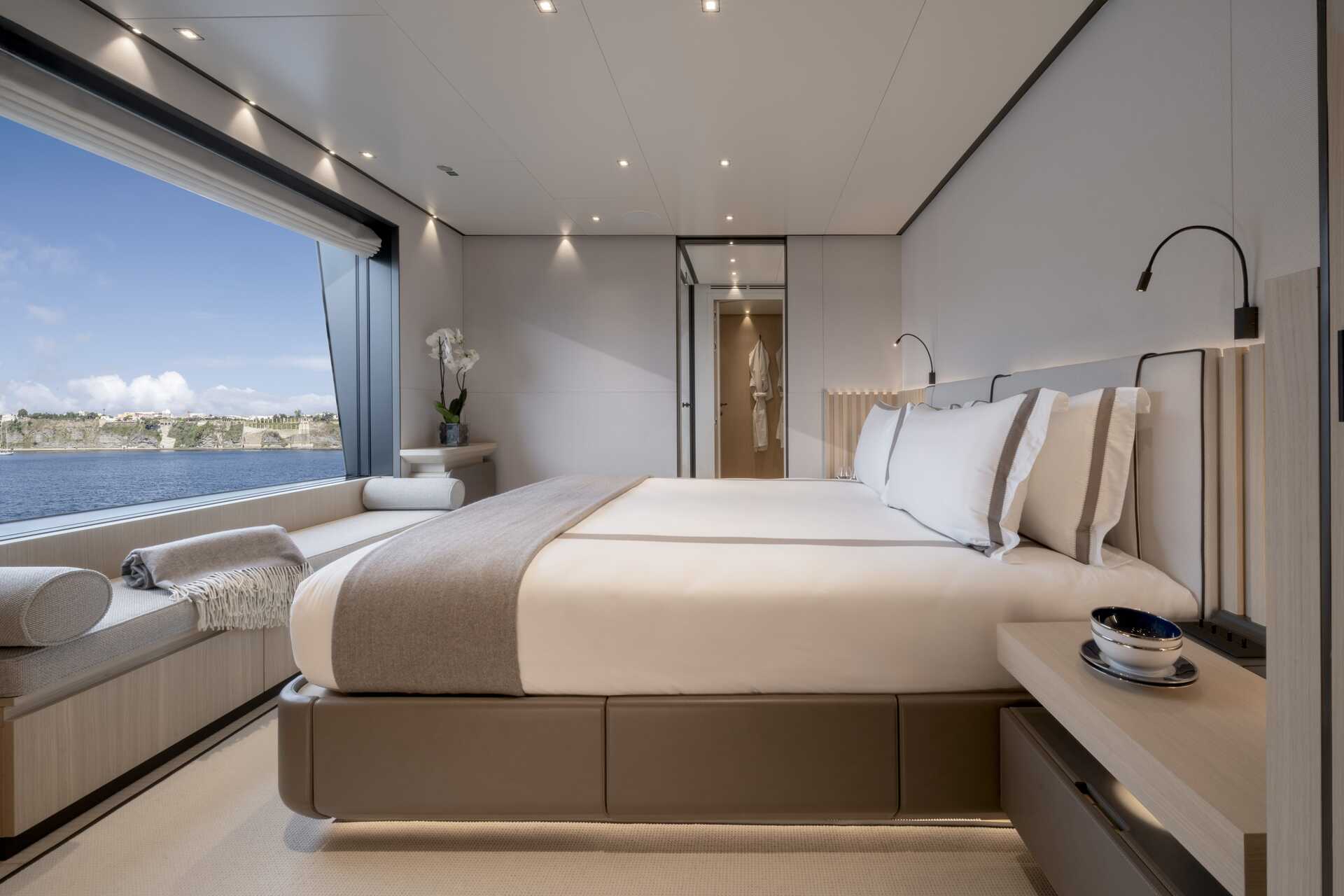

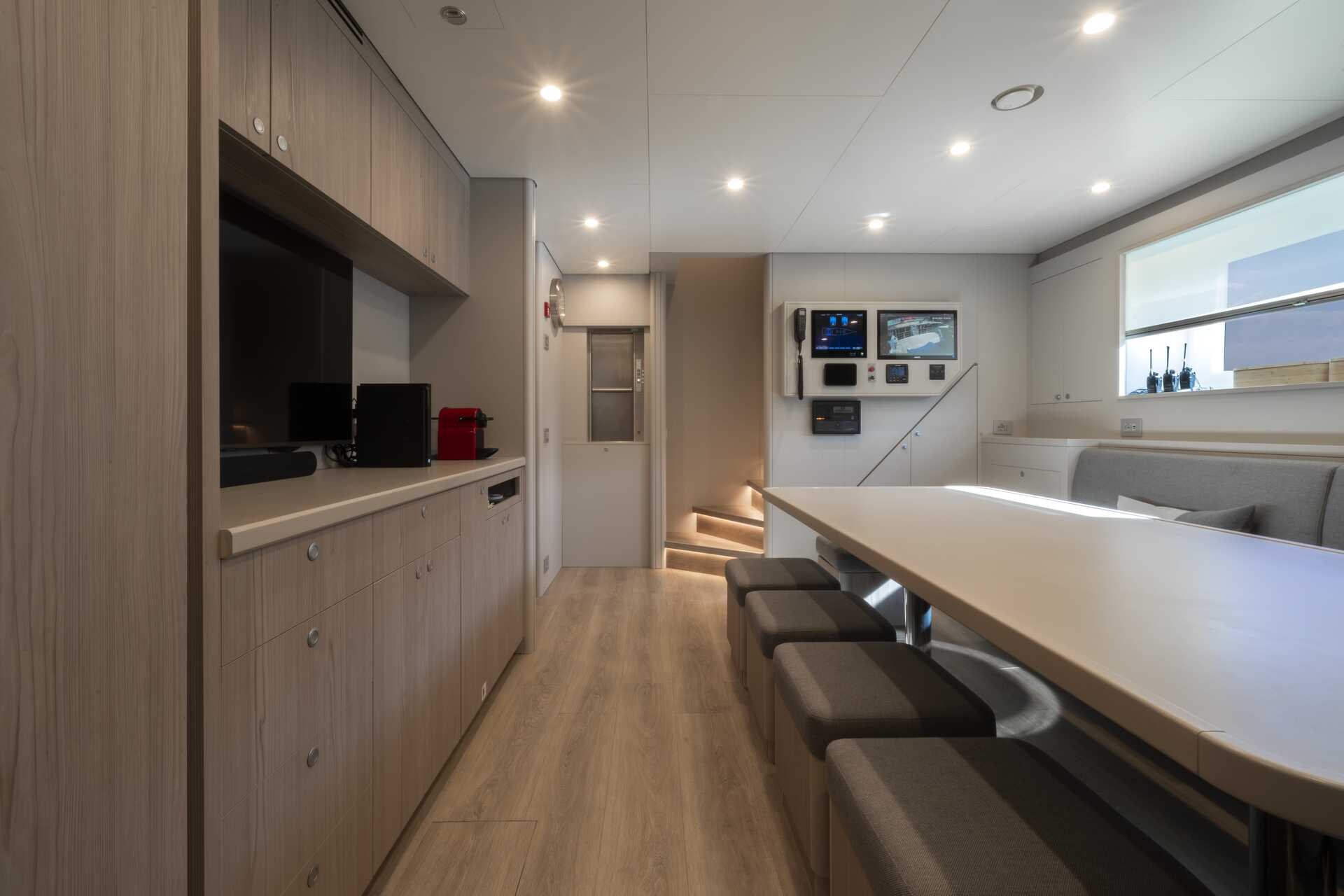

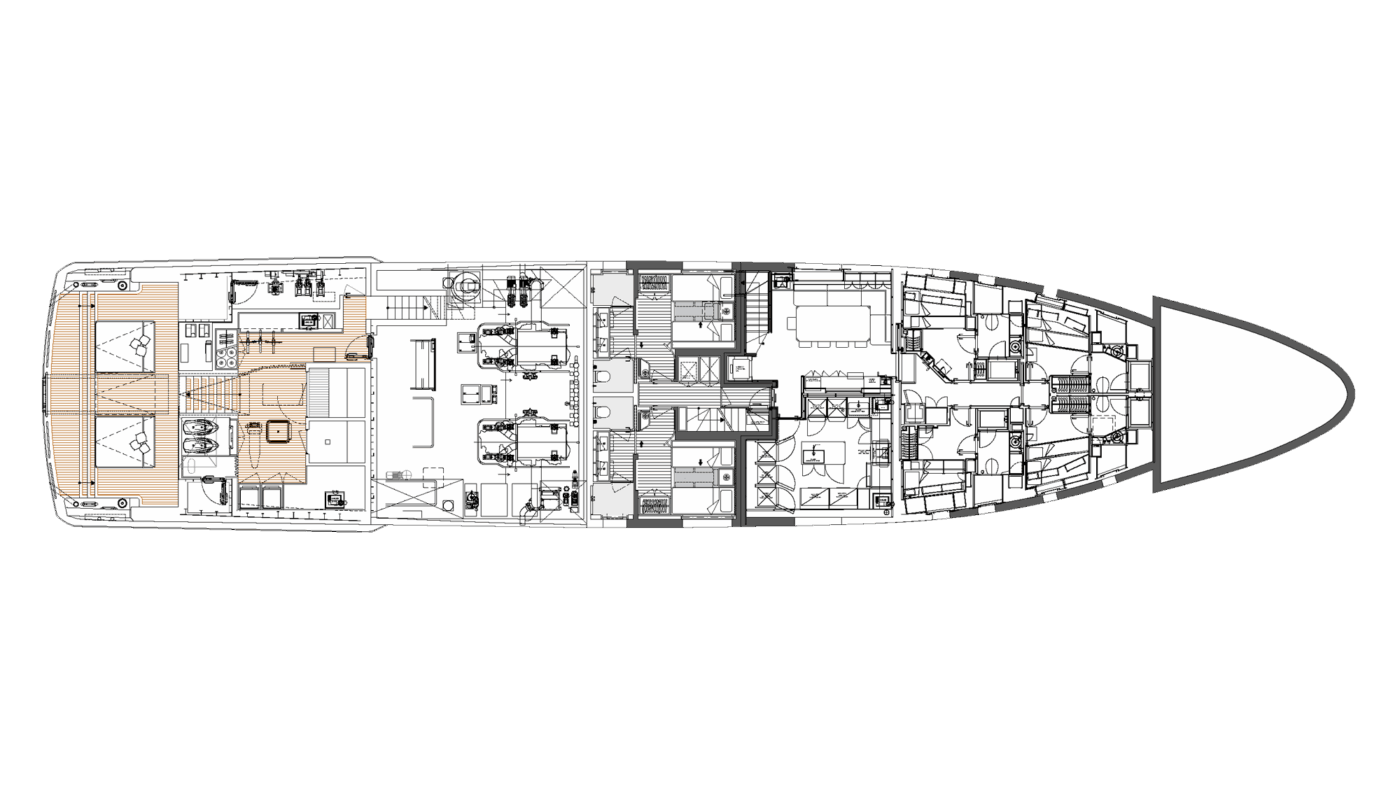

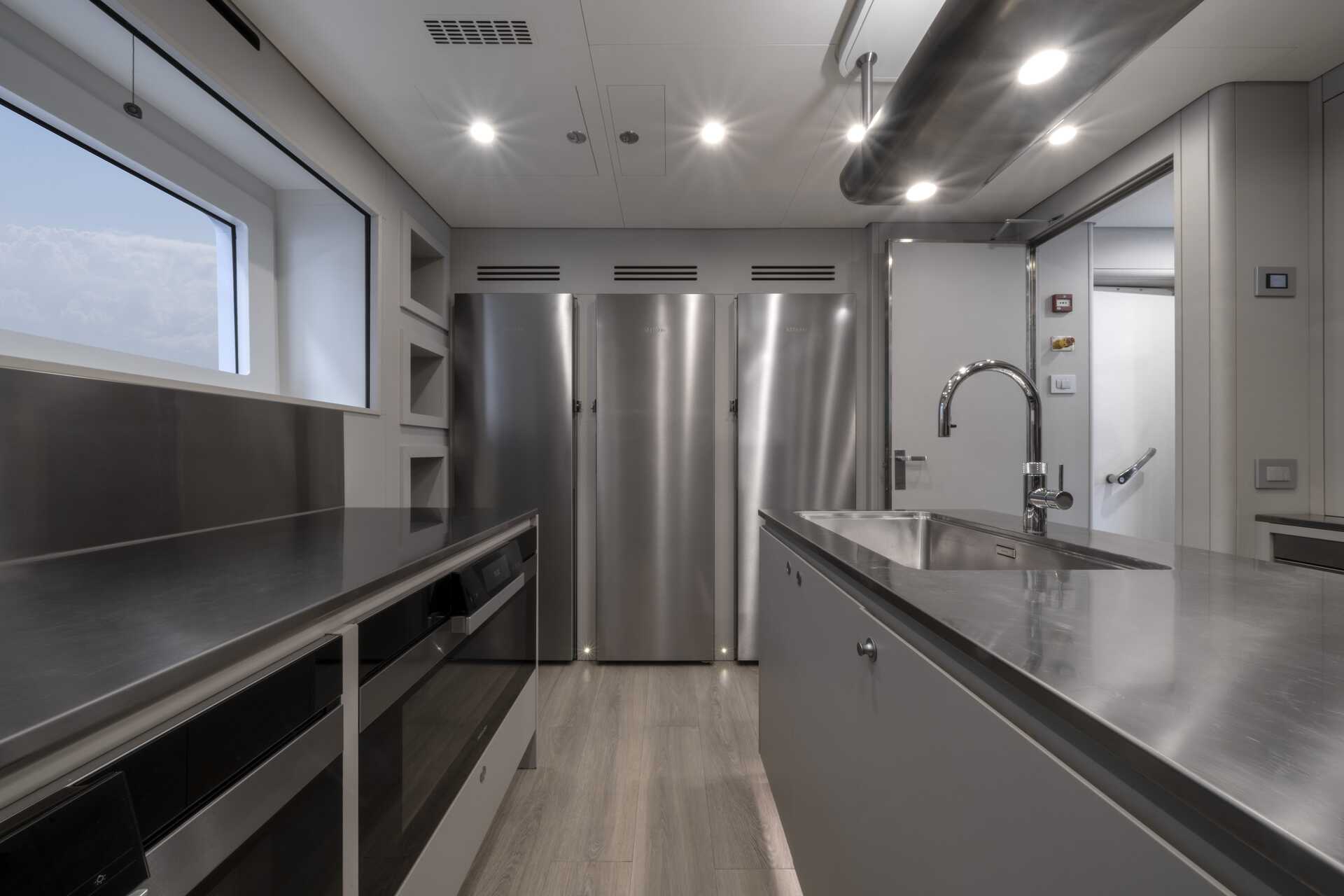

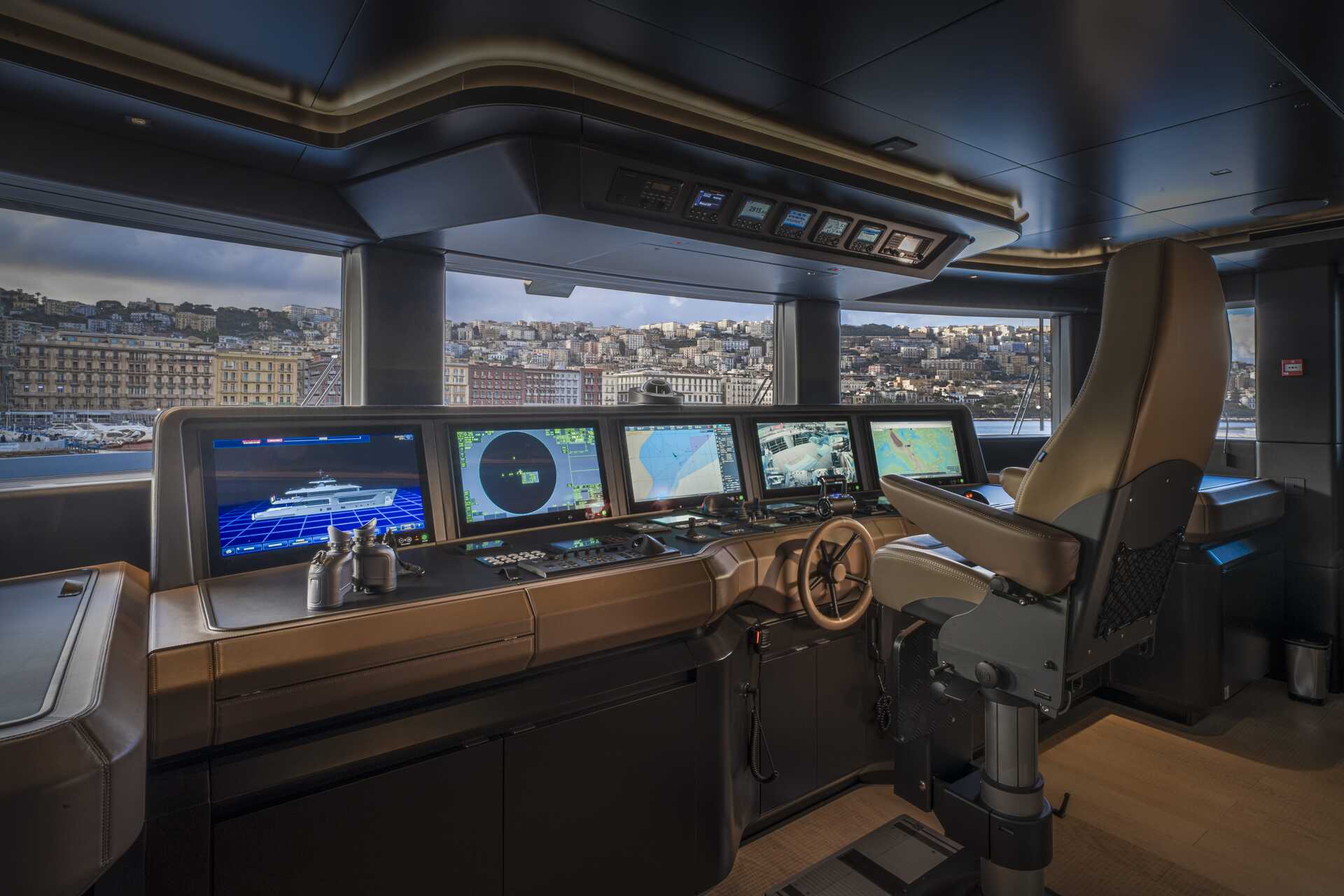

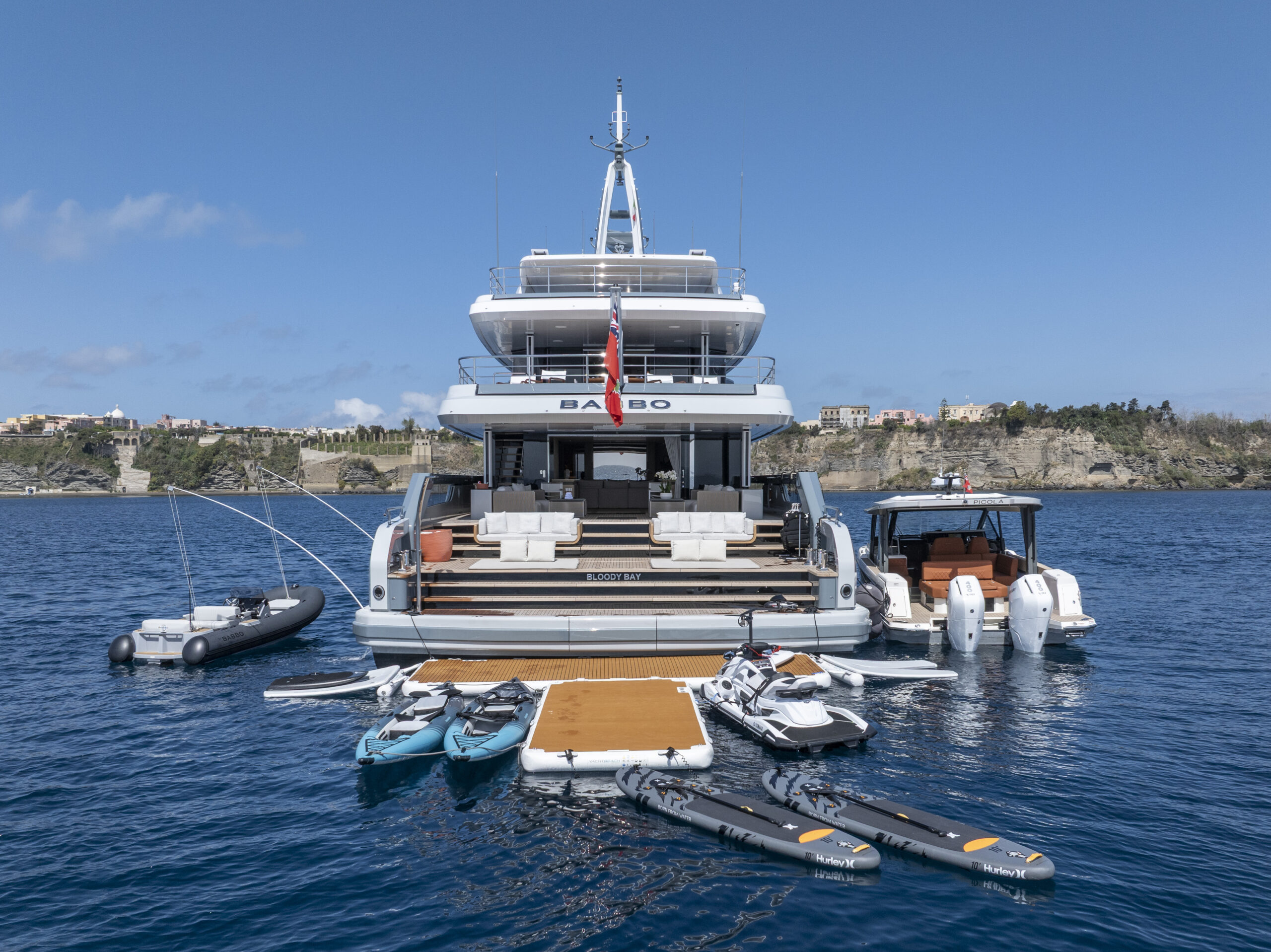

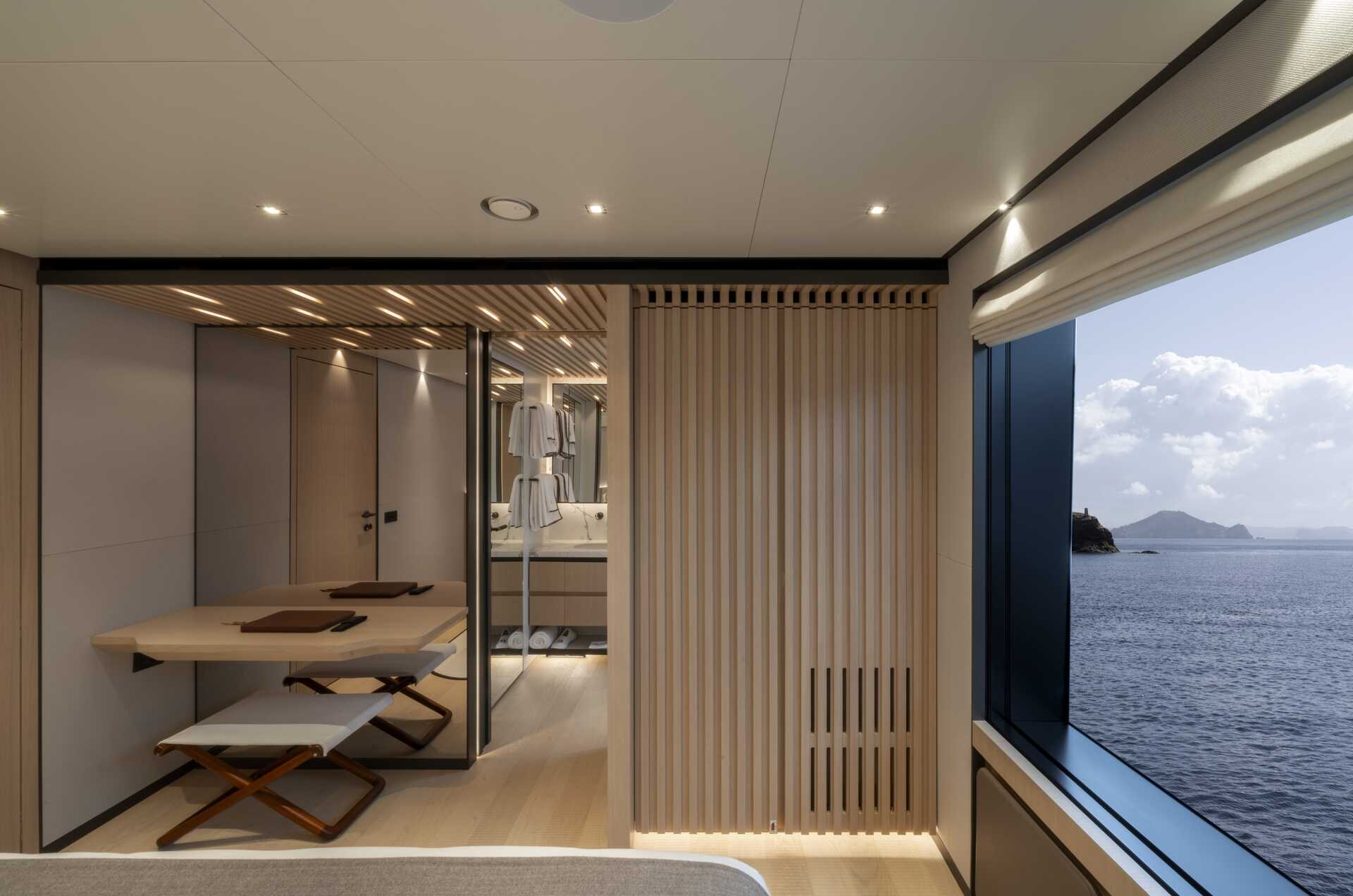

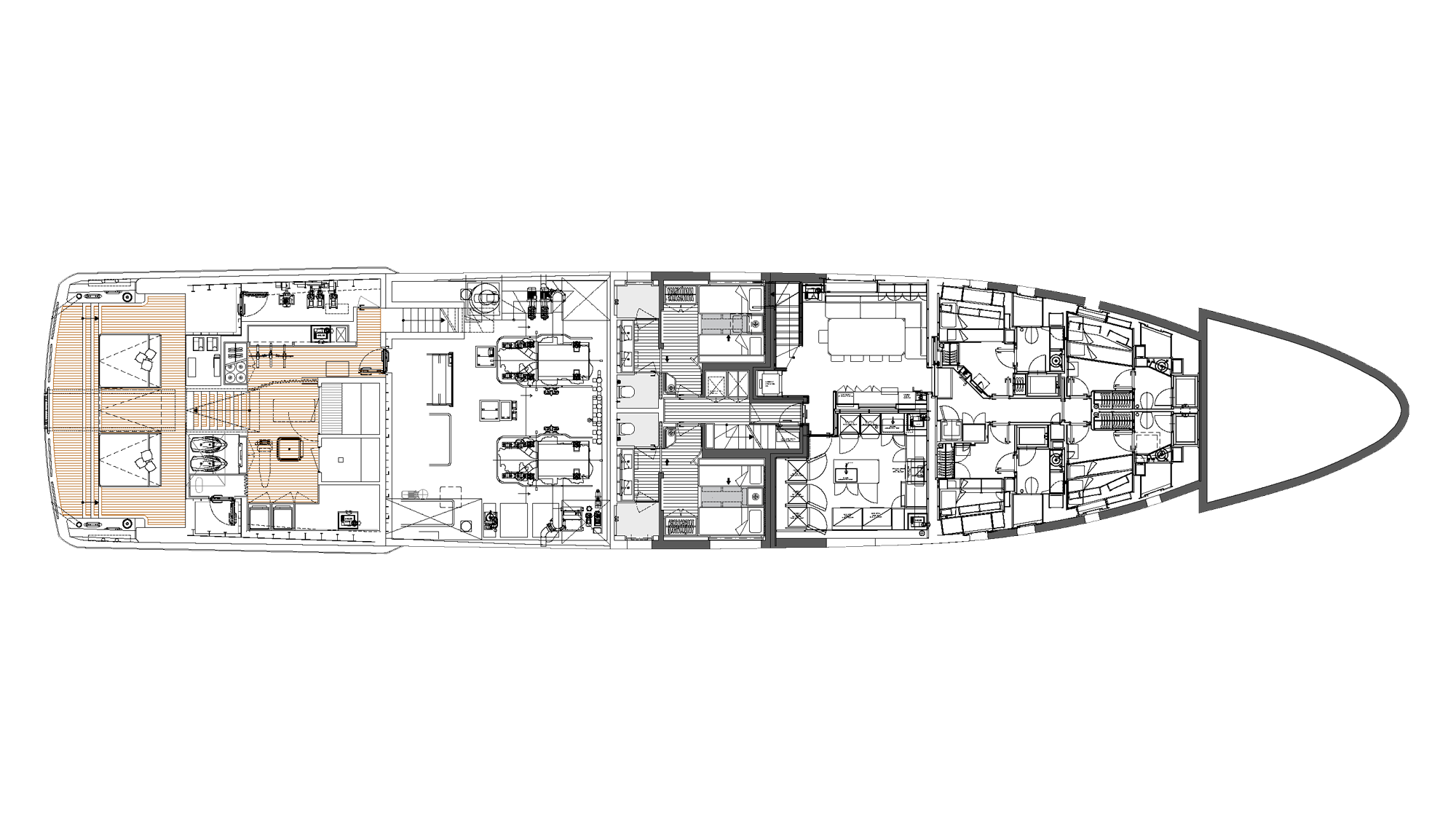

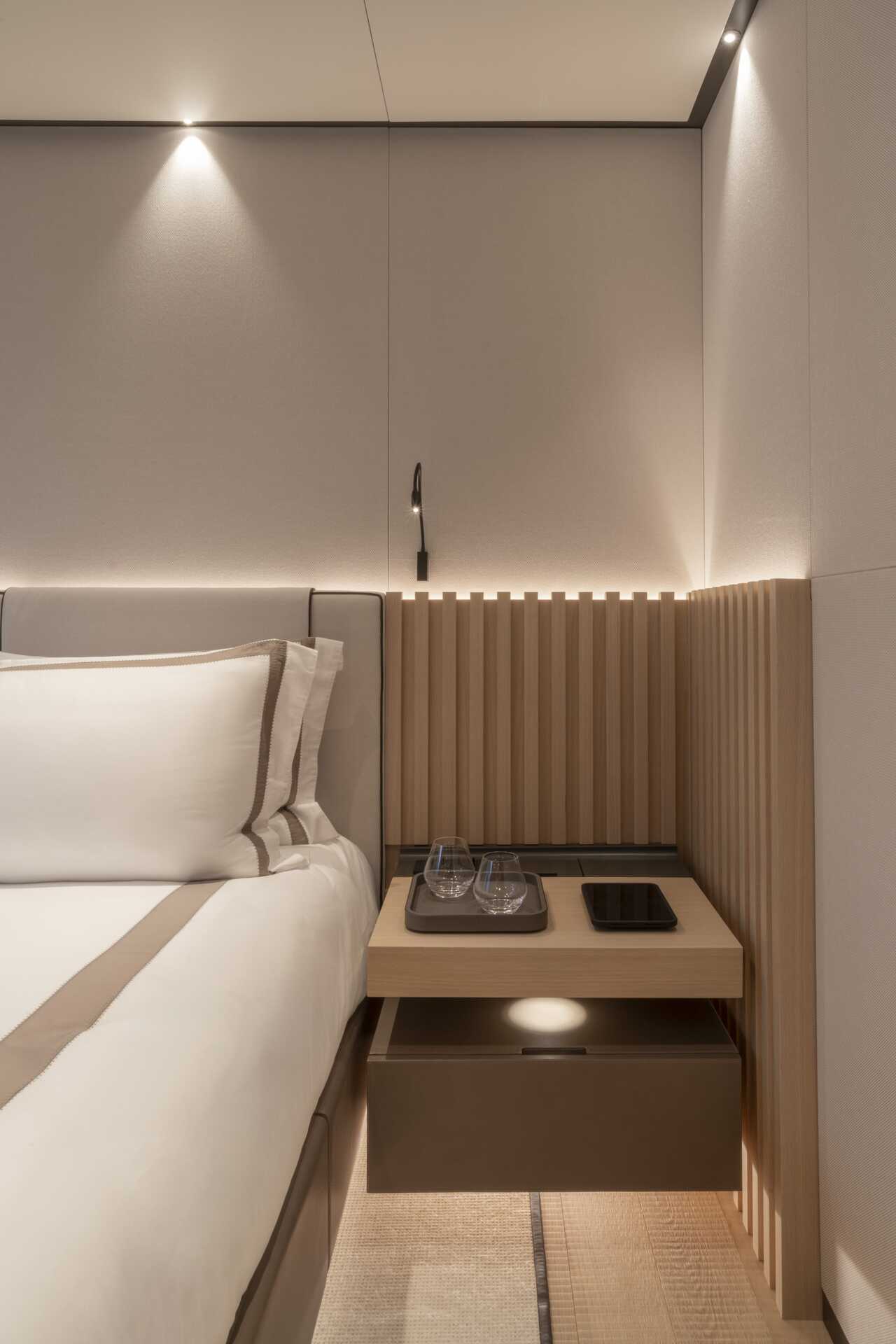

Guests are accommodated in four equally seized suites on the forward section of the Main deck and two twin cabins on the Lower deck. The Lower deck also houses generously sized galley, crew mess, and laundry facilities. Crew accommodations consists of four cabins on the forward section of the Lower deck, while the Captain enjoys a dedicated suite adjacent the wheelhouse. Tenders and toys are conveniently stored in a compartment on the forward section of the Upper deck.
Moments

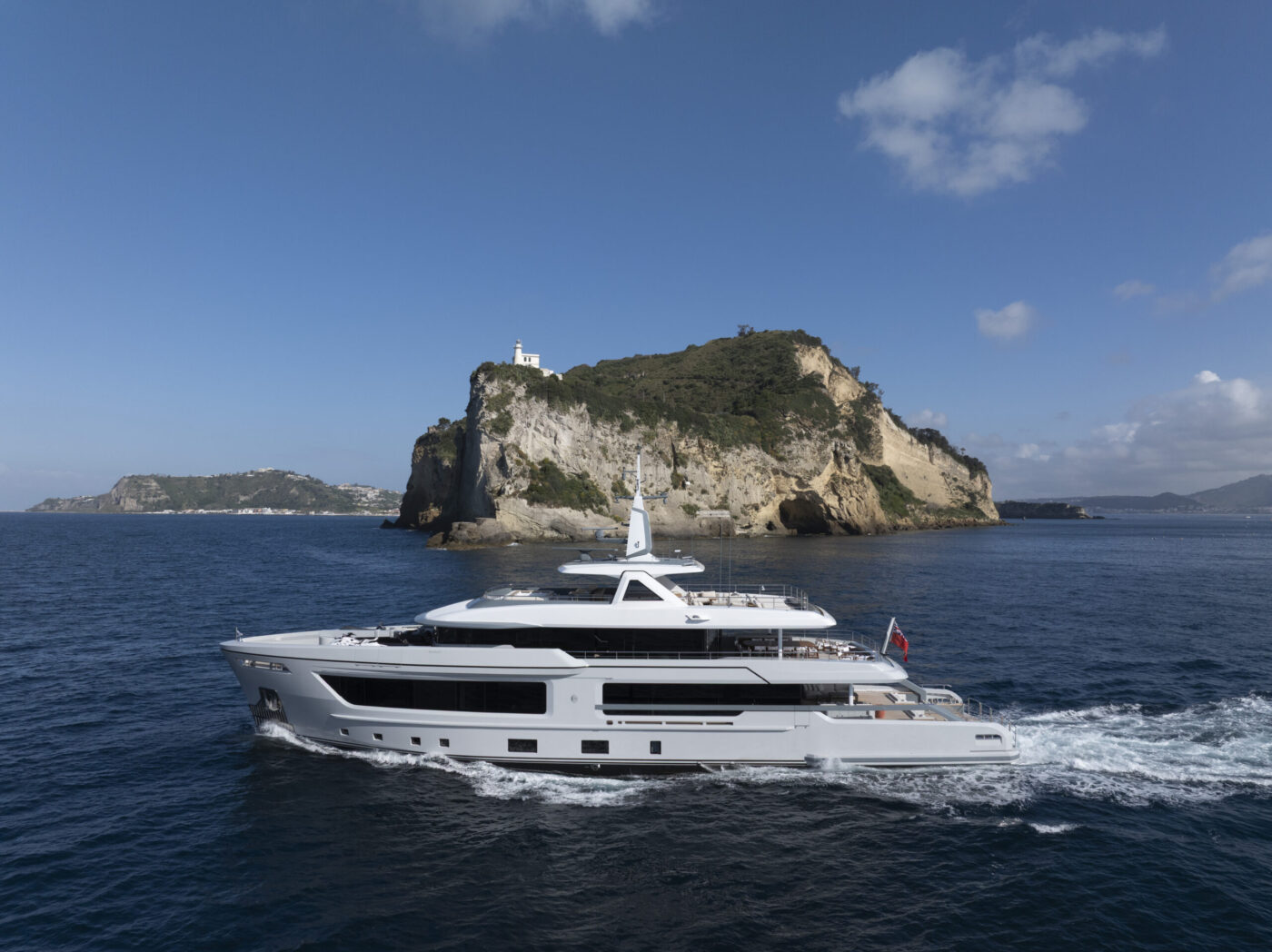

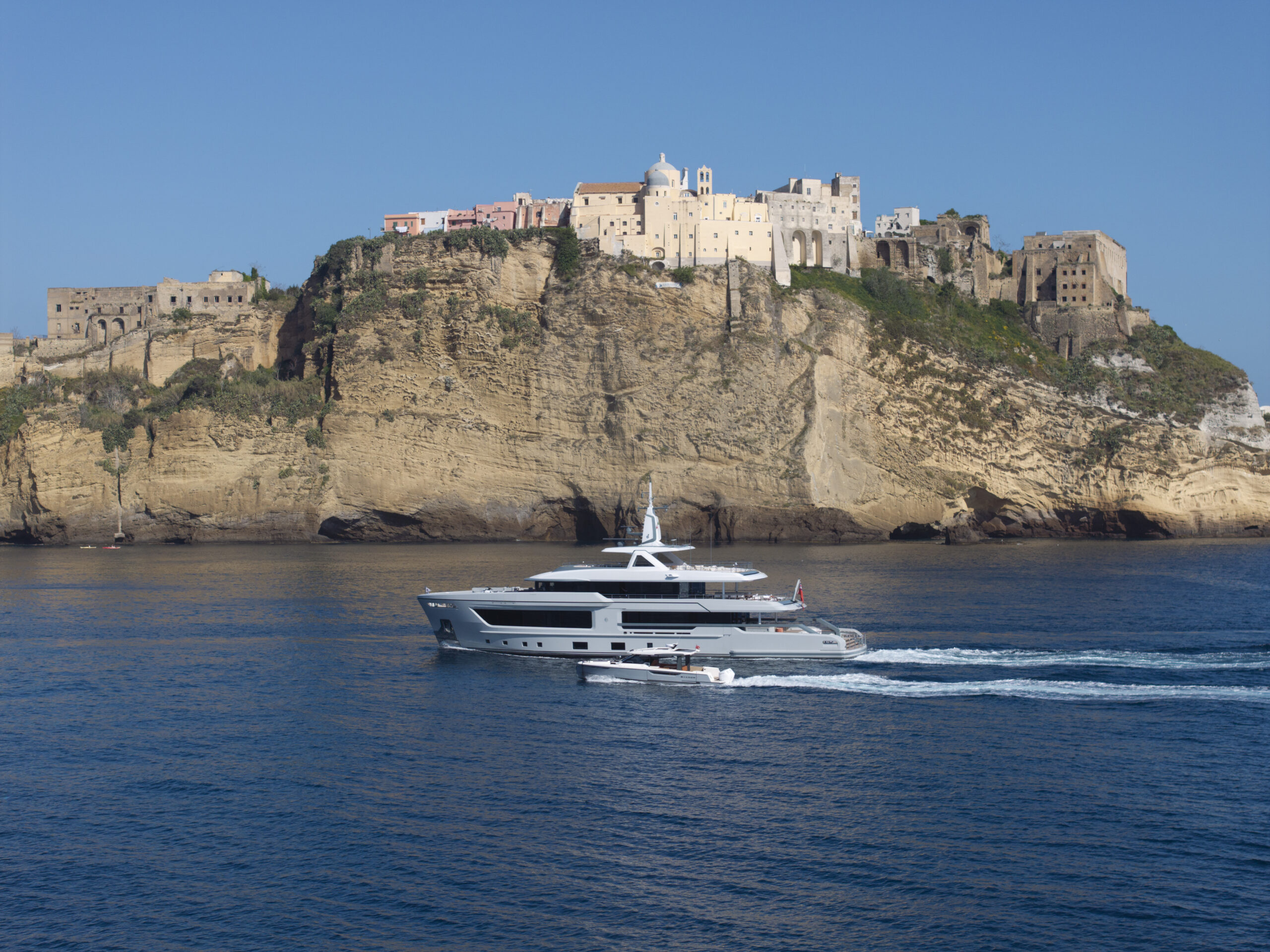

Babbo is a construction that combines the elegance of style with the technical requirements of an Explorer.
