The RJ 115 project pays respect to the most exquisite yacht design tradition while implementing it with highly sophisticated design solutions.
Lenght range 35,00 x 7,50 mt
Exterior design Francesco Paszkowski
Material Steel
Aluminium
Aluminium

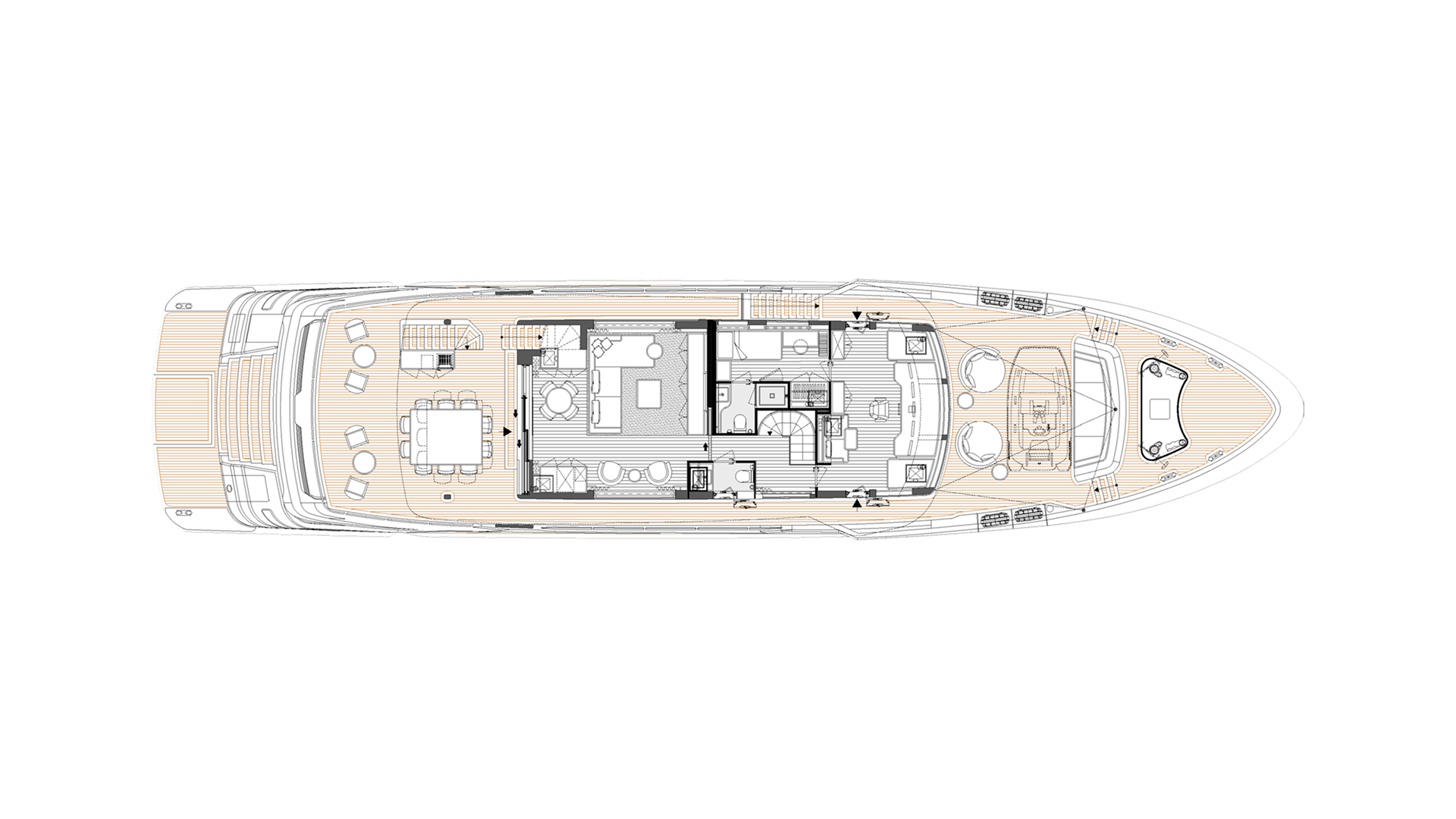

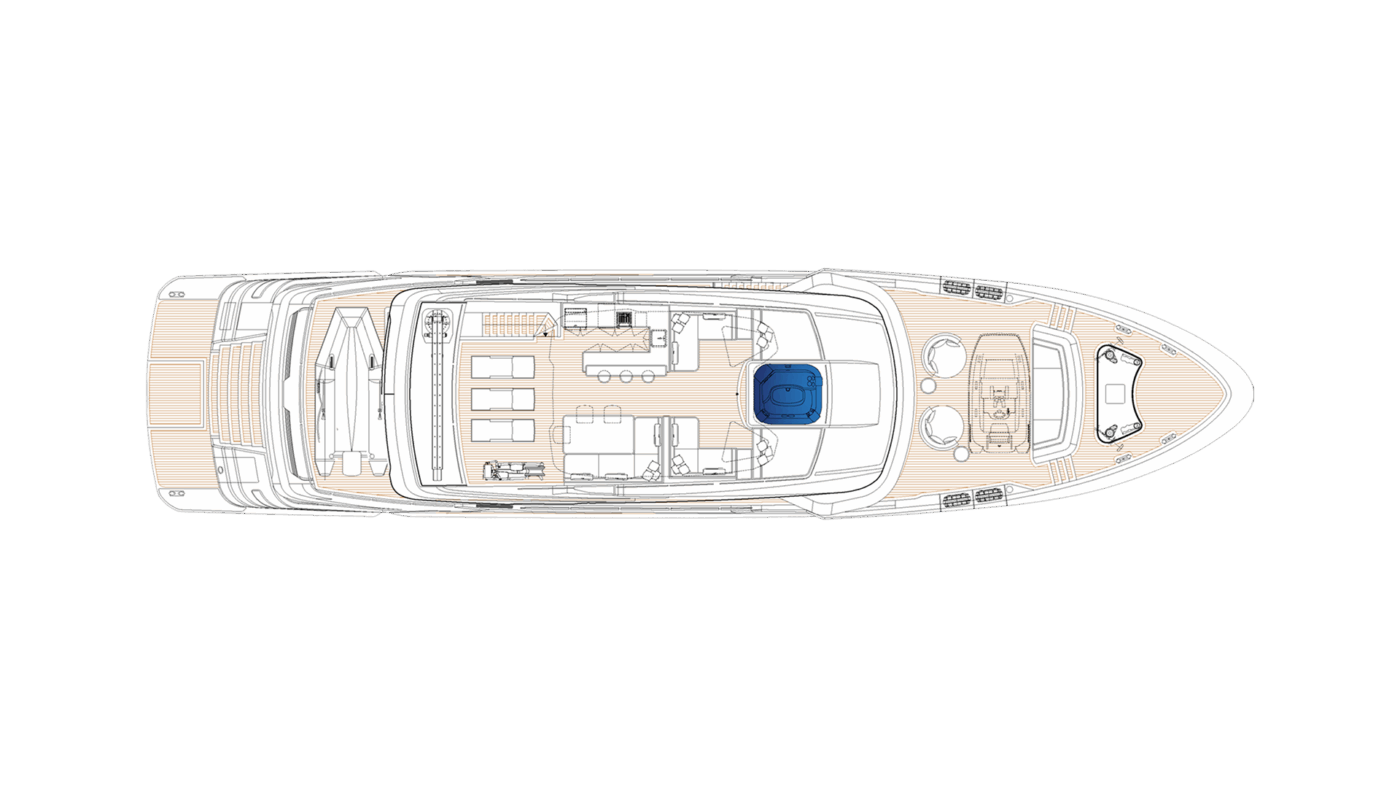

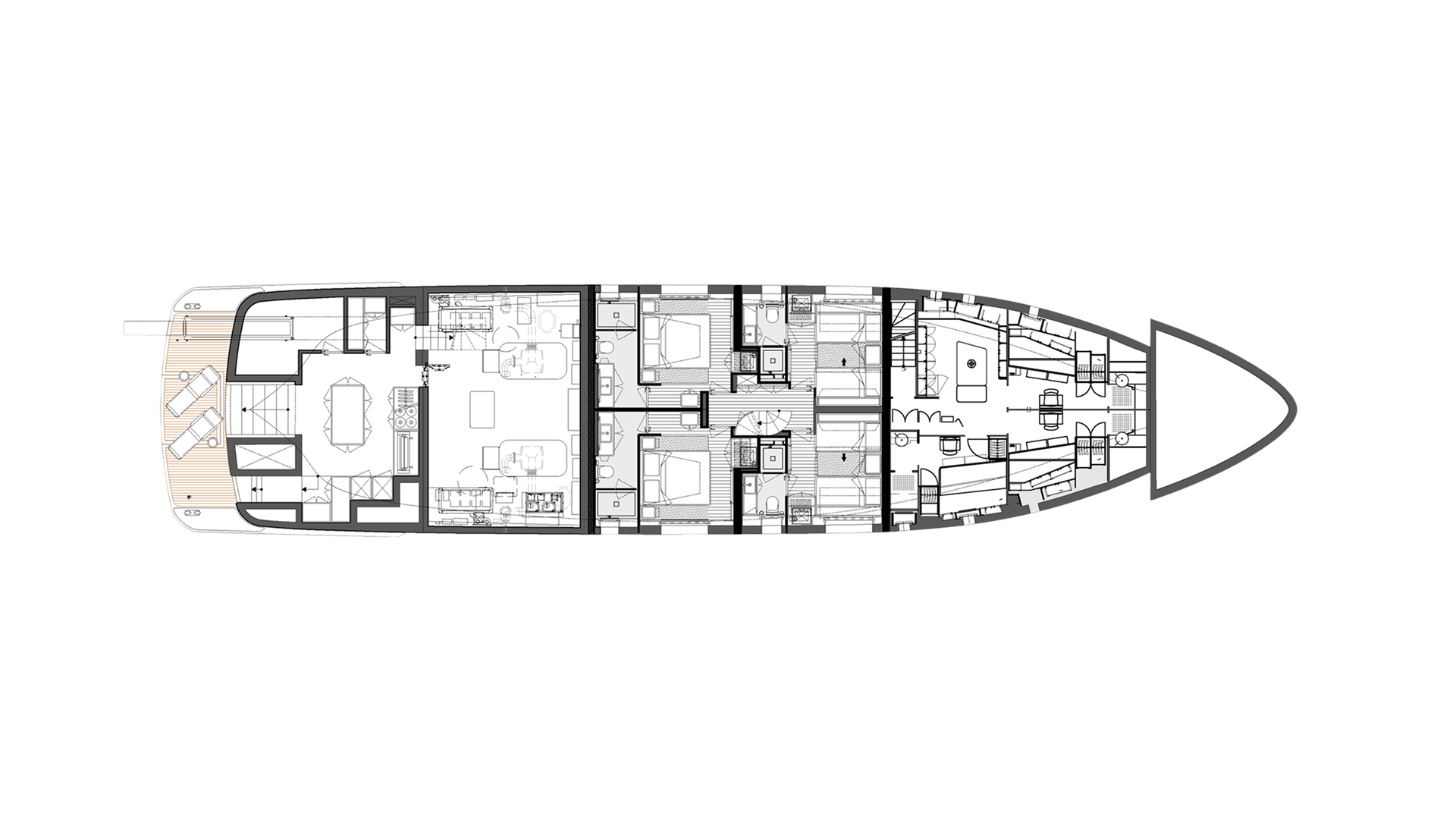

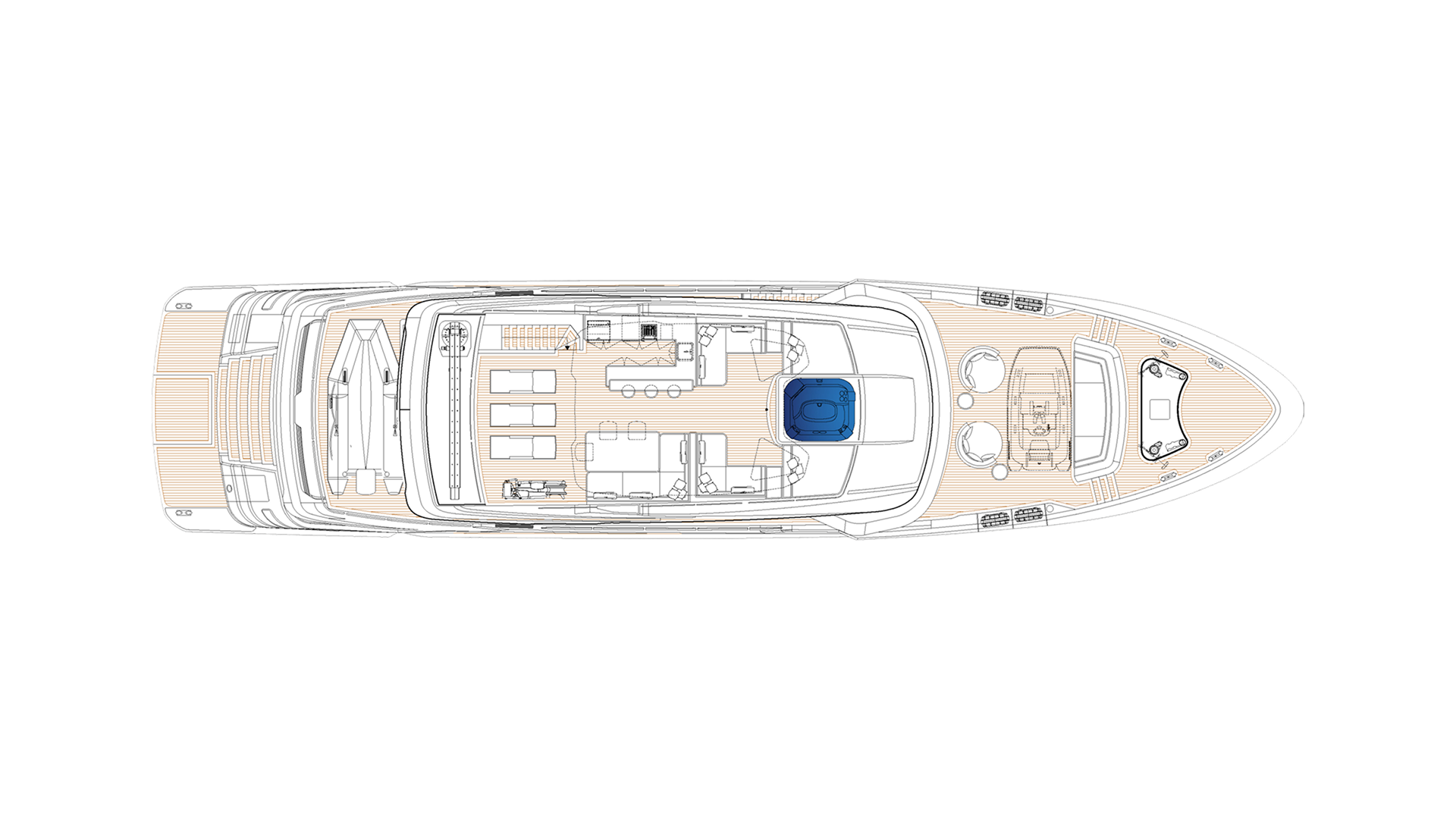

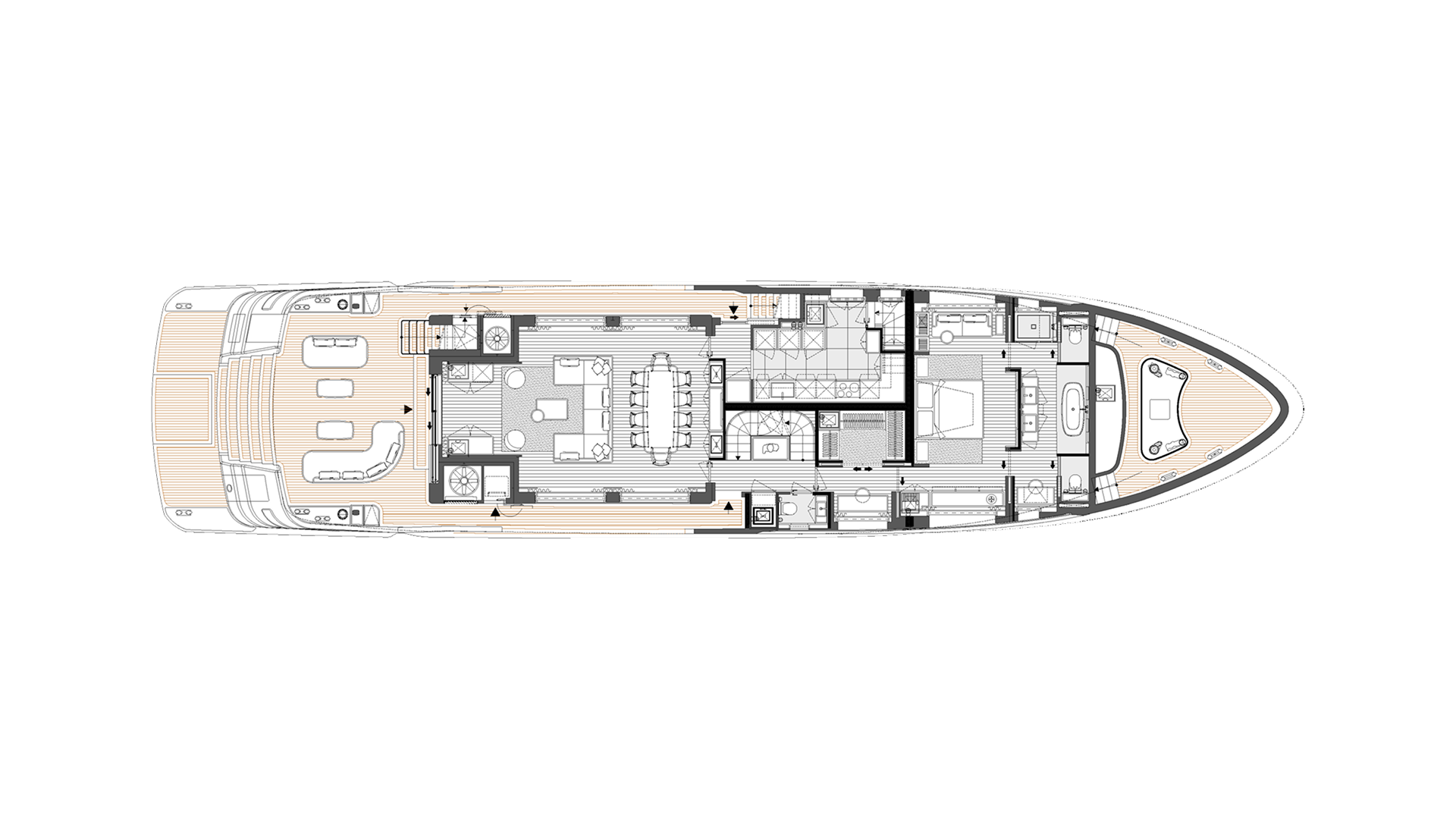

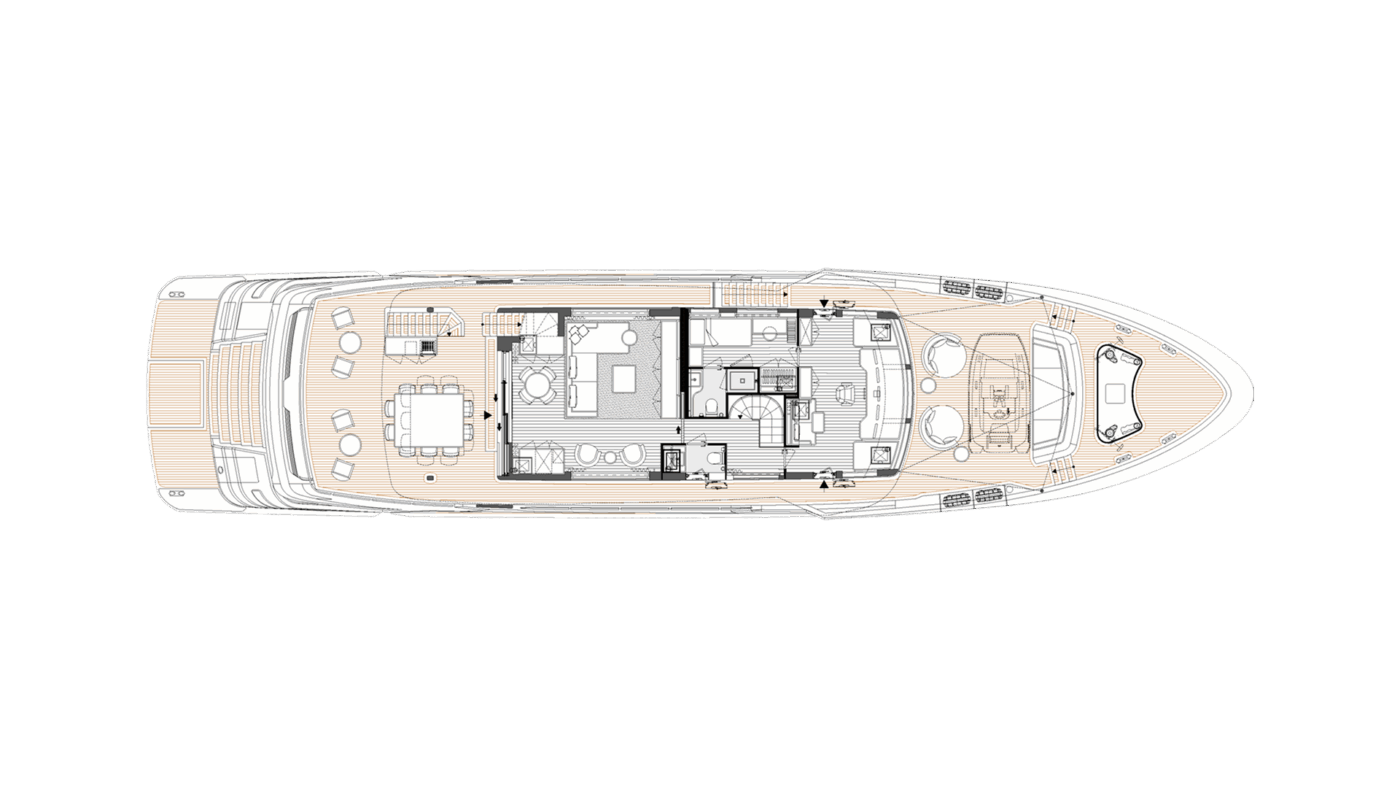

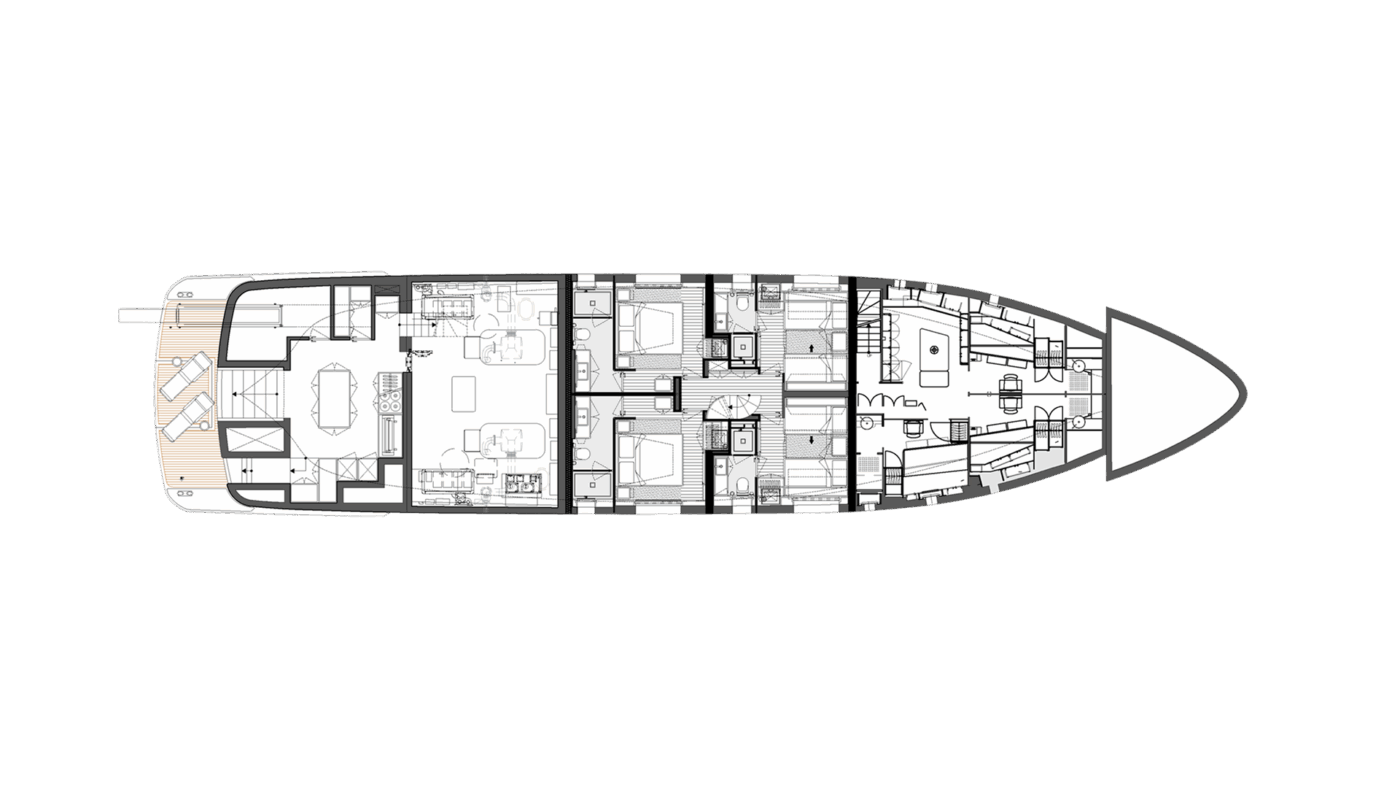

General plan
Specifications
Lenght overall
35 m
115 ft
Waterline length
31,88 m
104.6 ft
Max beam
7,50 m
24.6 ft
Depth, amidship
4,15 m
13.60 ft
Draught, full load under the keel
2,41 m
7.90 ft
Displacement, full load
313 t
308 long ton
Classification
C ✠ HULL • MACH Y
Diesel oil
45˙530 lt
12˙027 gal
Urea
2˙270 lt
600 gal
Fresh water
6˙330 lt
1˙672 gal
Black water
1˙100 lt
290 gal
Grey water
13˙070 lt
3˙453 gal
Clean oil / Dirty oil
420 / 420 lt
111 / 111 gal
Bilge
1˙100 lt
290 gal

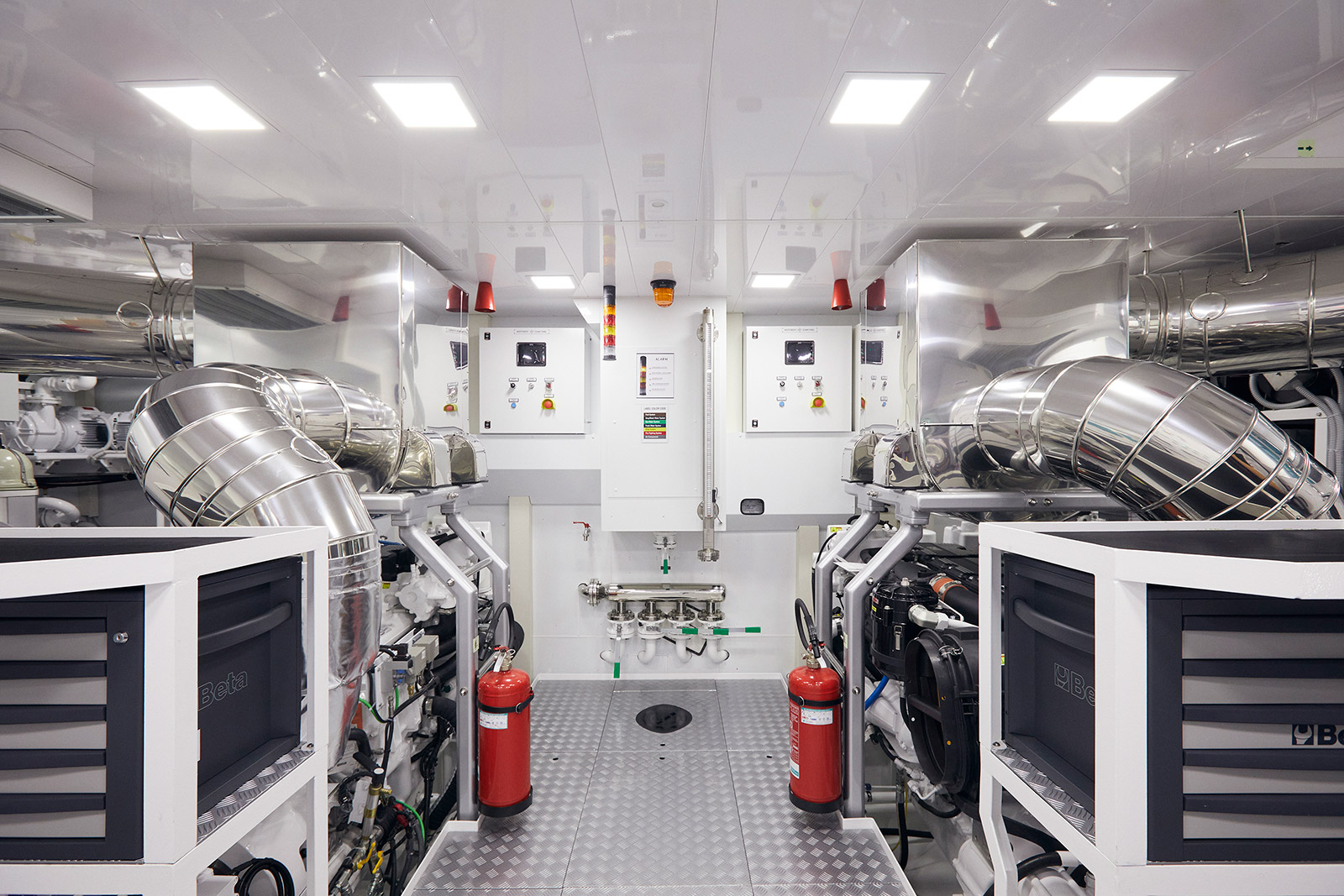

Engines
2xCaterpillar C18 ACERT (533kW @1˙800-2˙100rpm) C RATING
Gearbox
2x ZF W650 free standing - gear ratio 4,057:1

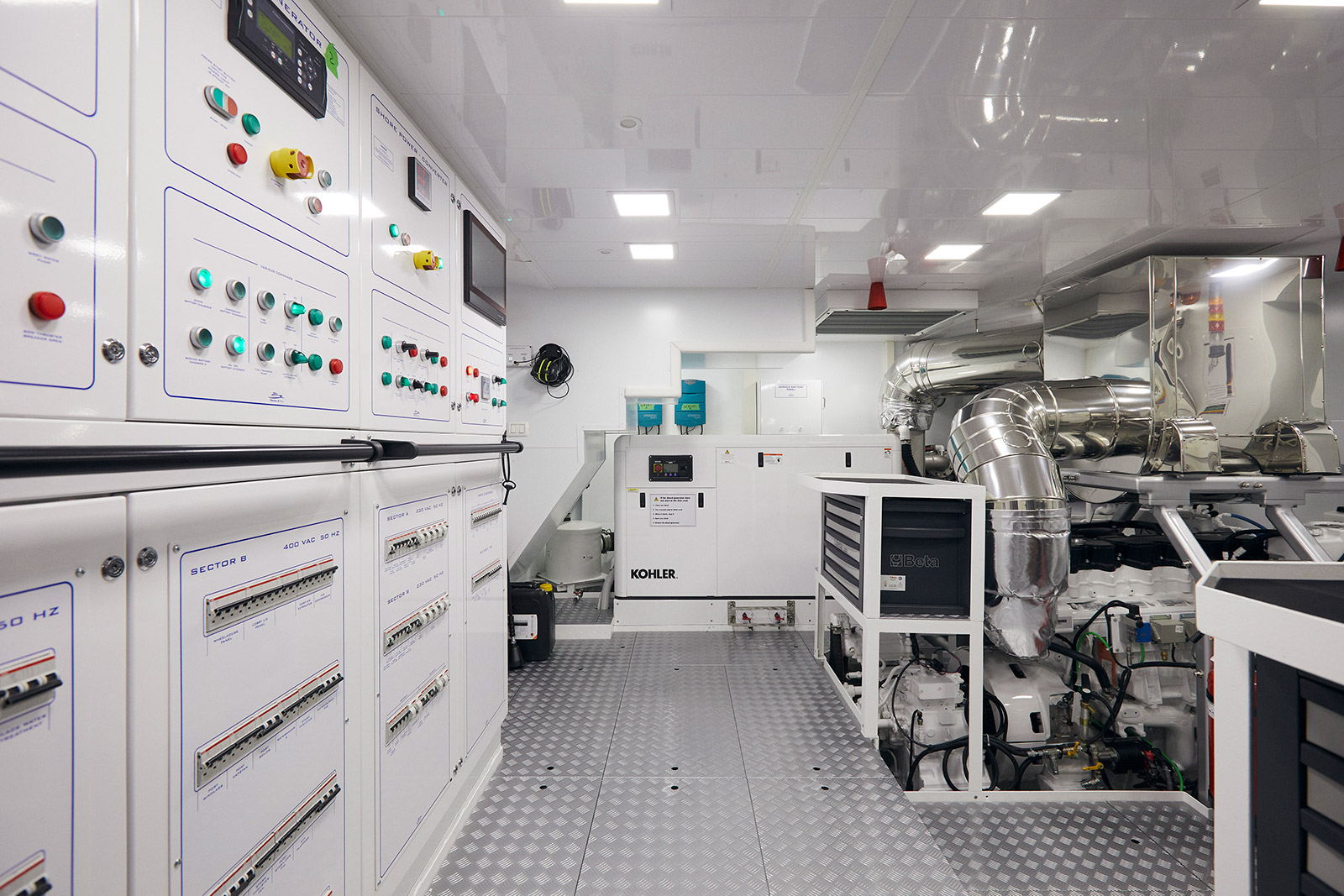

Generator
2x55 kW Kohler
Bow thruster / Stern thruster
75 kW
Stabilizer fins
Electrical, Zero Speed
Maximum speed
13,5 Knots
Cruise speed
12 (@1800 rpm) Knots
Range
5˙500 nm @ 9 Knots
Passengers
10 (+2 Pullman Bed) / 5 Cabins
Crew
7 / 4 Cabins

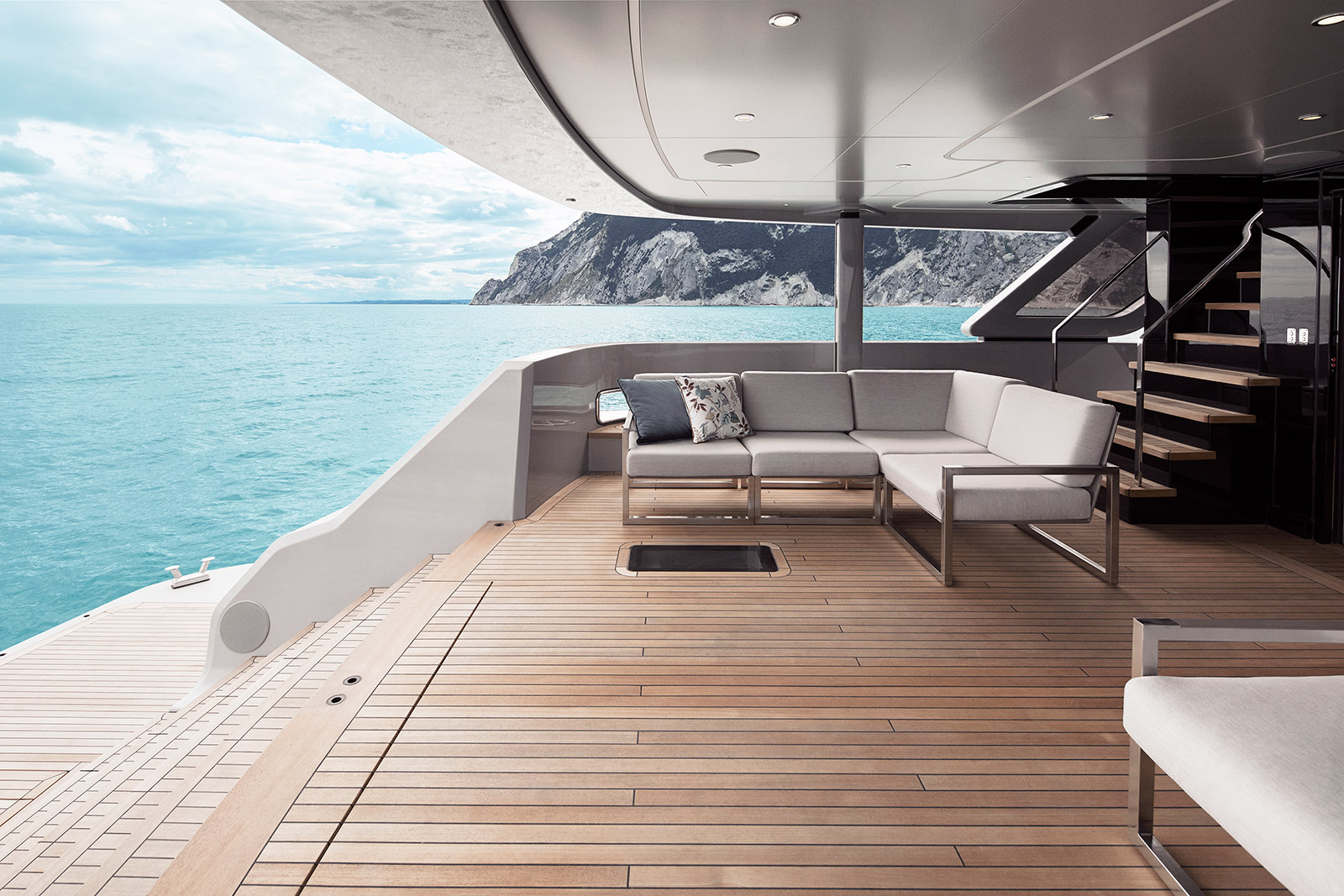

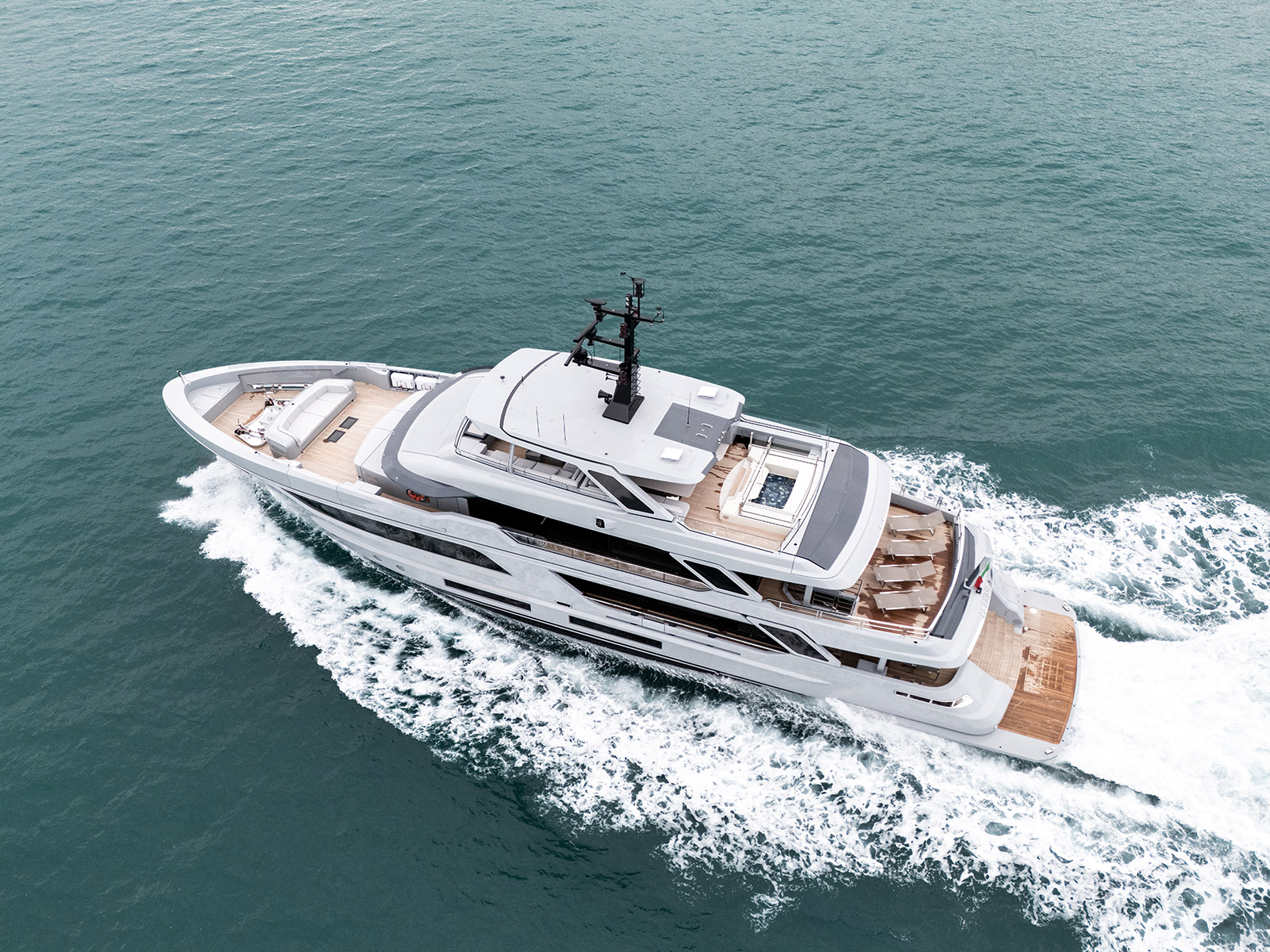

An extensive use of glass in the bulwarks and the open stern enhance the visual continuity with the surrounding environment.

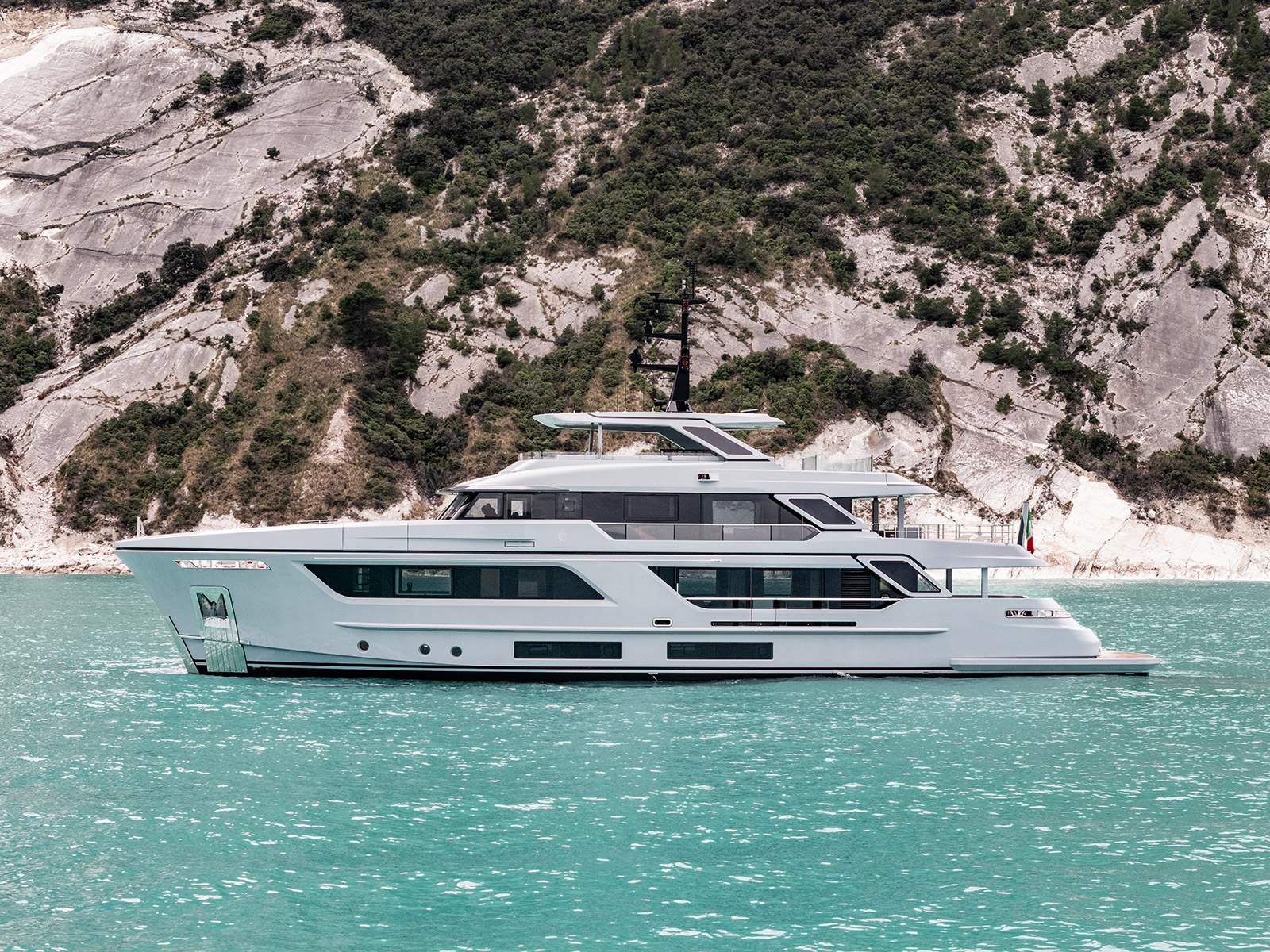

Stellamar’s profile is tense yet it encompasses sensuous lines that add an unrivalled elegance to her exterior design. With this project, Francesco Paszkowski shows that medium size dimensions are not the enemy of creativity as they make it more effective. Paszkowski succeeded in providing the 35m yacht with large spaces and luxury amenities while staying true to her explorer yacht’s soul.
