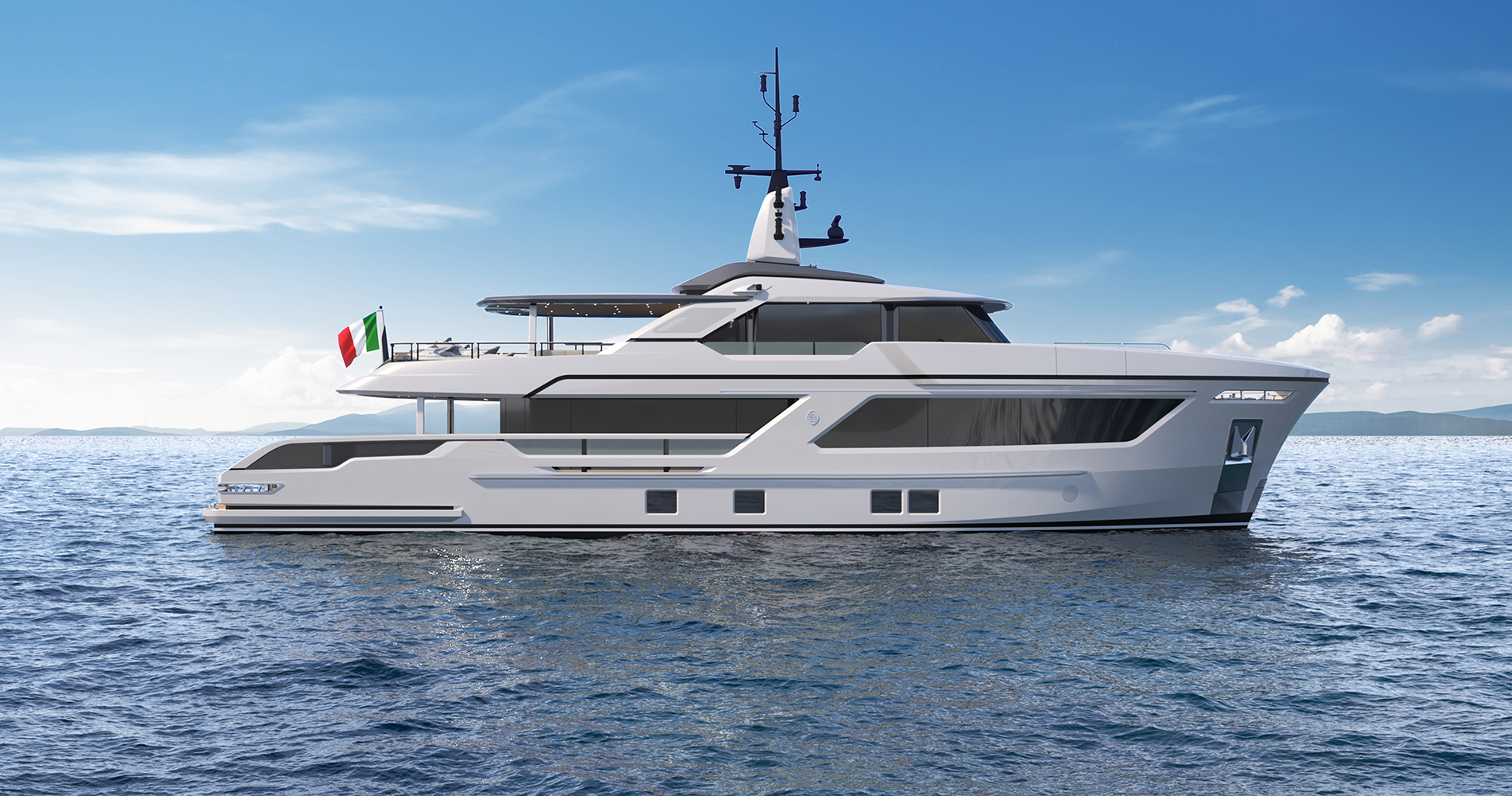

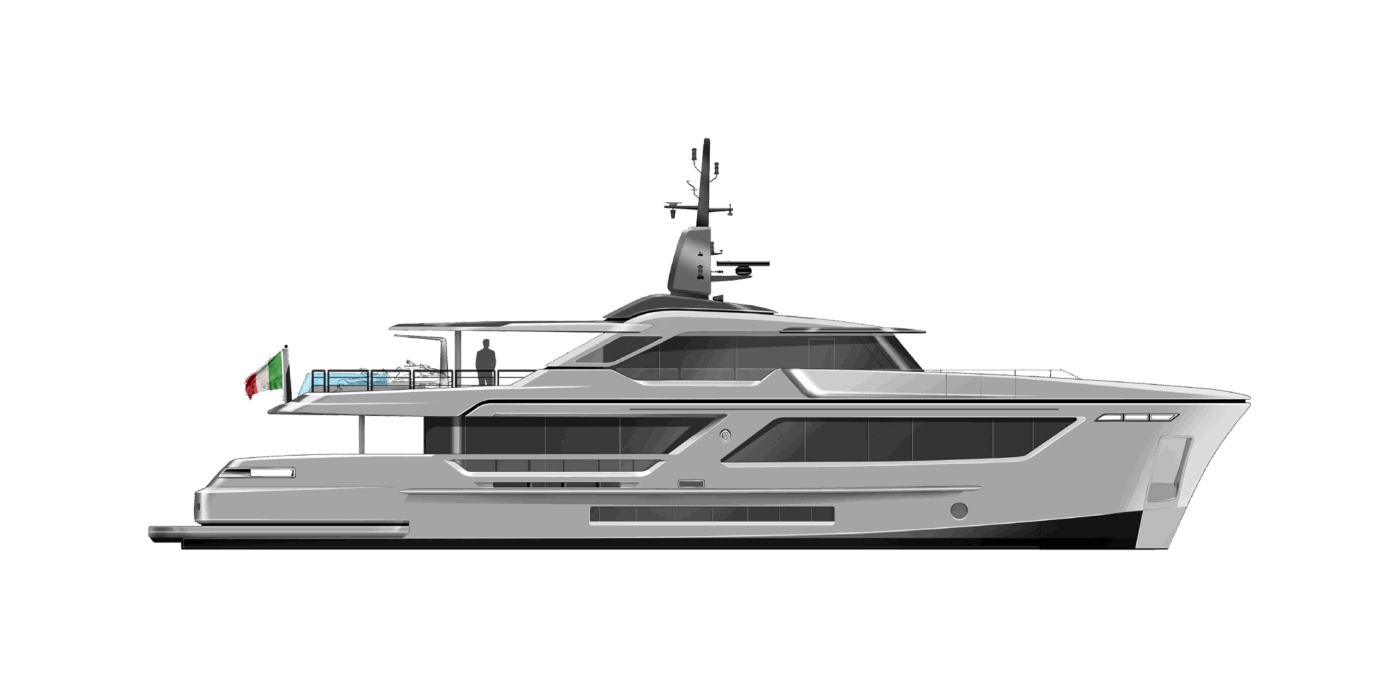

The RJ 102 project pays respect to the most exquisite yacht design tradition while implementing it with highly sophisticated design solutions.
Lenght range 31,00 x 7,30 mt
Exterior design Francesco Paszkowski
Material Steel
Aluminium
Aluminium

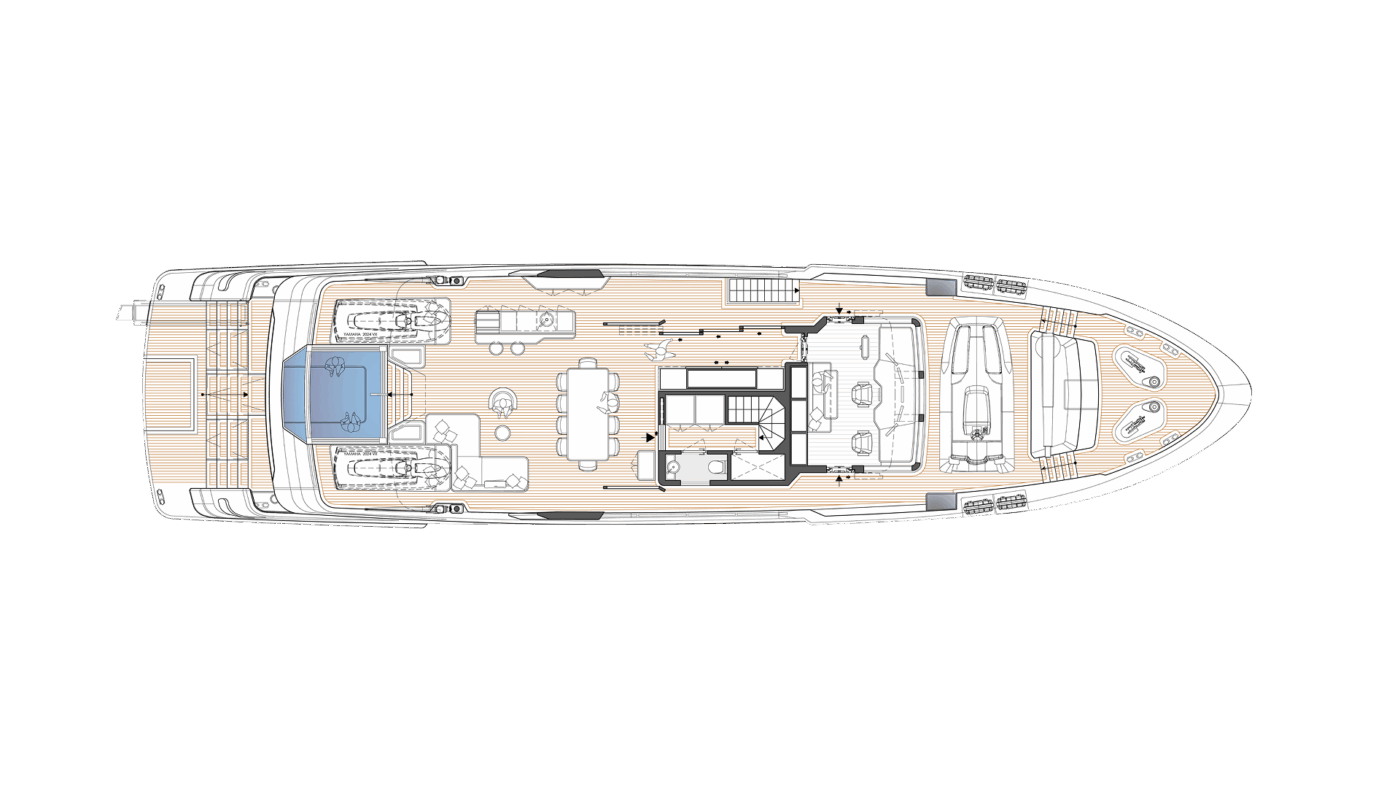

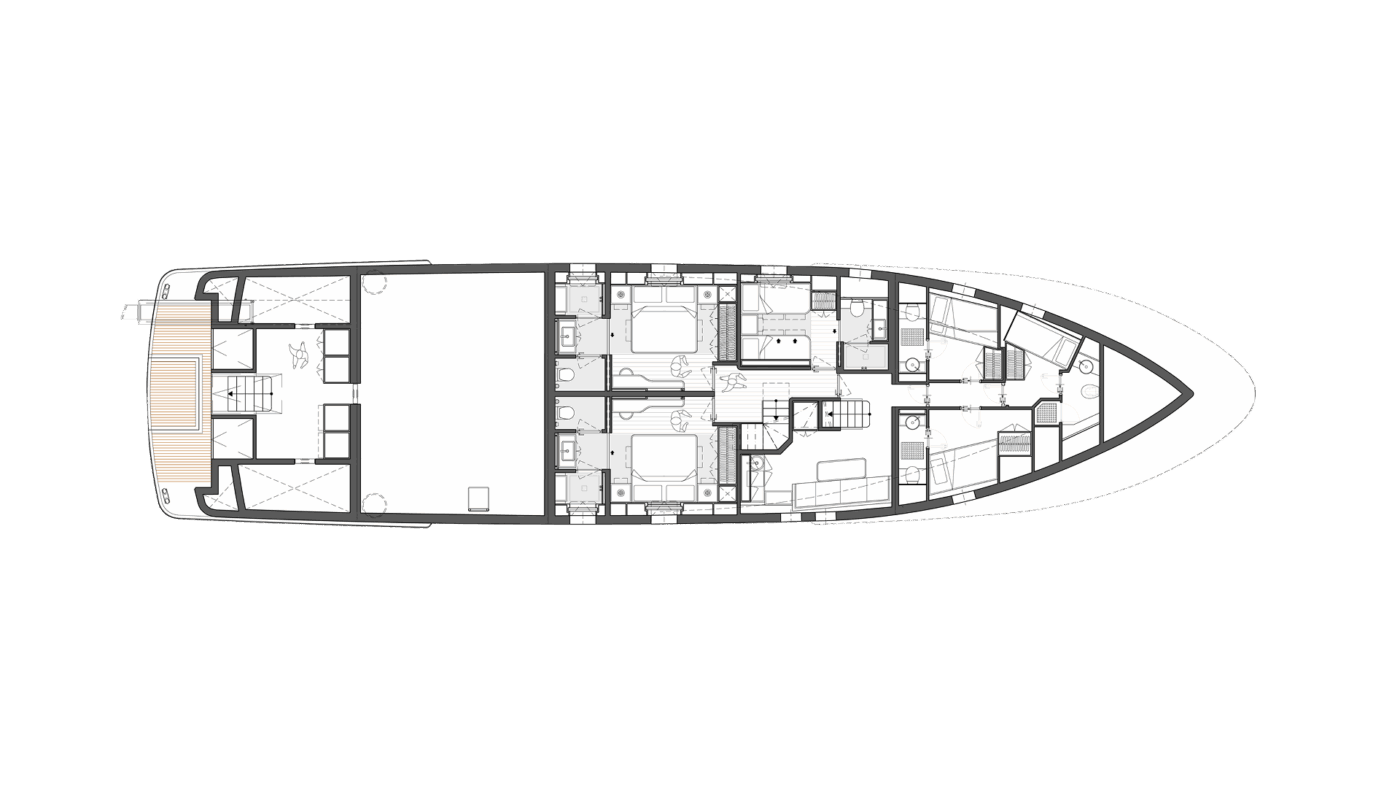

General plan
Specifications
Length overall
31 m
101.7 ft
Waterline length
29 m
95.1 ft
Max beam
7,3 m
23.9 ft
Depth, amidship
3,9 m
12.7 ft
Draught, full load under the keel
2,4 m
7.8 ft
Displacement, full load
265 t
269 long ton
Classification
C ✠ HULL • MACH Y
Diesel oil
35˙000 lt
9˙246 gal
Urea
1˙500 lt
396,2 gal
Fresh water
5˙500 lt
1˙452,9 gal
Black water
1˙000 lt
264 gal
Grey water
2˙000 lt
528,3 gal
Clean oil / Dirty oil
250 / 250 lt
66 / 66 gal
Bilge
500 lt
132 gal
Engines
2xCaterpillar C18 ACERT IMO tier 3 (500kW @1˙800-2˙100rpm RATING B)
Gearbox
2x Reintjes, ratio 4:1
Generator
2x55 kW Kohler
Bow thruster / Stern thruster
52 kW
Stabilizer fins
Electrical, Zero Speed
Maximum speed
13 Knots
Cruise speed
10 Knots
Range
4˙000 nm @ 10 Knots
Passengers
8 (+ 1 Pullman Bed) p / 4 Cabins
Crew
5 / 3 Cabins

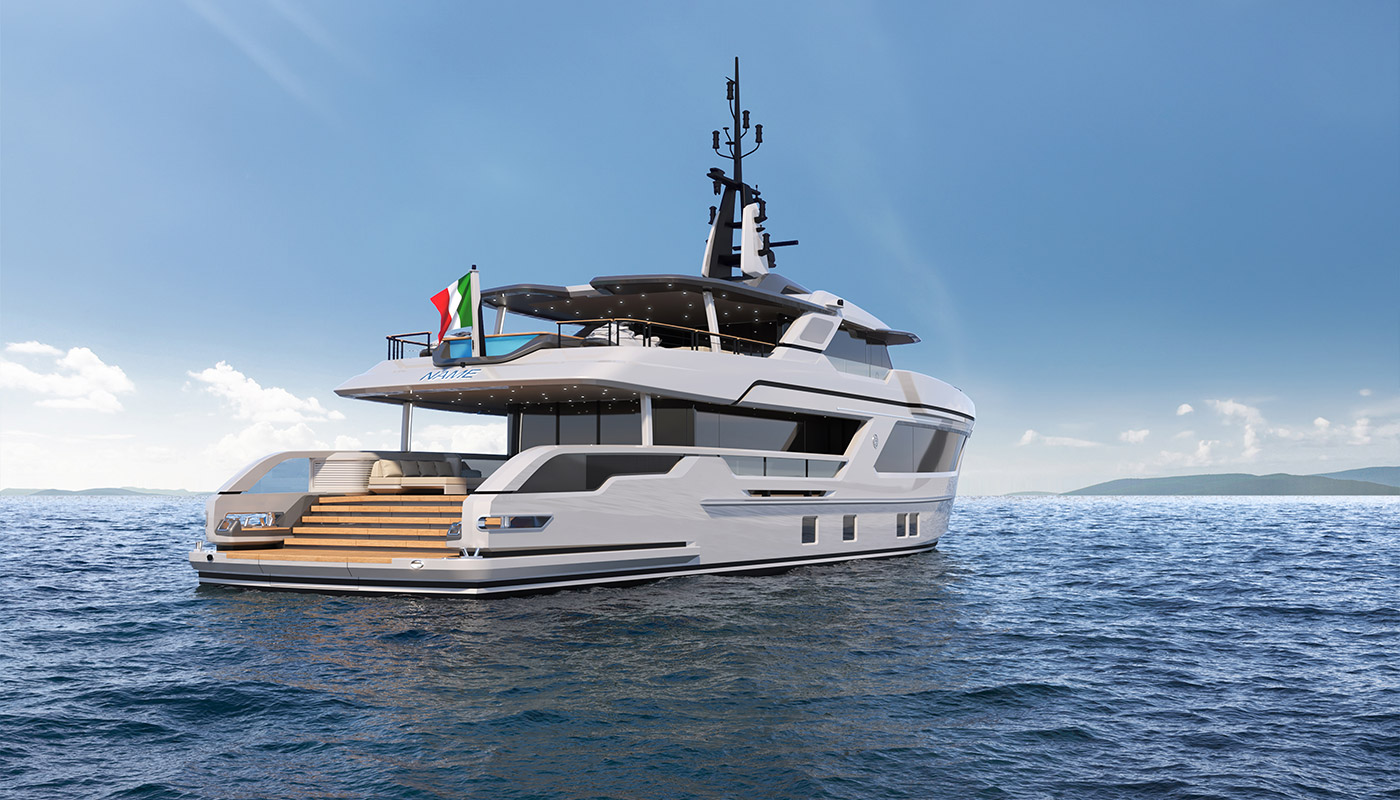

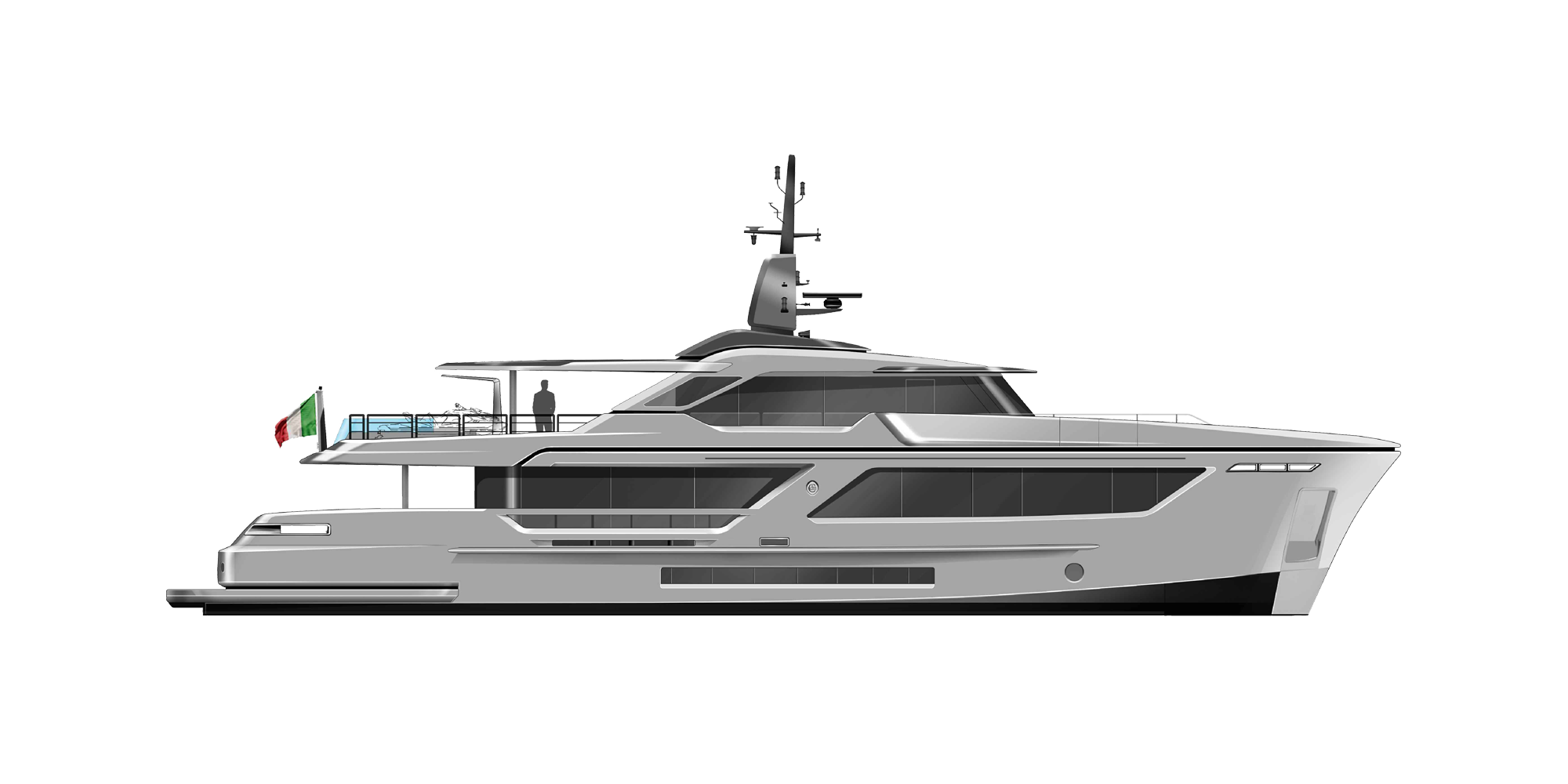

An extensive use of glass in the bulwarks and the open stern enhance the visual continuity with the surrounding environment. Stellamar’s profile is tense yet it encompasses sensuous lines that add an unrivalled elegance to her exterior design
With this project, Francesco Paszkowski shows that medium size dimensions are not the enemy of creativity as they make it more effective. Paszkowski succeeded in providing the 31m yacht with large spaces and luxury amenities while staying true to her explorer yacht’s soul.
