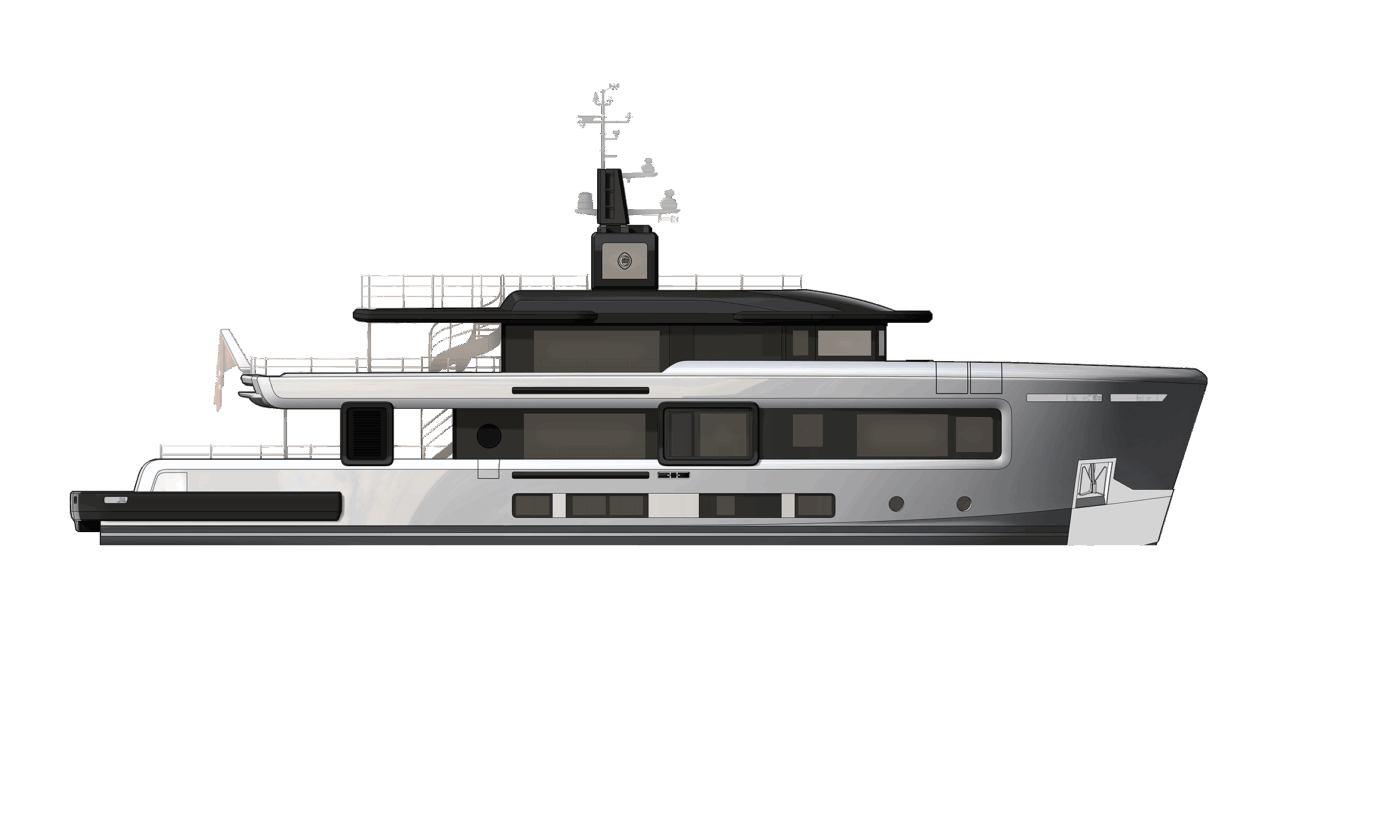

The decision to create a 110-foot model was driven by the need to maintain our leadership in a challenging market segment.
Lenght range 33,87 x 7,48 mt
Exterior design Giorgio M. Cassetta
Material Steel
Aluminium
Aluminium

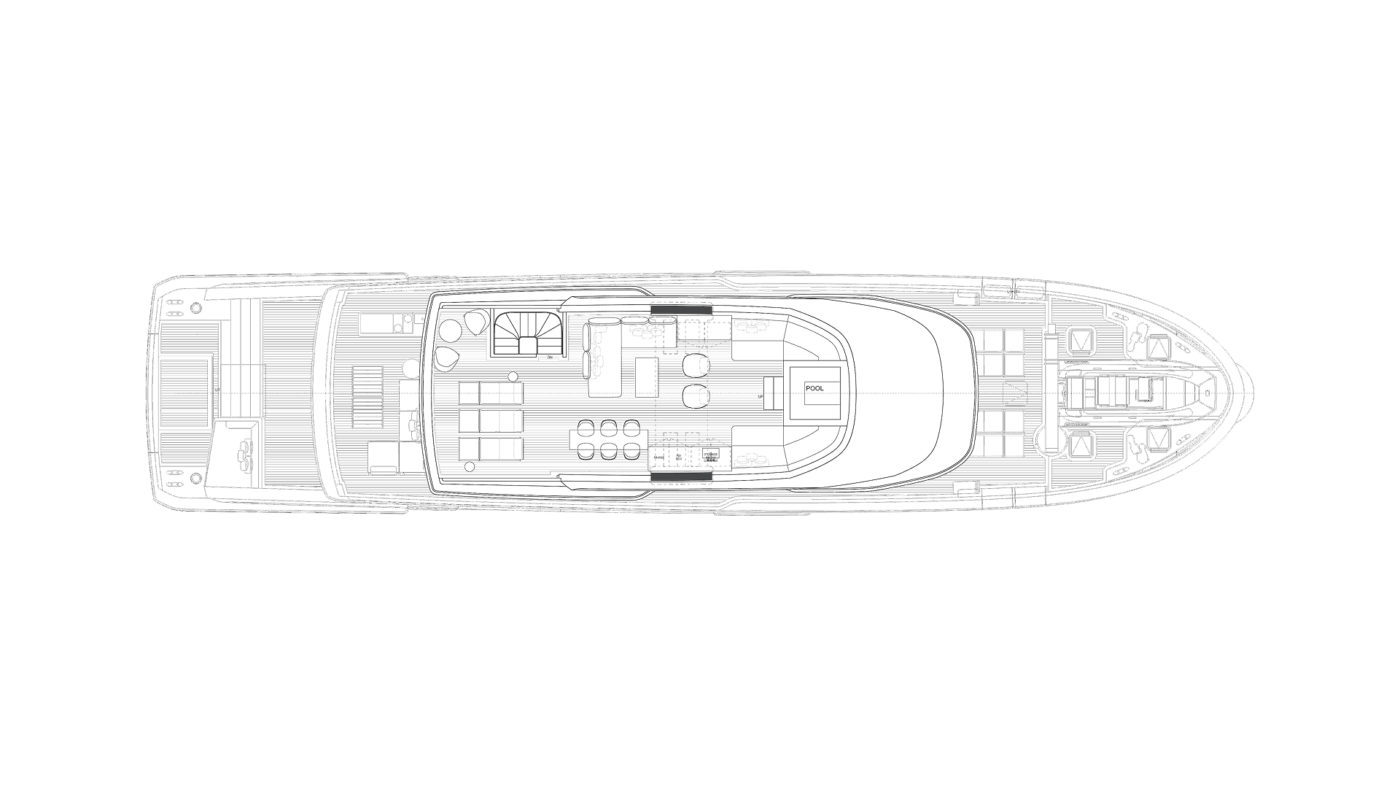

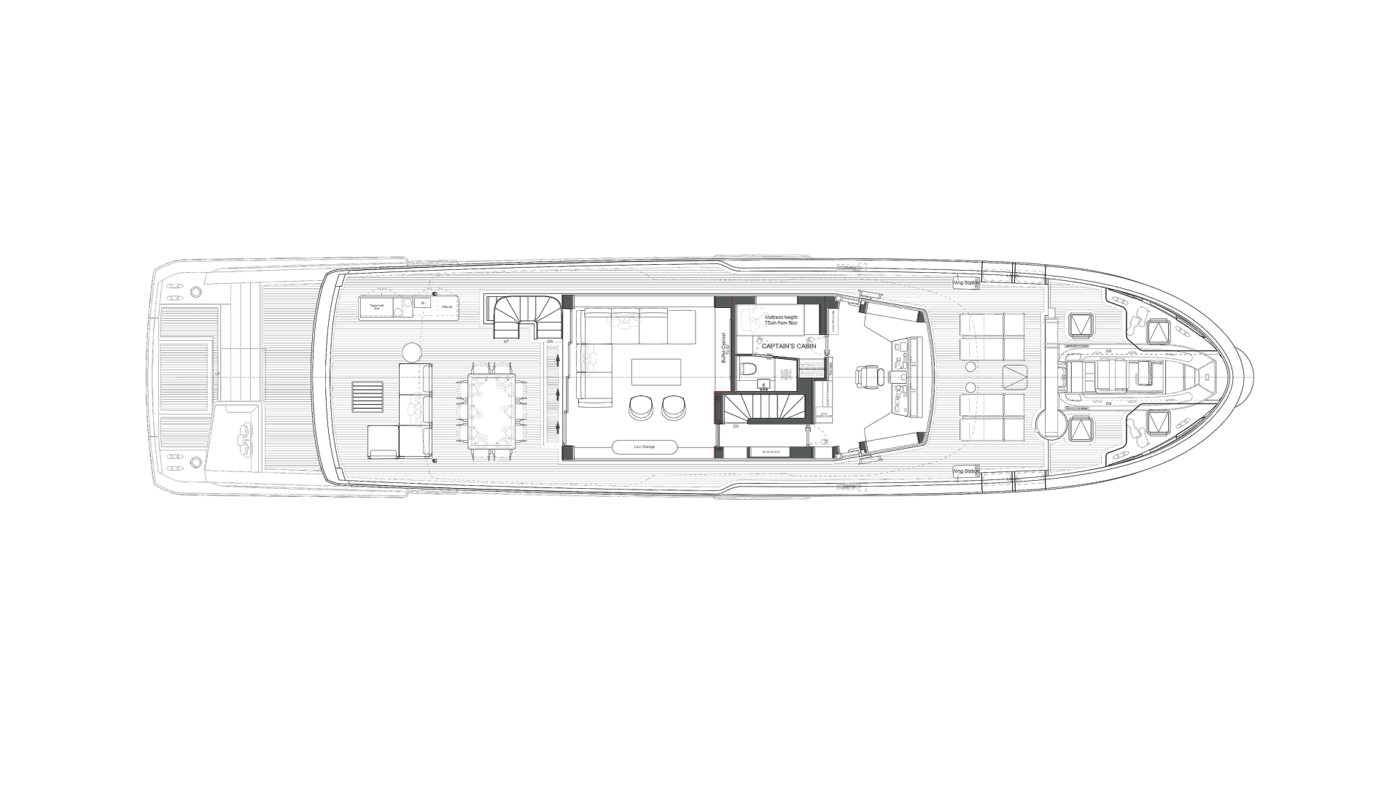

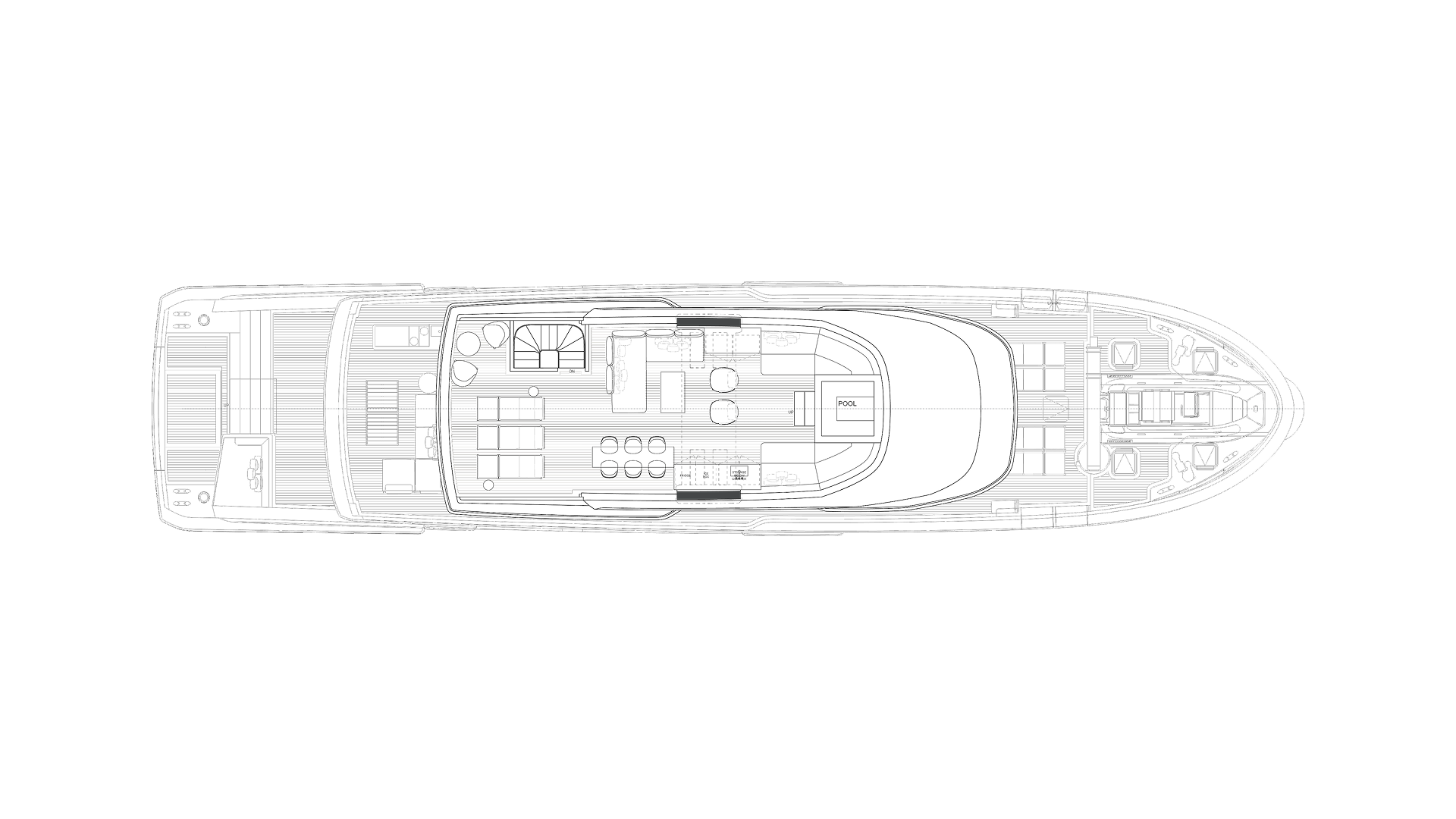

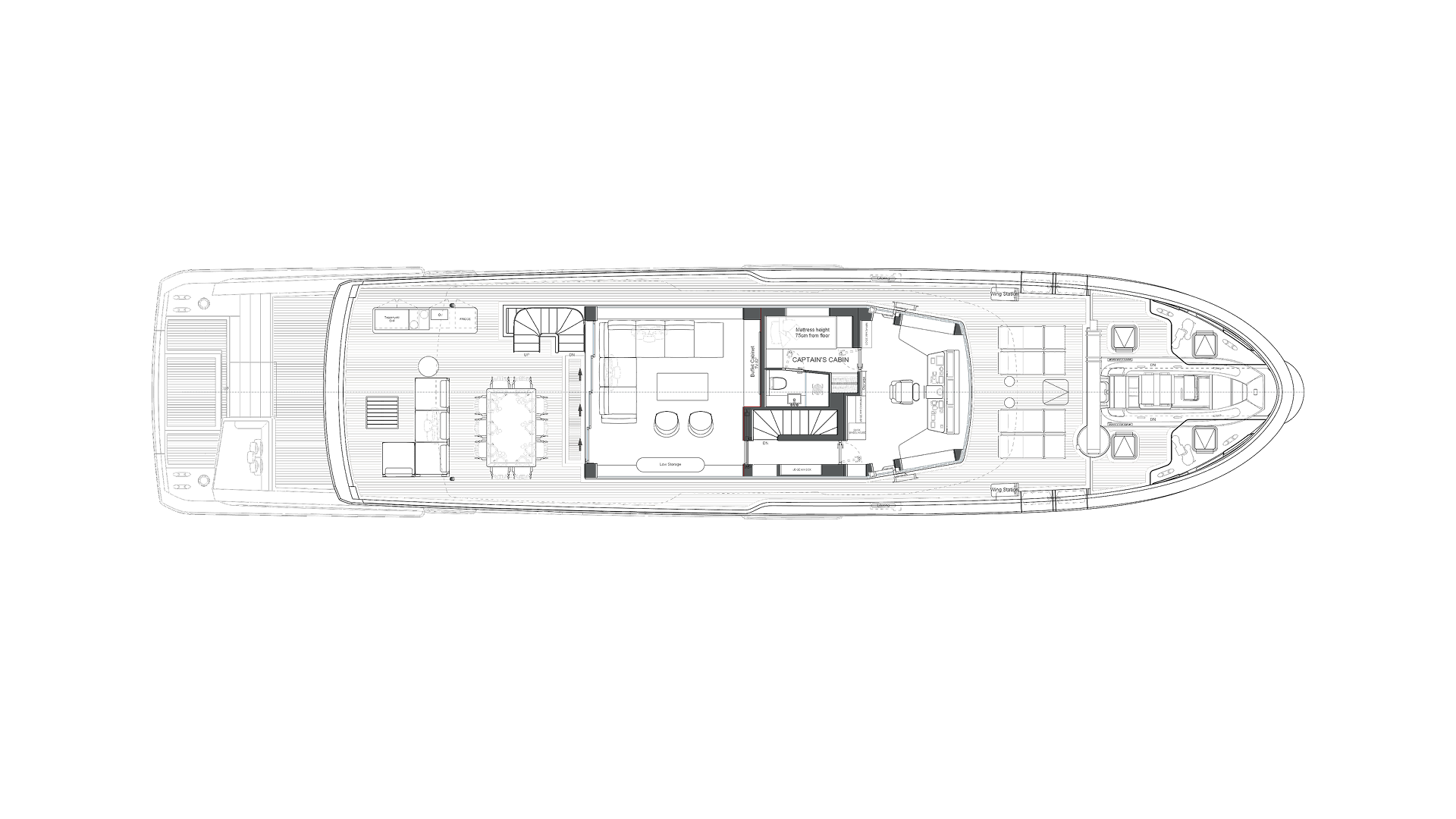

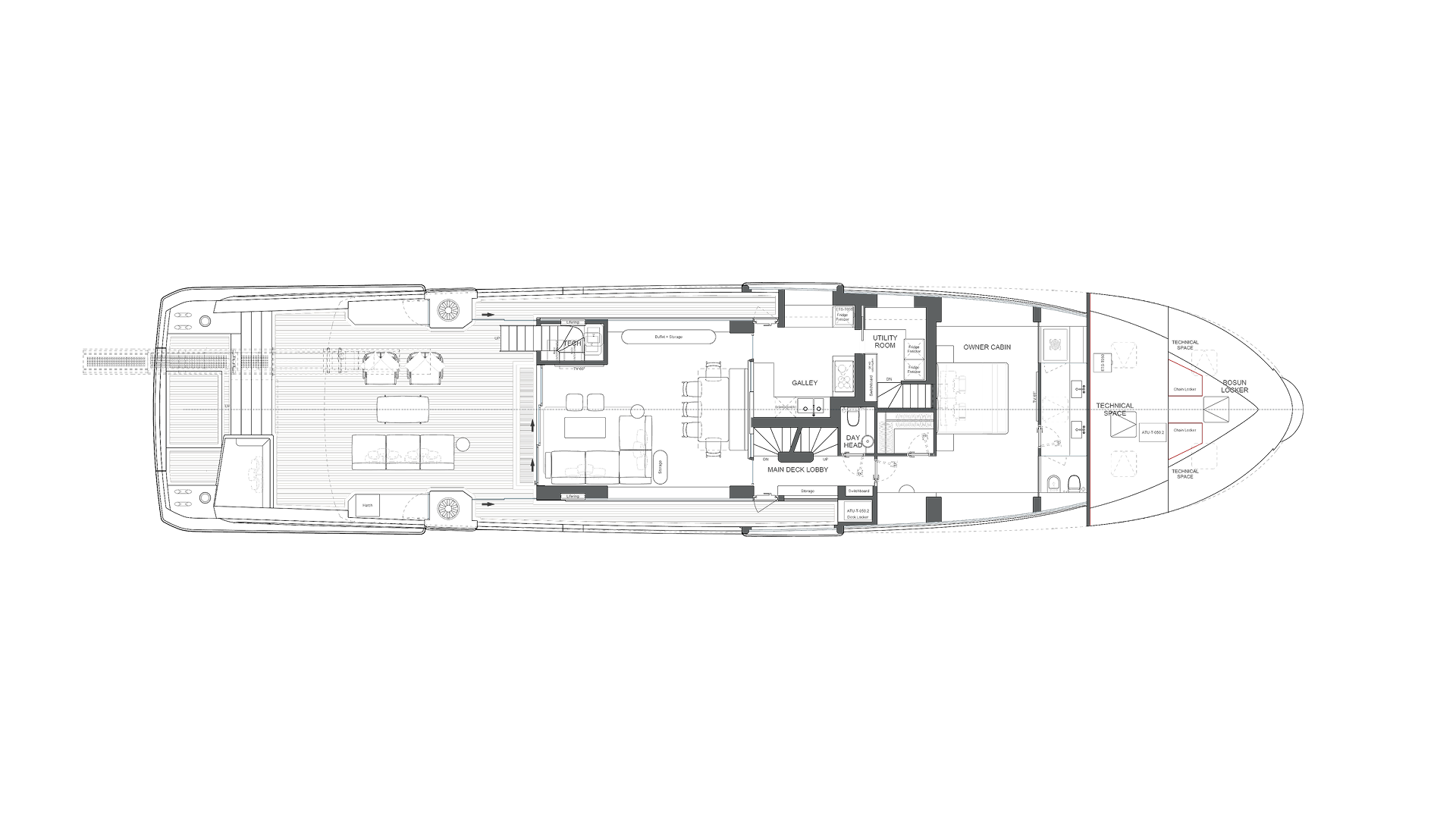

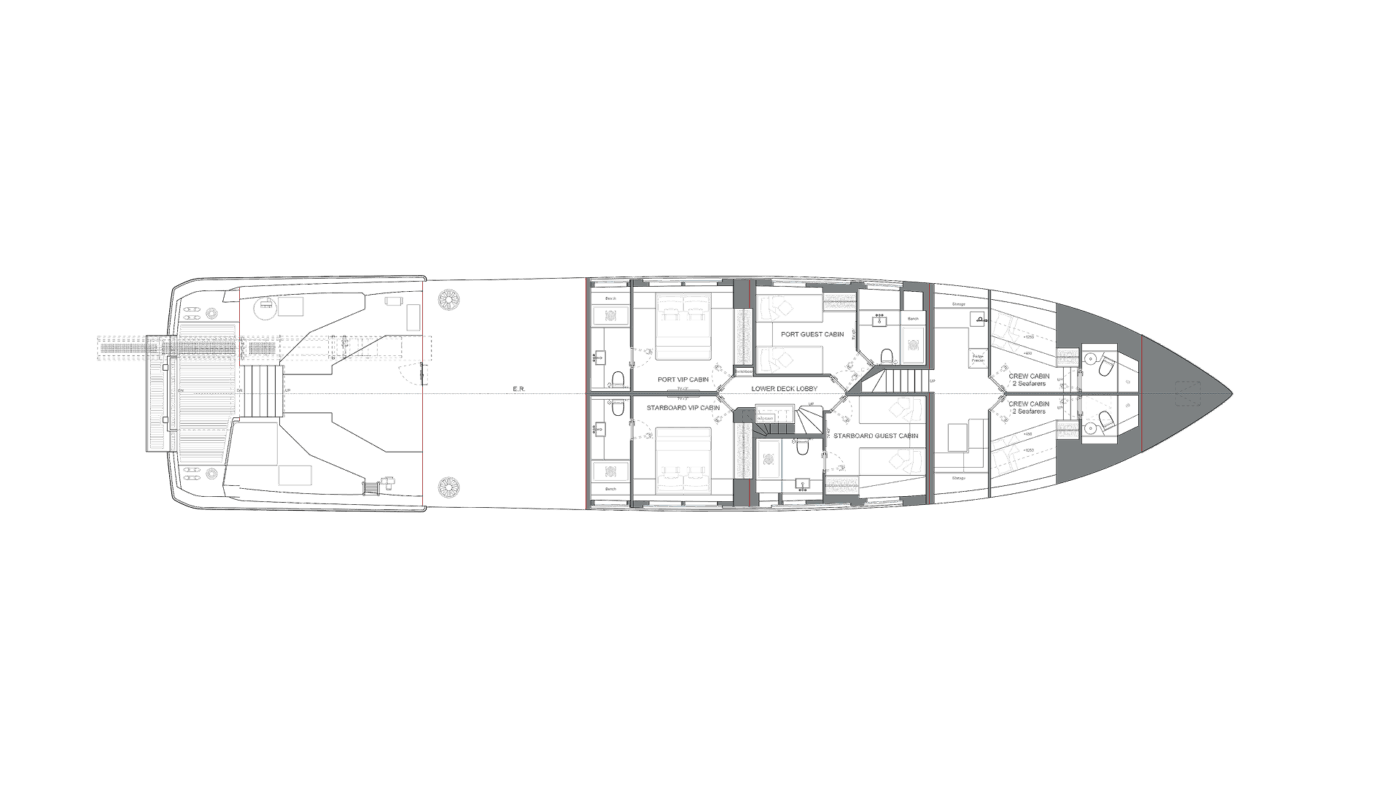

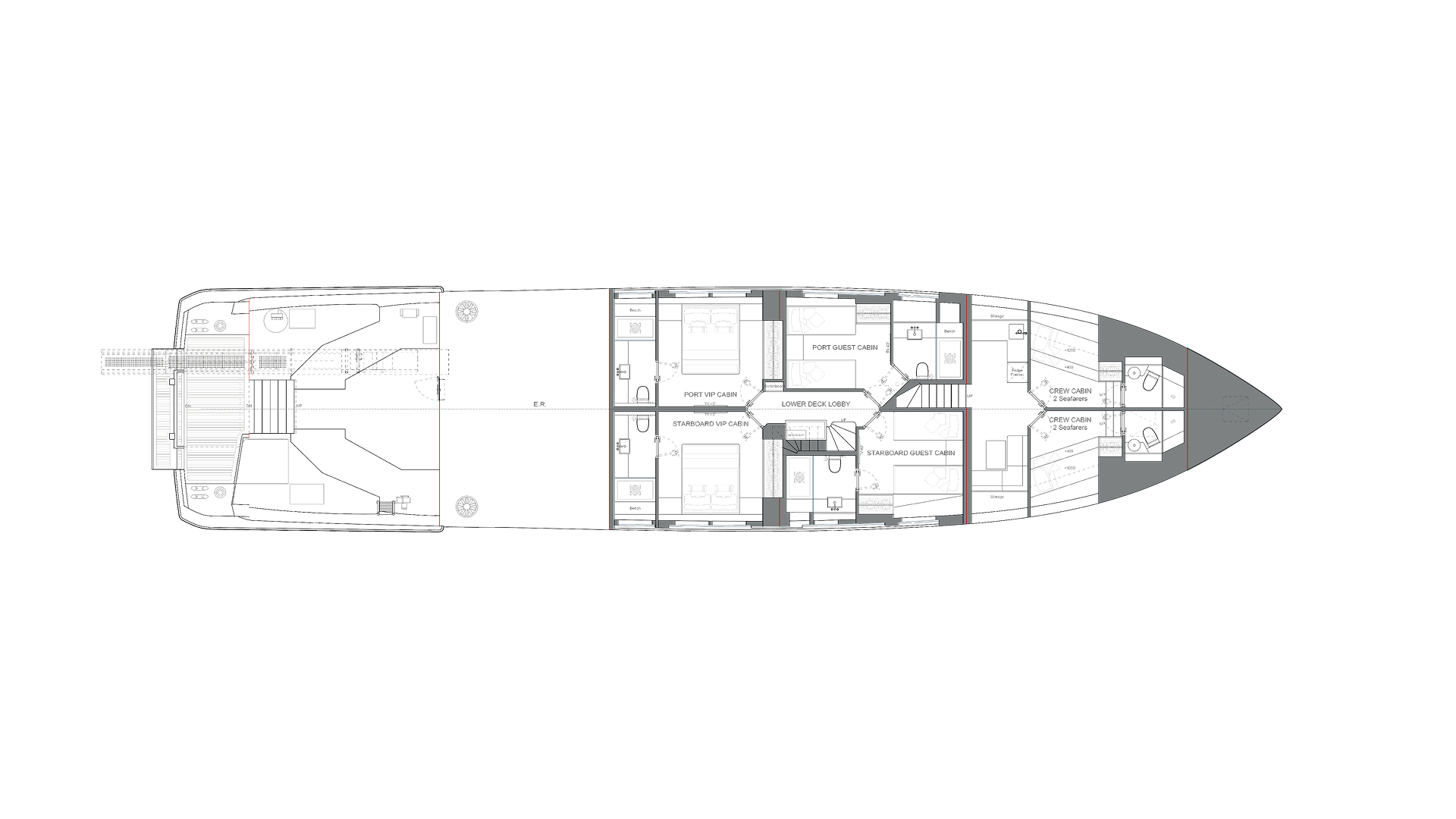

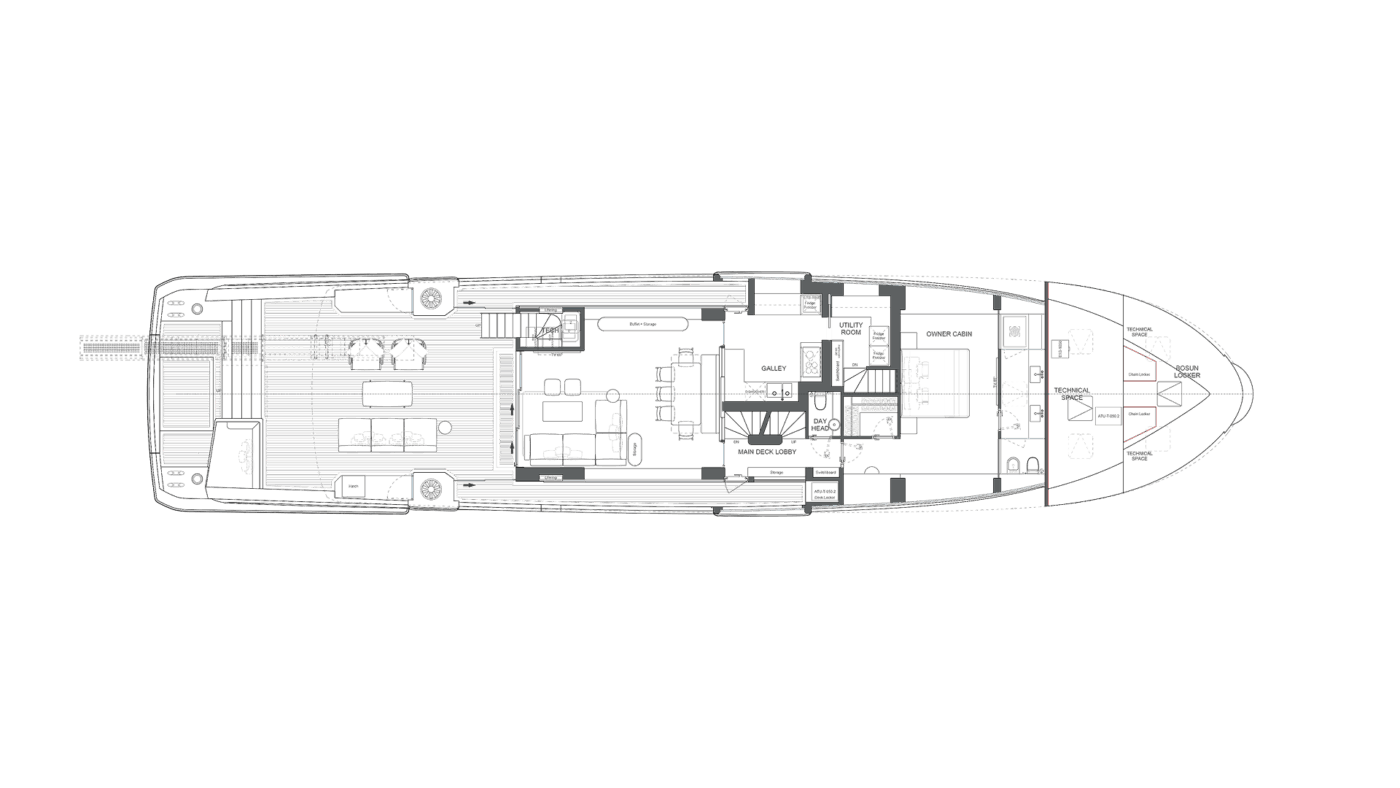

General plan
Specifications
Length overall
33,87 m
110 ft
Waterline length
31,24 m
101.7 ft
Max beam
7,48 m
23.6 ft
Depth, amidship
3,87 m
12.8 ft
Draught, full load under the keel
2,45 m
7.7 ft
Displacement, full load
298 t
Classification
C HULL • MACH Y
Diesel oil
39˙500 lt
10˙434 gal
Urea
1˙700 ca lt
449 ab gal
Fresh water
5˙300 lt
1˙400 gal
Black water
800 lt
211 gal
Grey water
6˙000 lt
1˙585 gal
Clean oil / Dirty oil
600 / 500 lt
158 / 132 gal
Bilge
850 lt
224 gal
Engines
2xCaterpillar C18 ACERT (533kW @2˙100rpm) Rating C
Gearbox
2x ZF W650L - gear ratio 4,057:1
Generator
2x55 kW Kohler
Bow thruster
52 kW
Stabilizer fins
Electrical, Zero Speed
Maximum speed
13,5 Knots
Cruise speed
11,5 Knots
Range
4˙200 nm @ 10 knots
Passengers
10 (+2 Pullman Bed) p / 5 Cabins
Crew
5 / 3 Cabins
This size allows RAW to deliver all thefeatures and performance expected from larger yachts while remaining versatile and easy to handle.
A 110-foot yacht offers an unbeatable balance between size and functionality, making it ideal for both first-time owners and seasoned yachtsmen looking for a more manageable yet fully capable vessel.
RAW is engineered to exceed the highest standards of performance, reliability, and luxury. Every aspect, from the smart use of space to the cutting-edge technology, showcases our dedication to designing a yacht that is both versatile and commanding.
