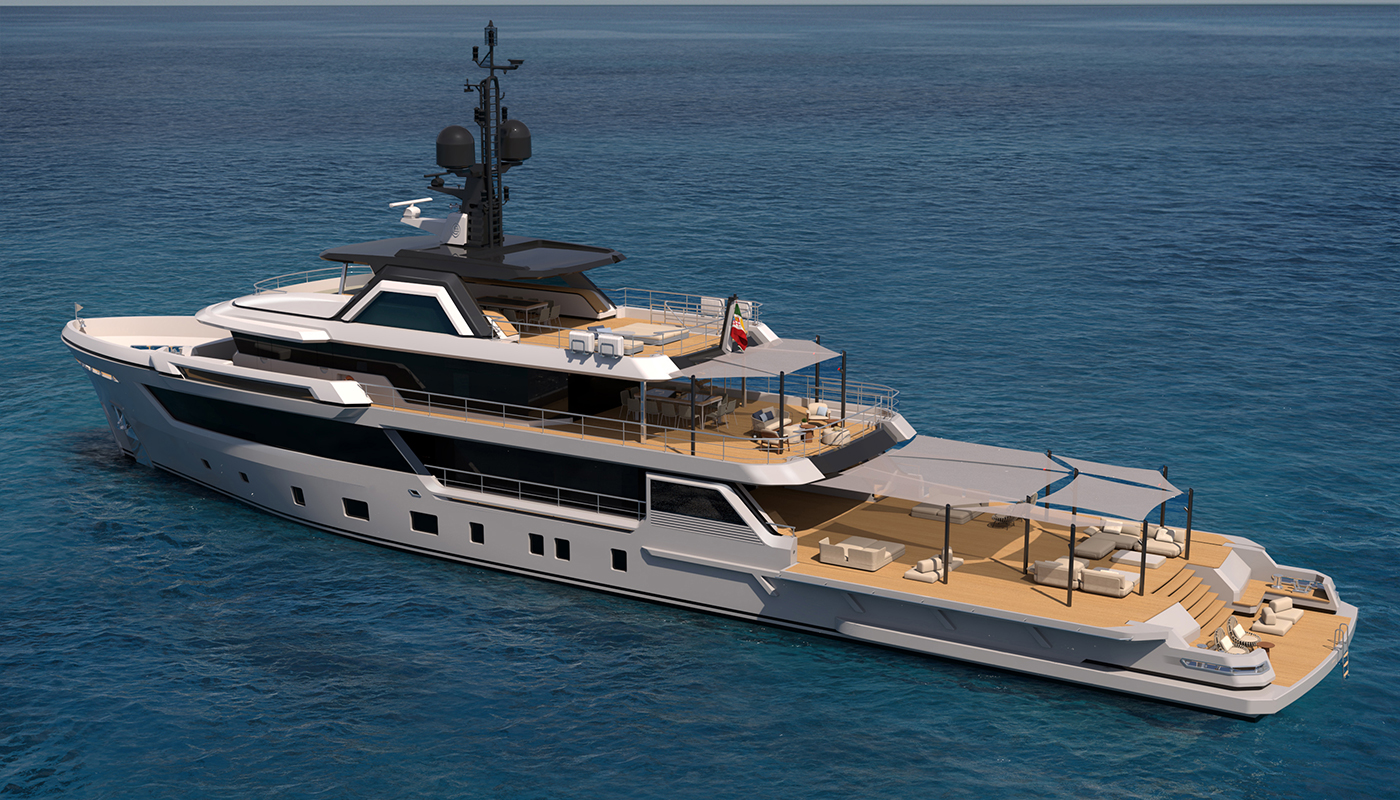

The Flexplorer 165 achieves an ideal harmony between indoor and outdoor areas with the sprawling Main deck aft as its focal point
Lenght range 49,90 x 9,00 mt
Exterior design Hydro Tec
Material Steel
Aluminium
Aluminium

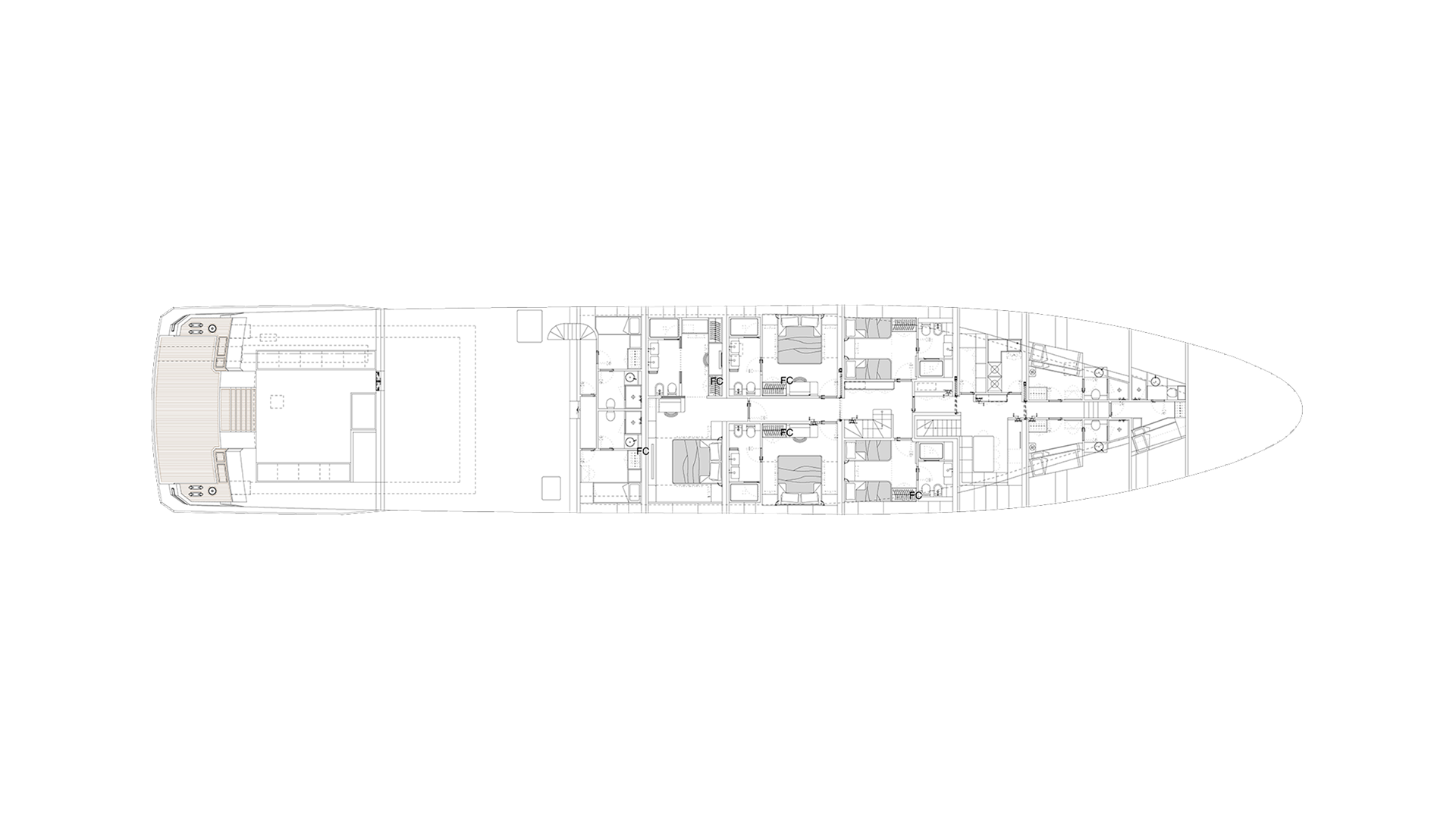

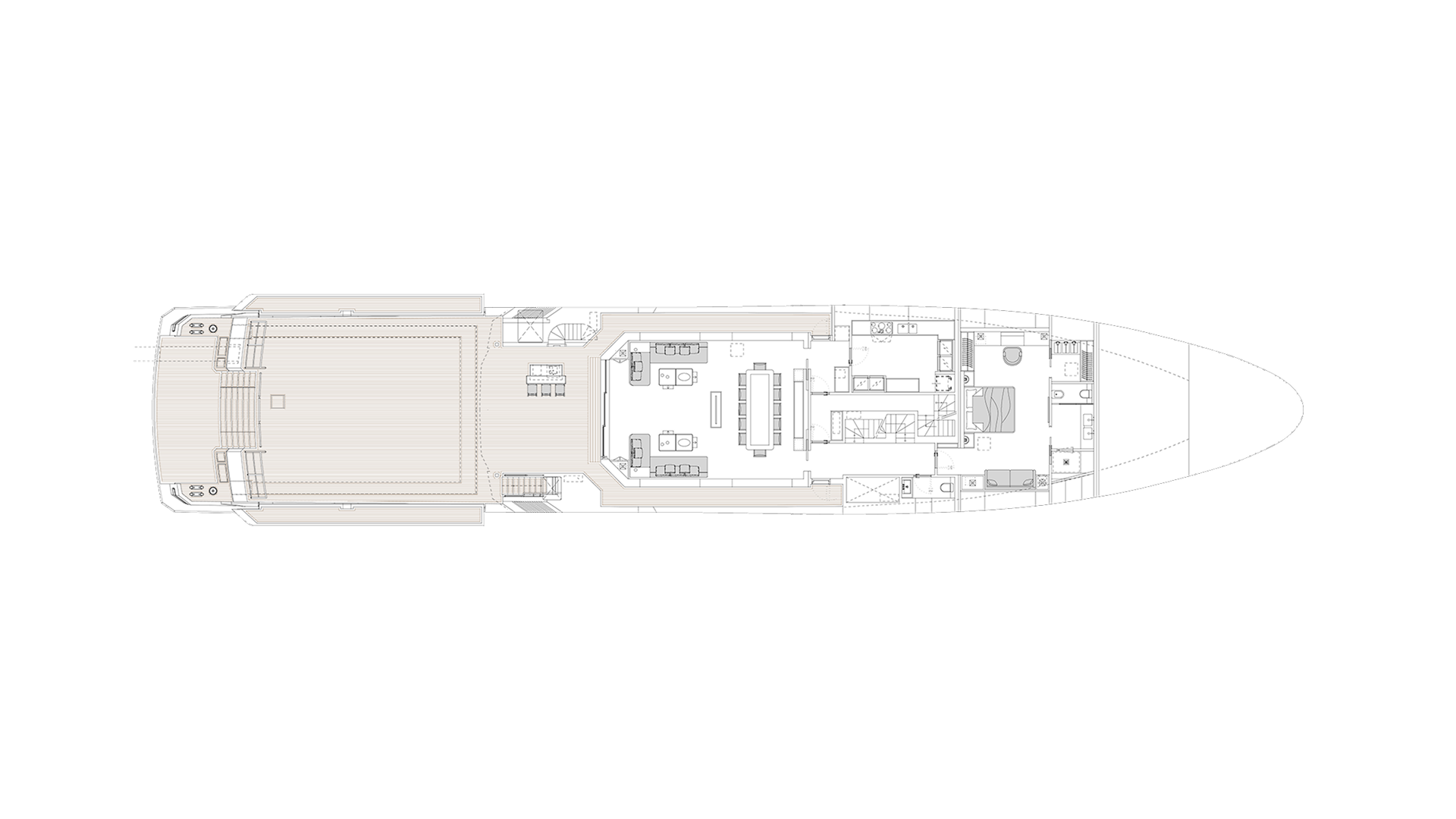

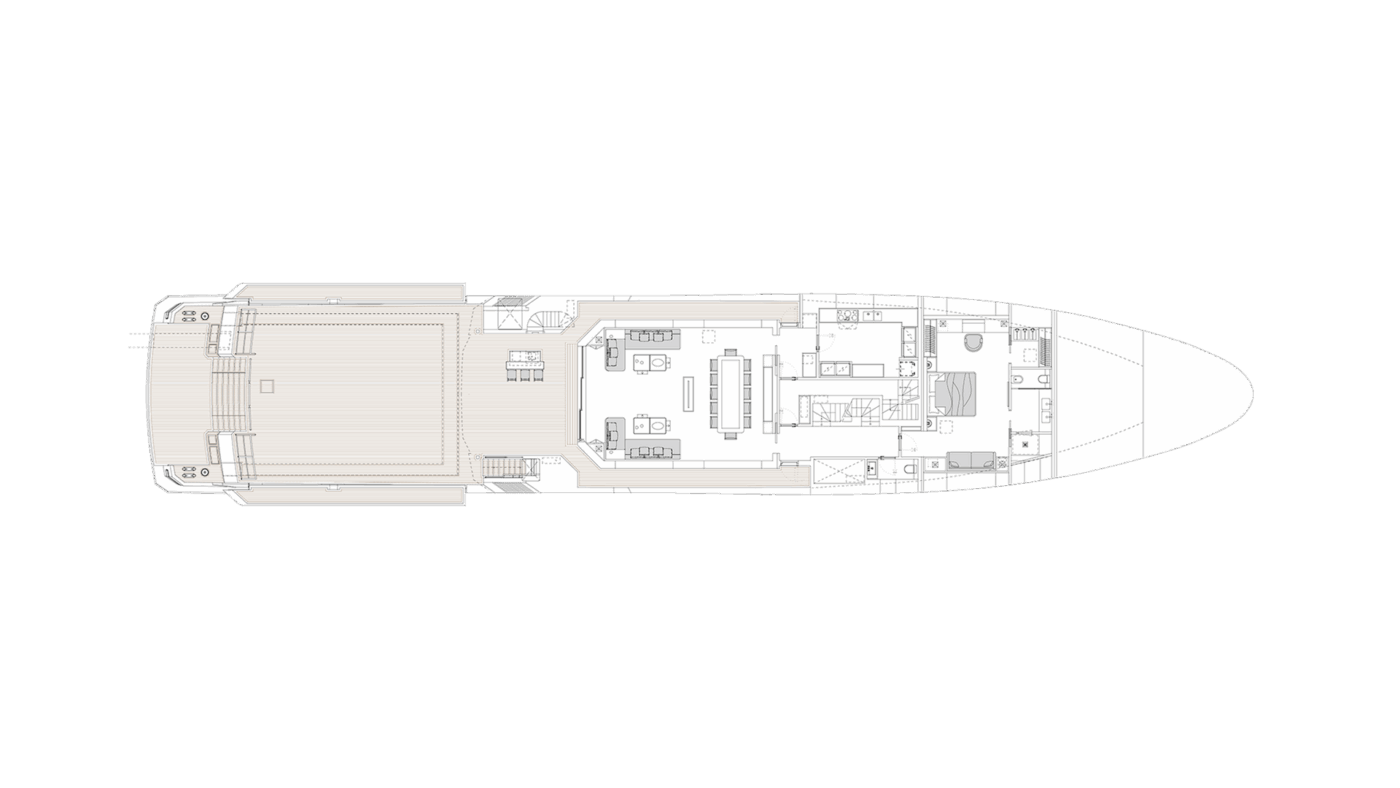

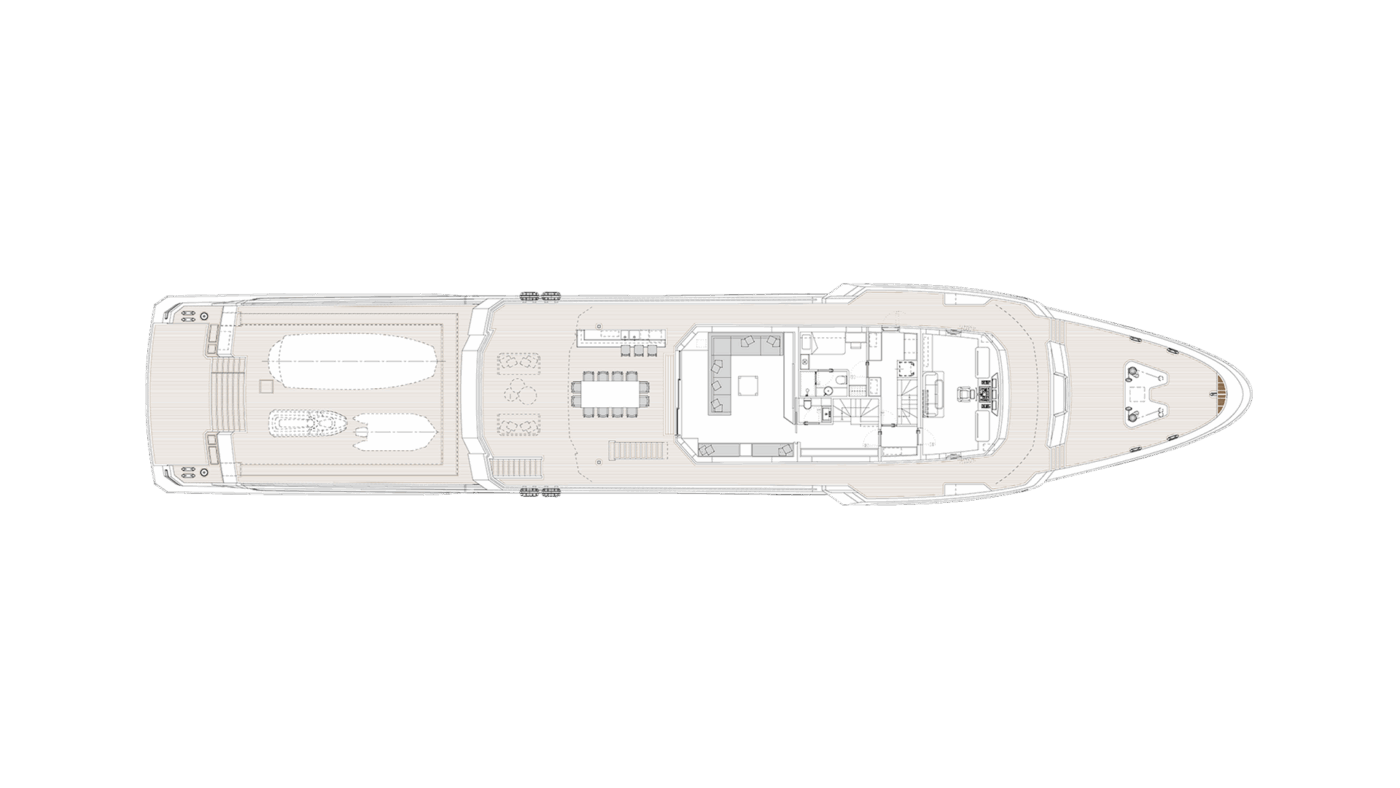

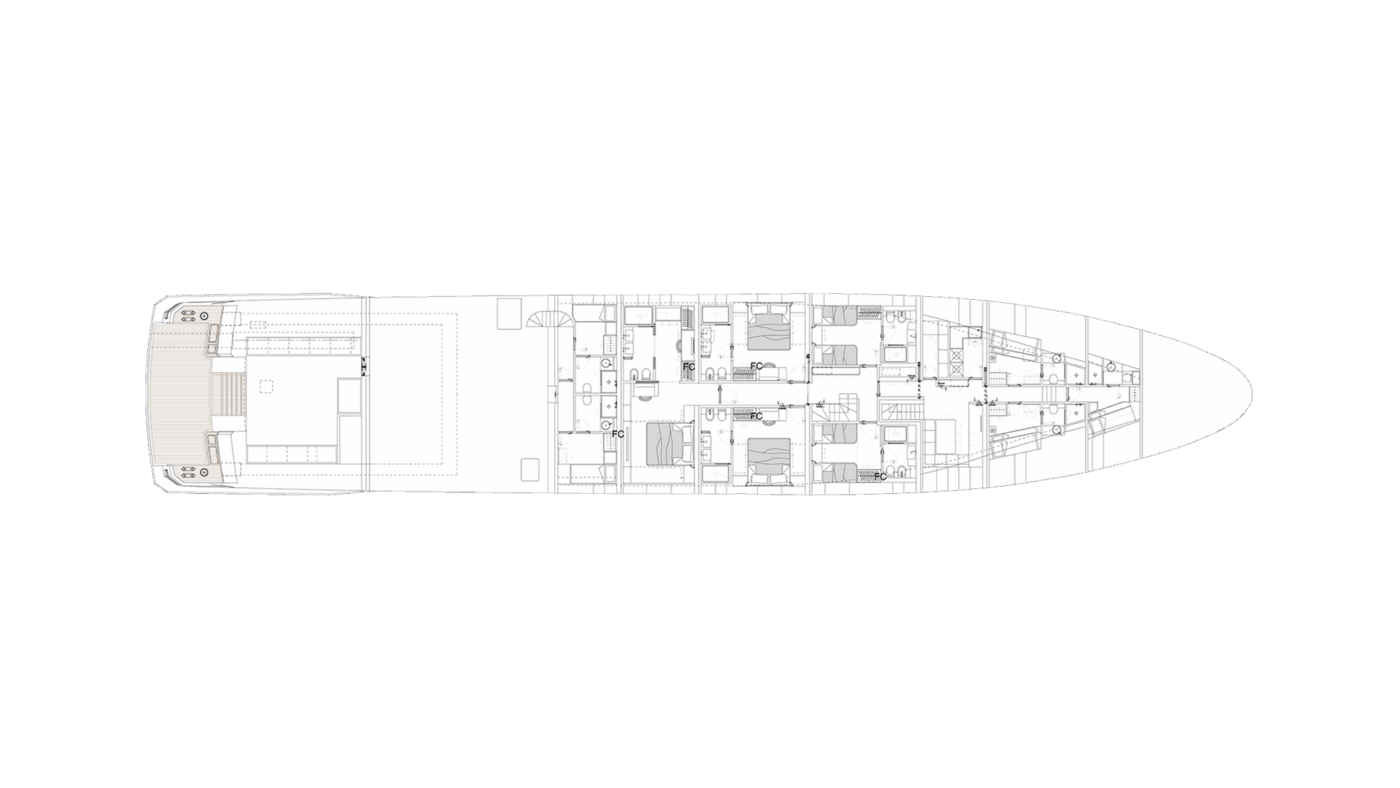

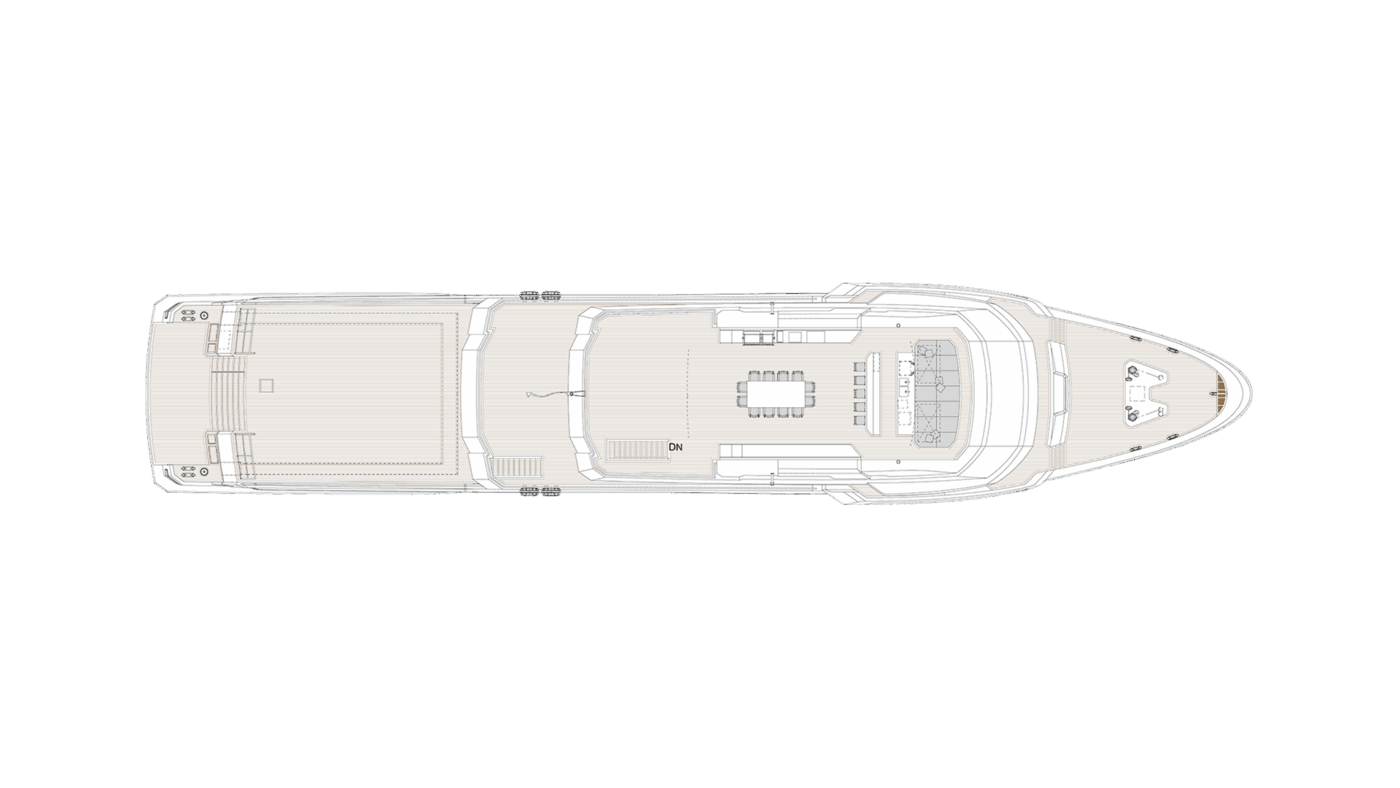

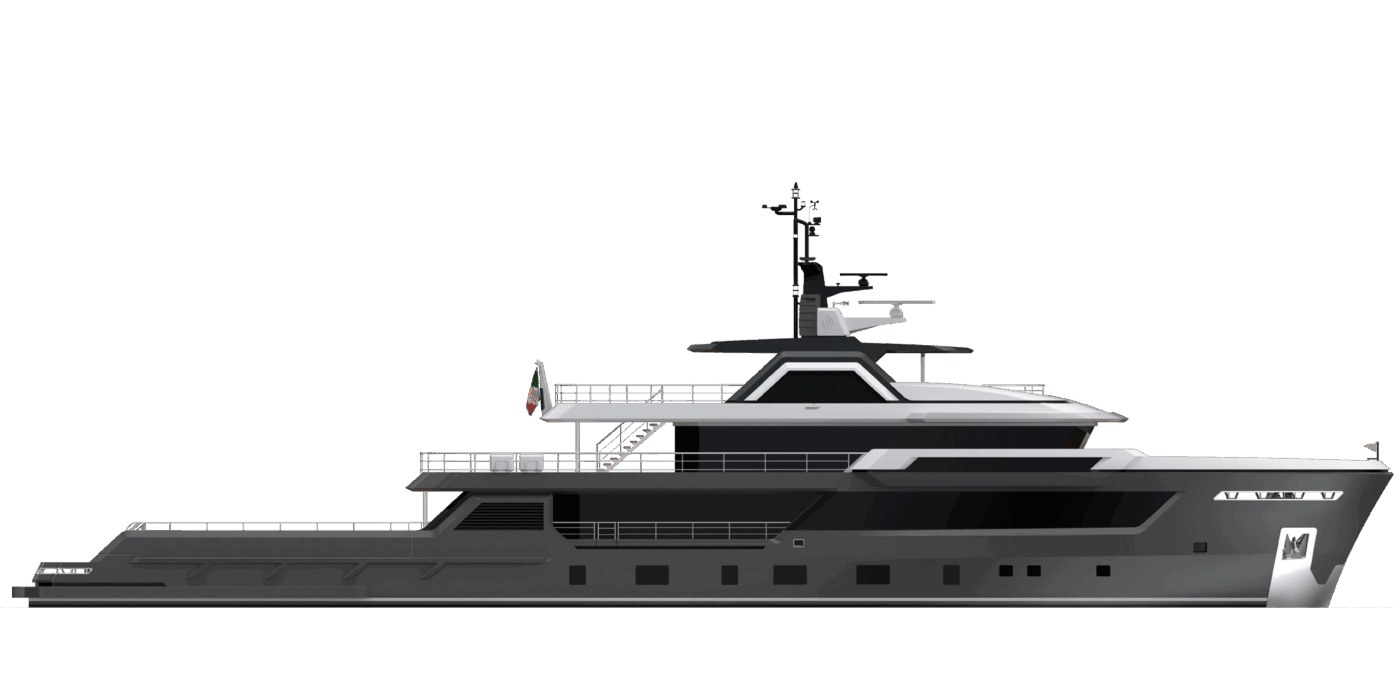

General plan
Specifications
Length overall
49,90 m
165 ft
Max beam
9,00 m
29.5 ft
Depth, amidship
4,25 m
14 ft
Draught, full load under the keel
2,30 m
7.5 ft
Gross tonnage
<500 GT
Classification
C ✠ HULL • MACH Y
Diesel oil
57˙000 lt
15˙057 gal
Urea
8˙500 lt
2˙245 gal
Fresh water
8˙500 lt
2˙245 gal
Black water
2˙000 lt
528 gal
Grey water
5˙000 lt
1˙320 gal
Clean oil / Dirty oil
400 / 400 lt
105 / 105 gal
Bilge
1˙000 lt
264 gal
Engines
2x Caterpillar C32 ACERT, 970kW @ 1800rpm, rating C
Generators
2x CAT 7.1 or similar, 118kW @400V, 50Hz
Bow thruster
1x 110kW, Electrical
Stabilizer fins
2 pair of CMC electric fins
Maximum speed
15 Knots
Range
4˙800 nm @ 10 Knots
Passengers
12 p / 5 Cabins
Crew
10 / 6 Cabins
A powerful A-frame crane perfectly integrates with the deck, remaining flush when not in operation.

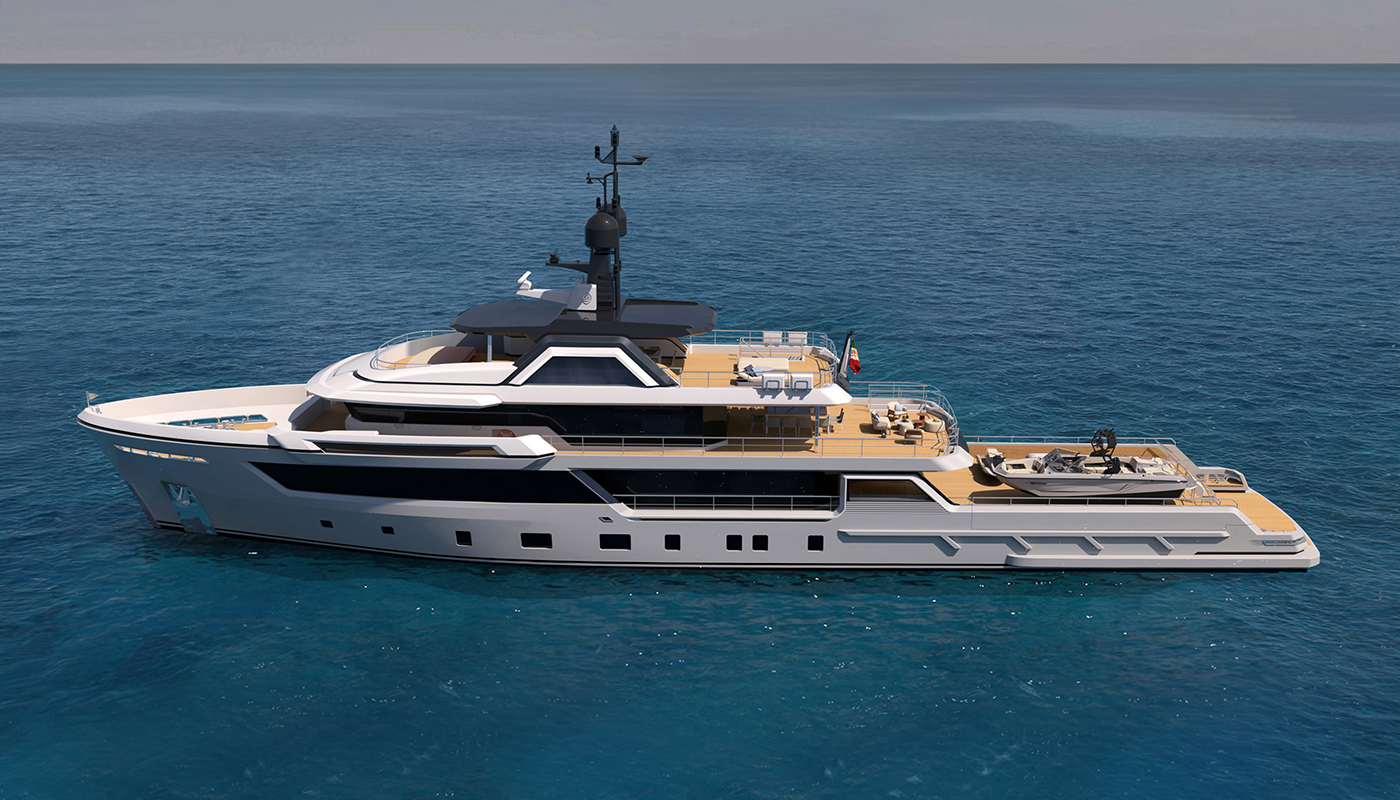

This area exemplifies the concept of flexibility, seamlessly transitioning from a utilitarian space for storing a large tender during extended passages to an extremely spacious and versatile outdoor entertainment area where Owners and guests can enjoy life en plein air. The area can be further enlarged thanks to collapsible bulwarks.
