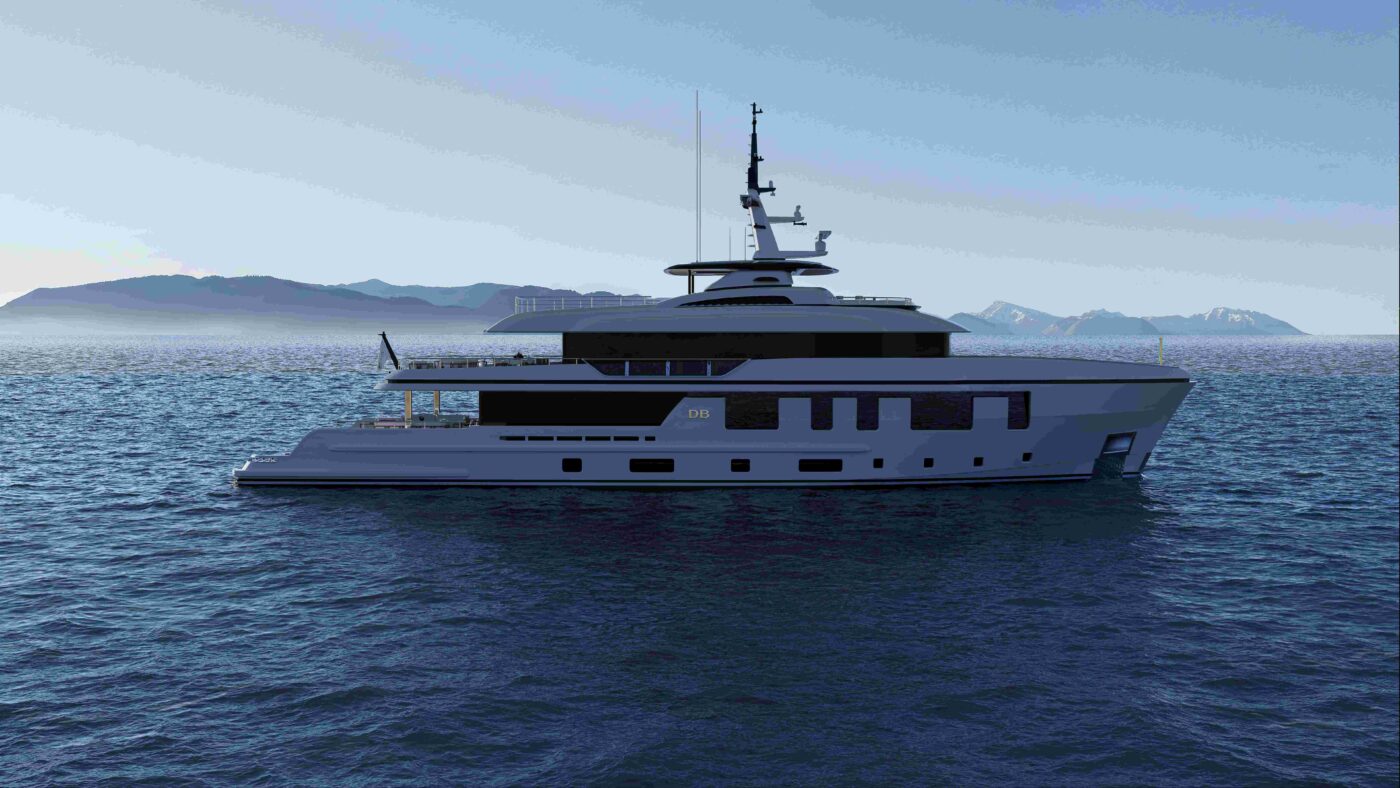

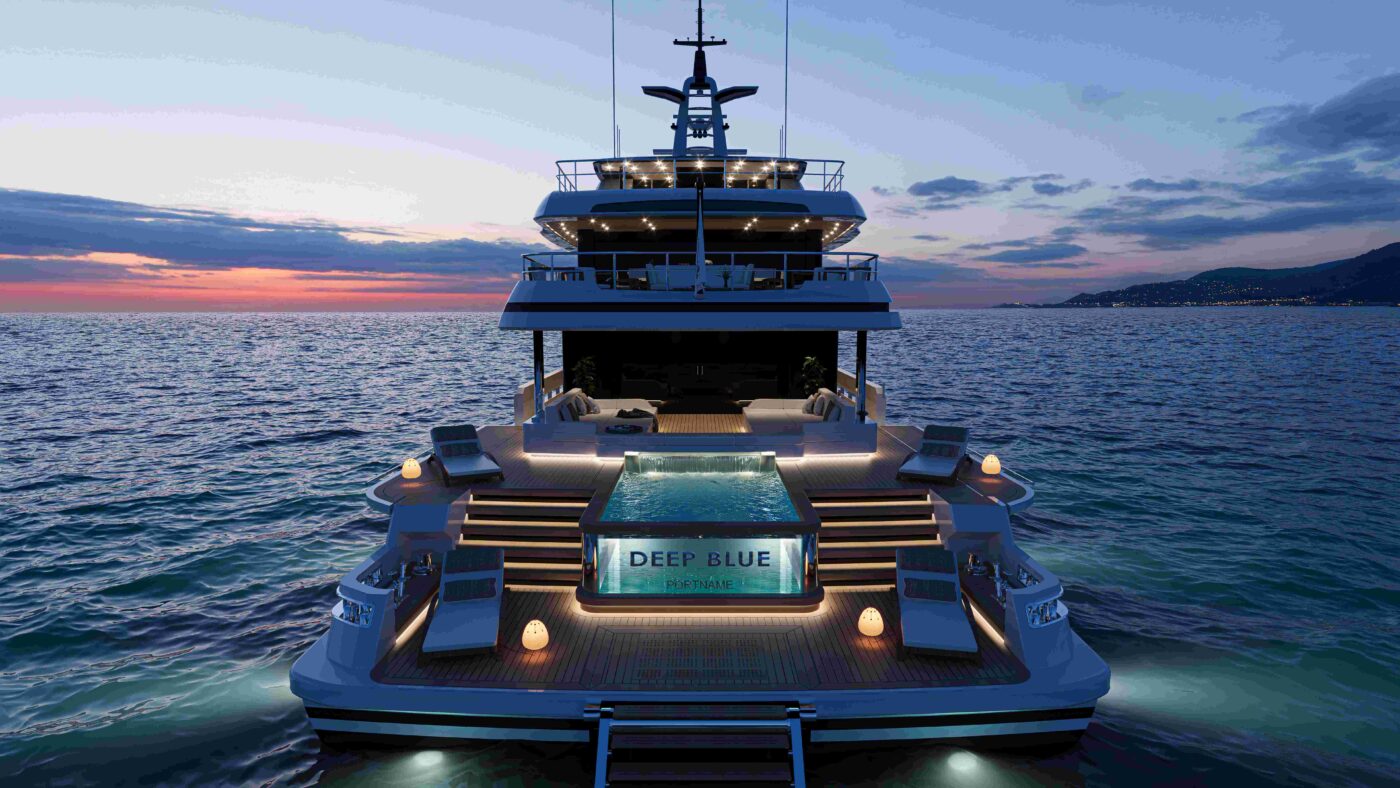

Experience the epitome of style, elegance and versatility with the Deep Blue 130, a true go- anywhere oceangoing vessel.
Lenght range 39,42 x 8,00 mt
Exterior design Horacio Bozzo
Material Steel
Aluminium
Aluminium

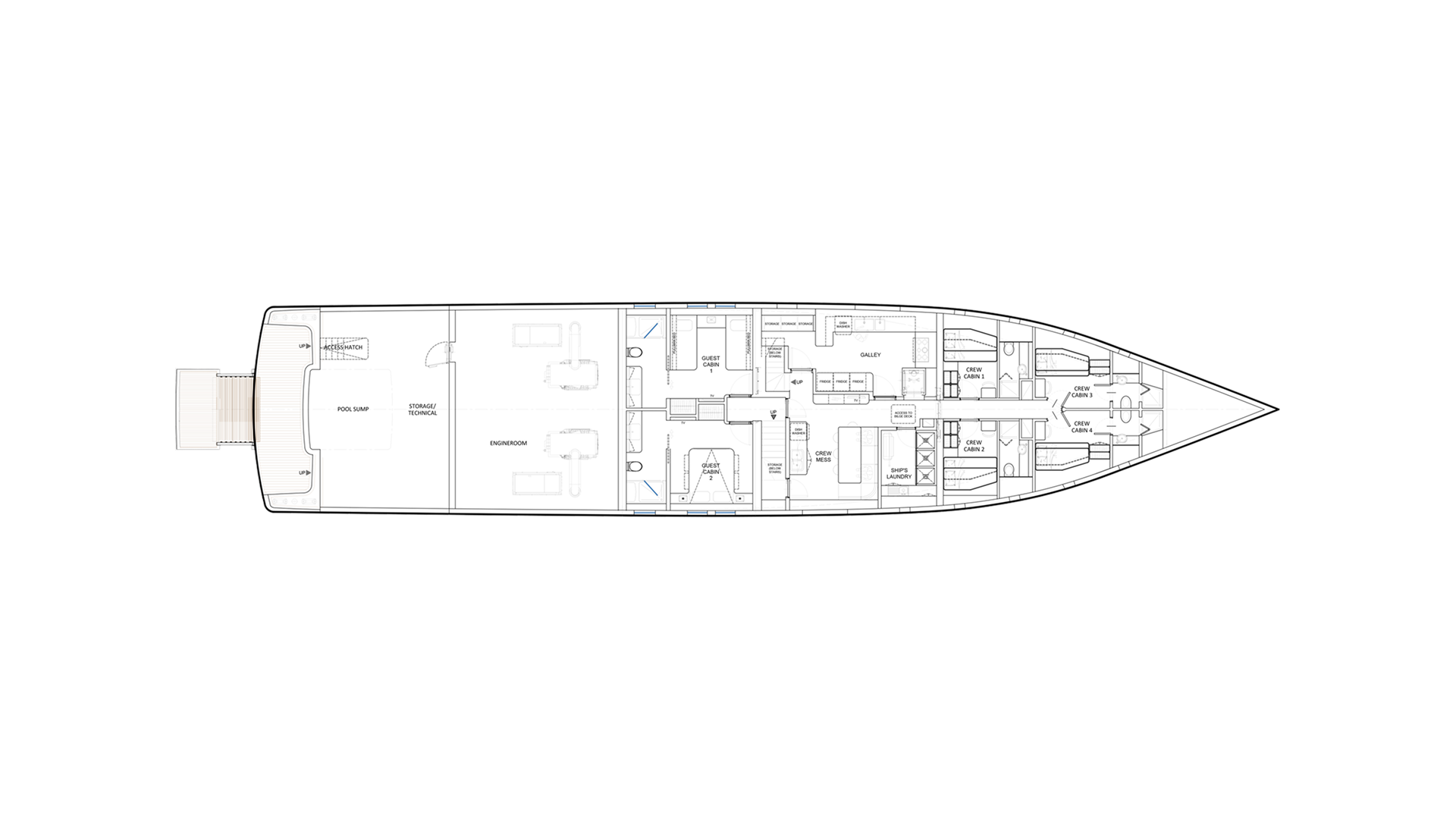

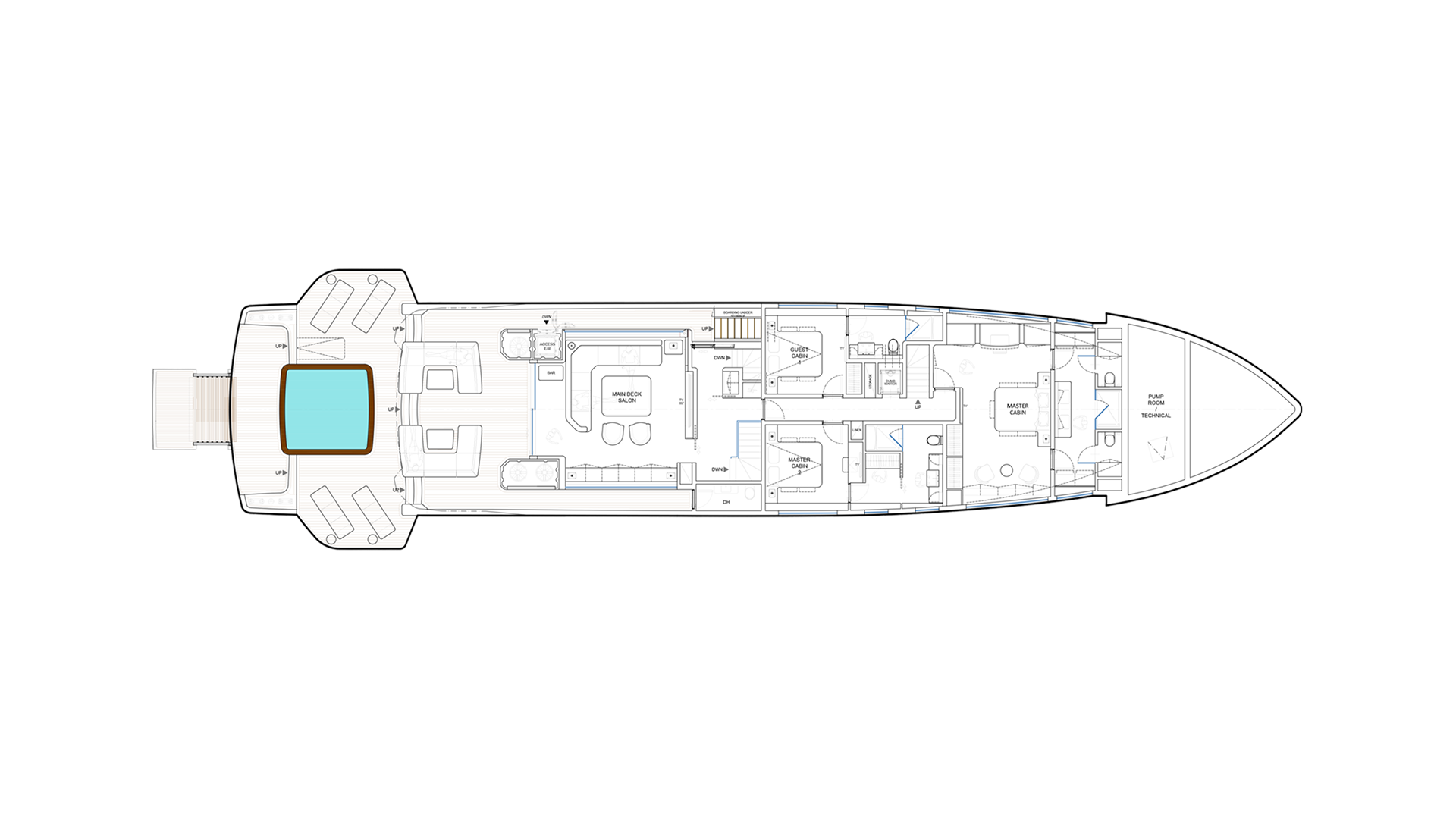

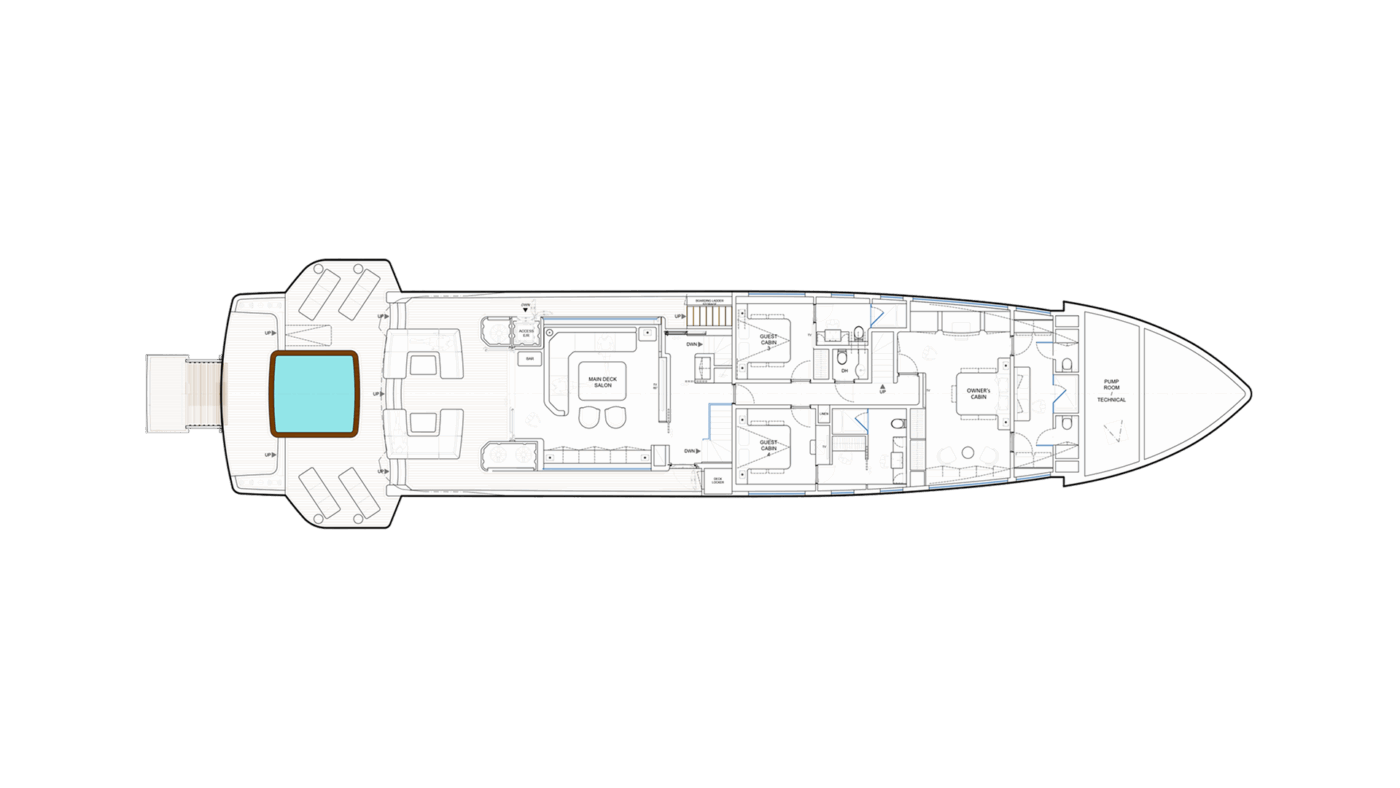

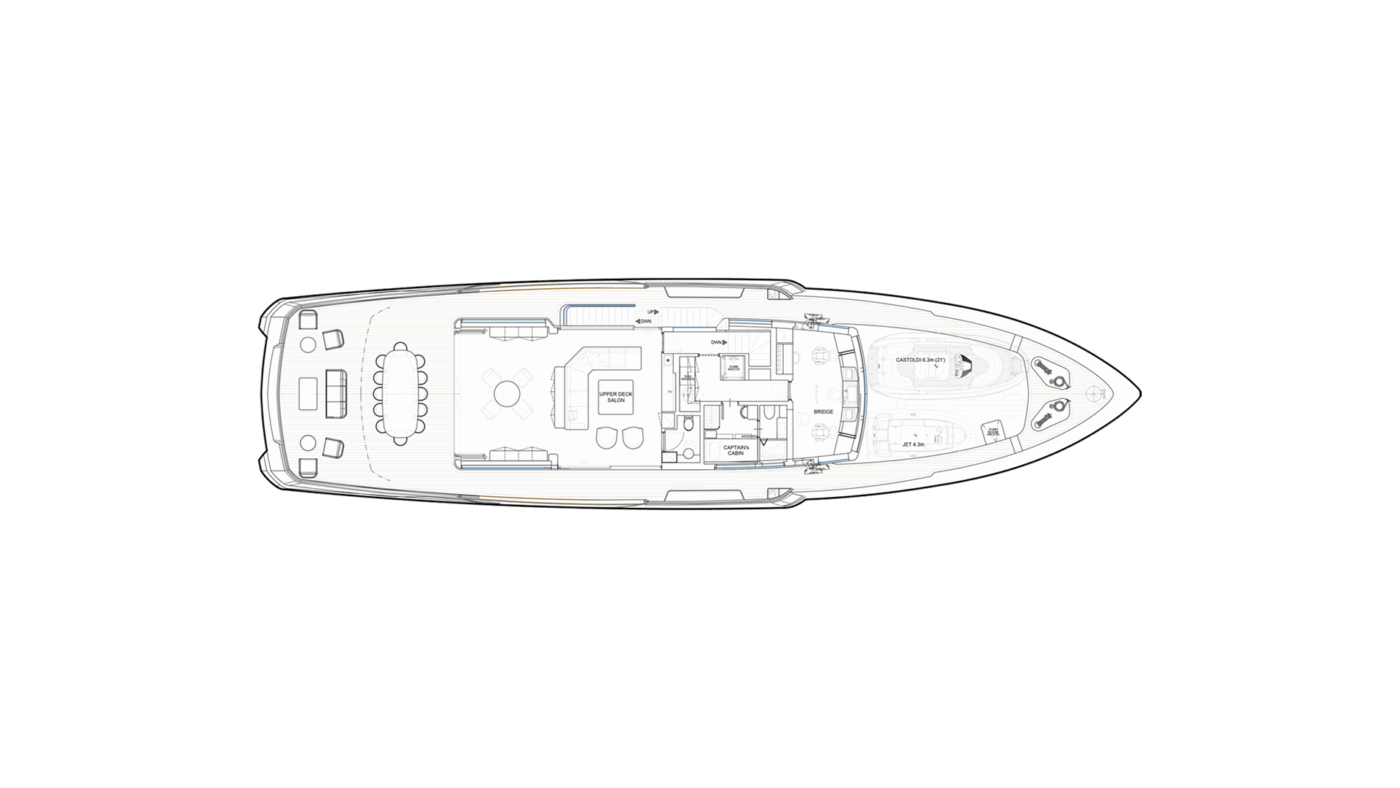

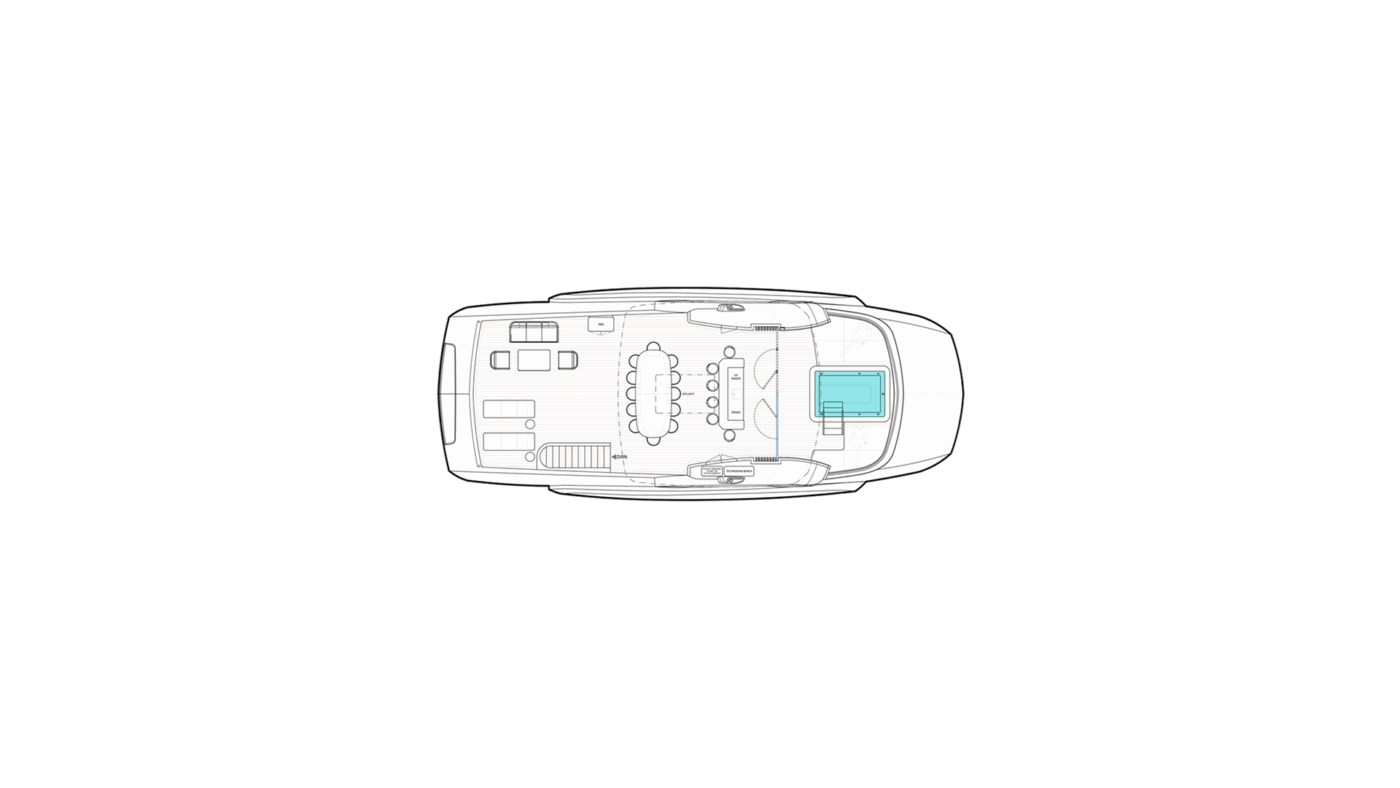

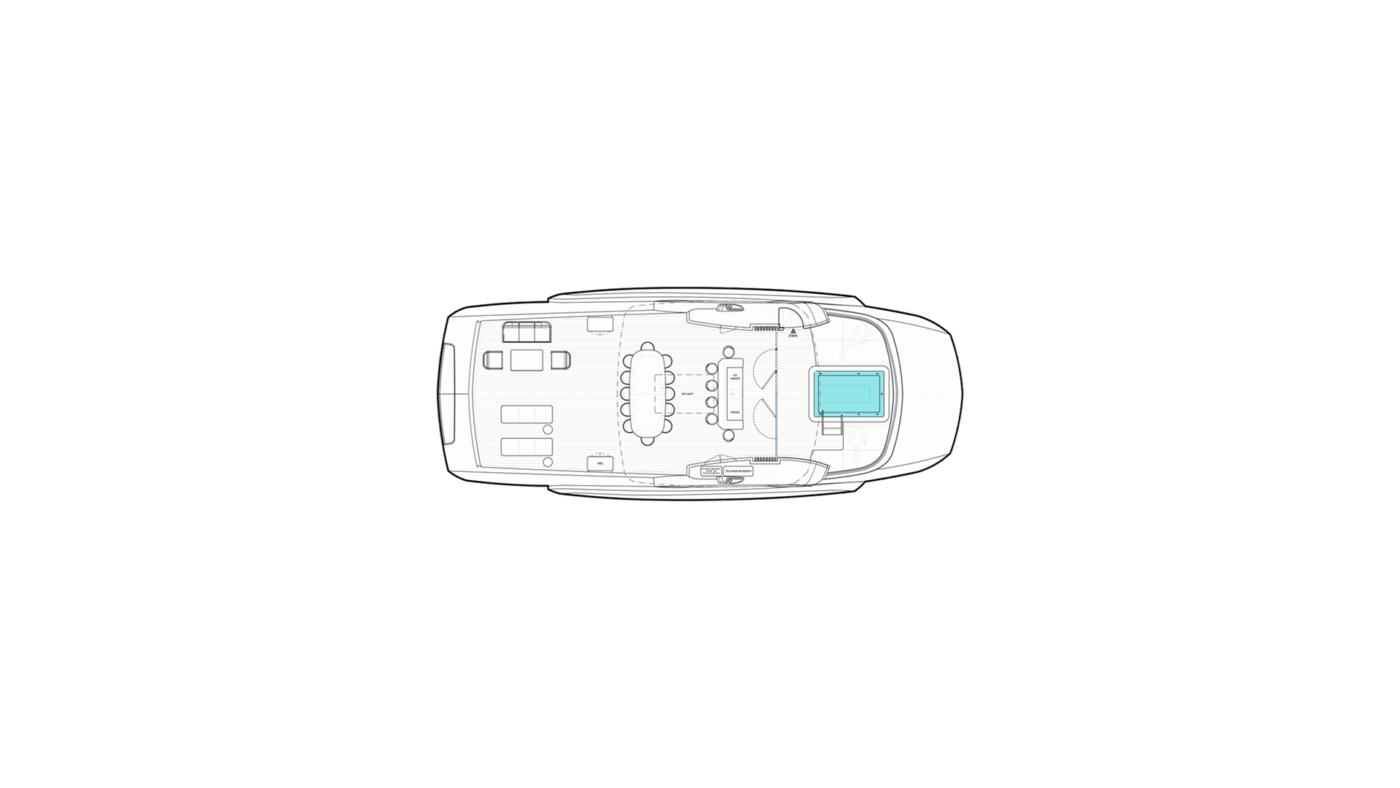

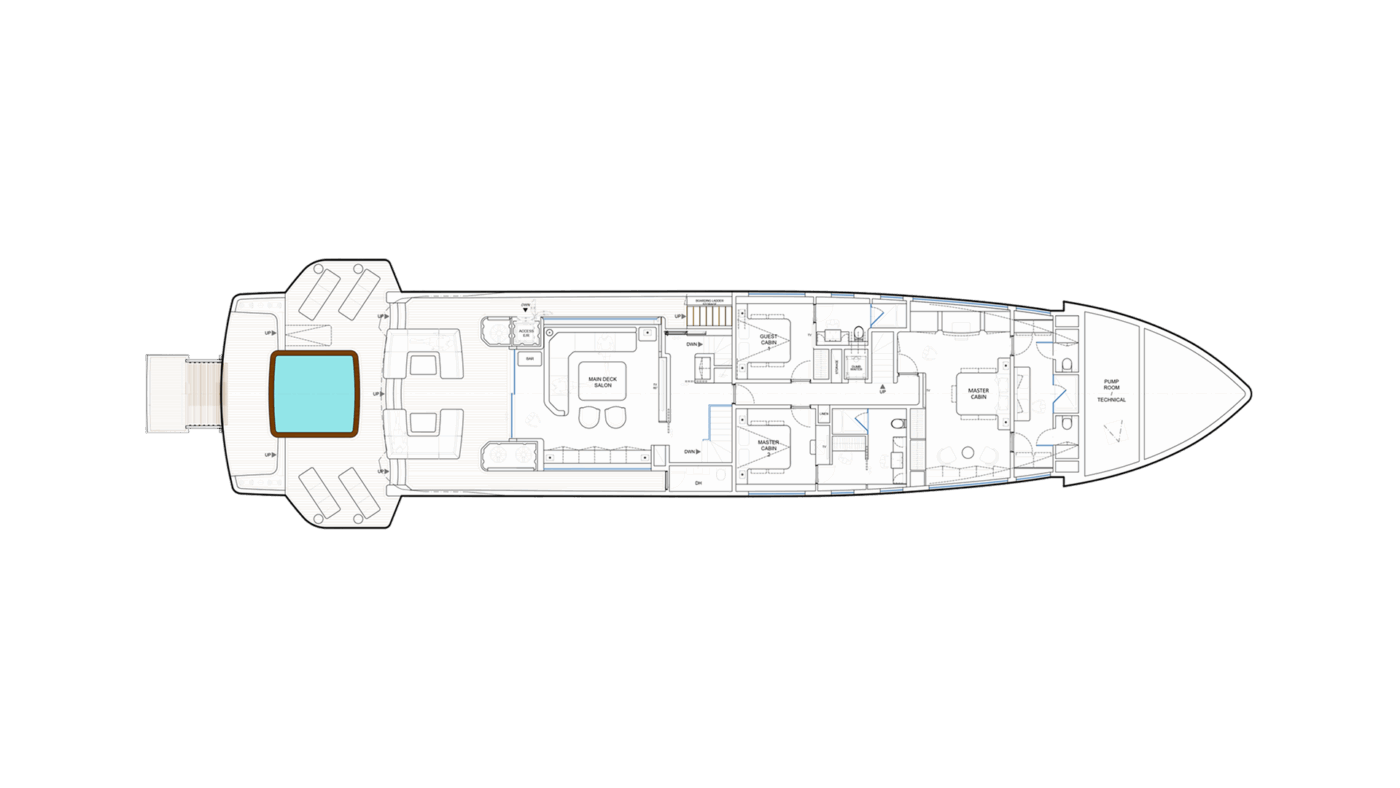

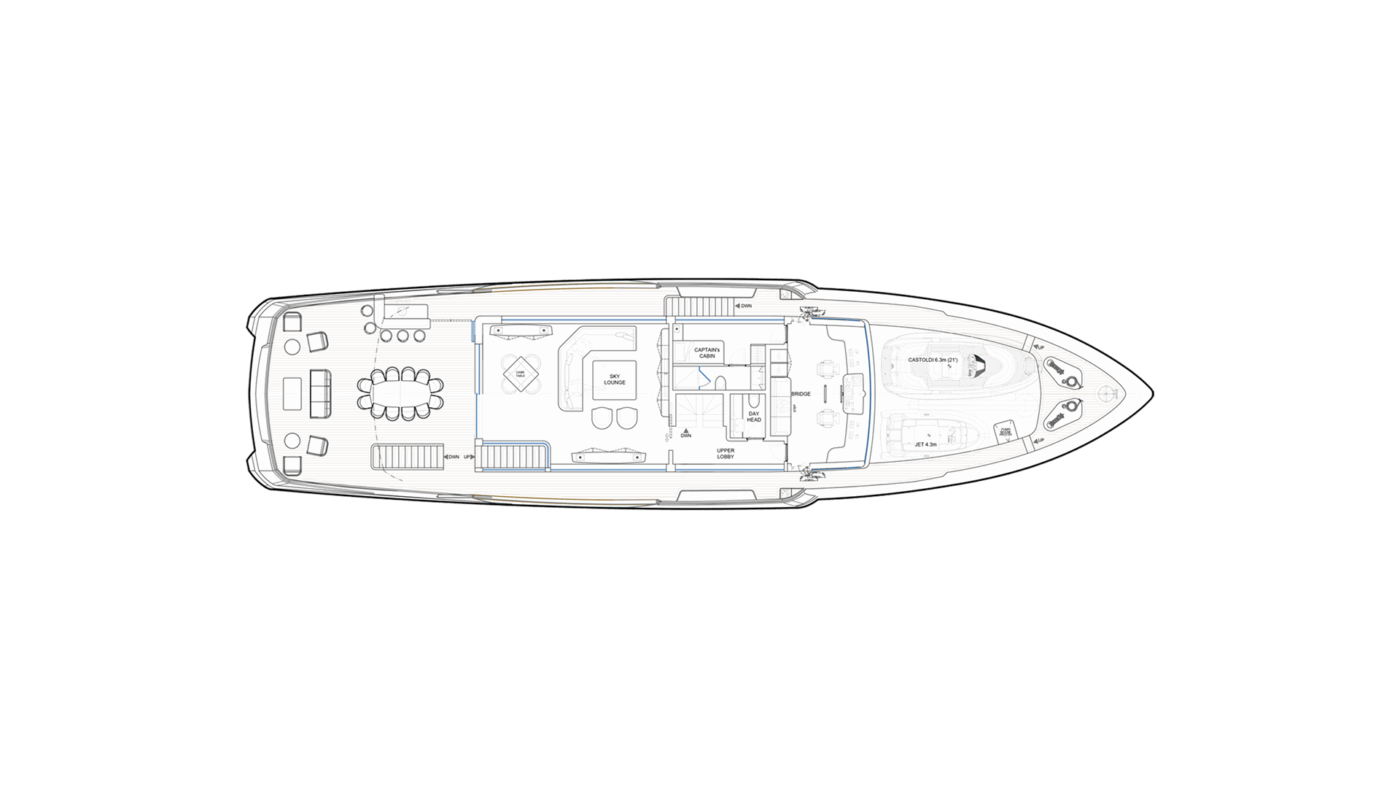

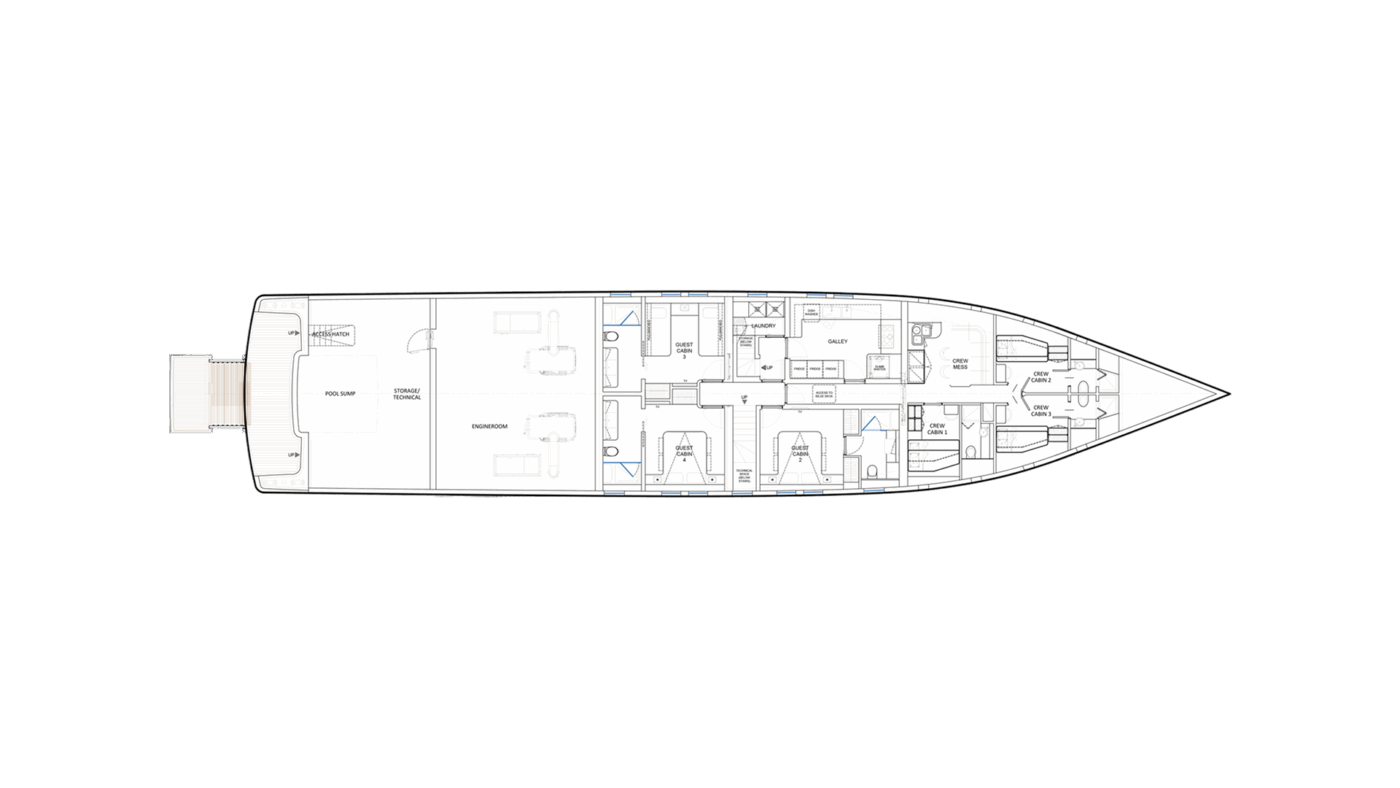

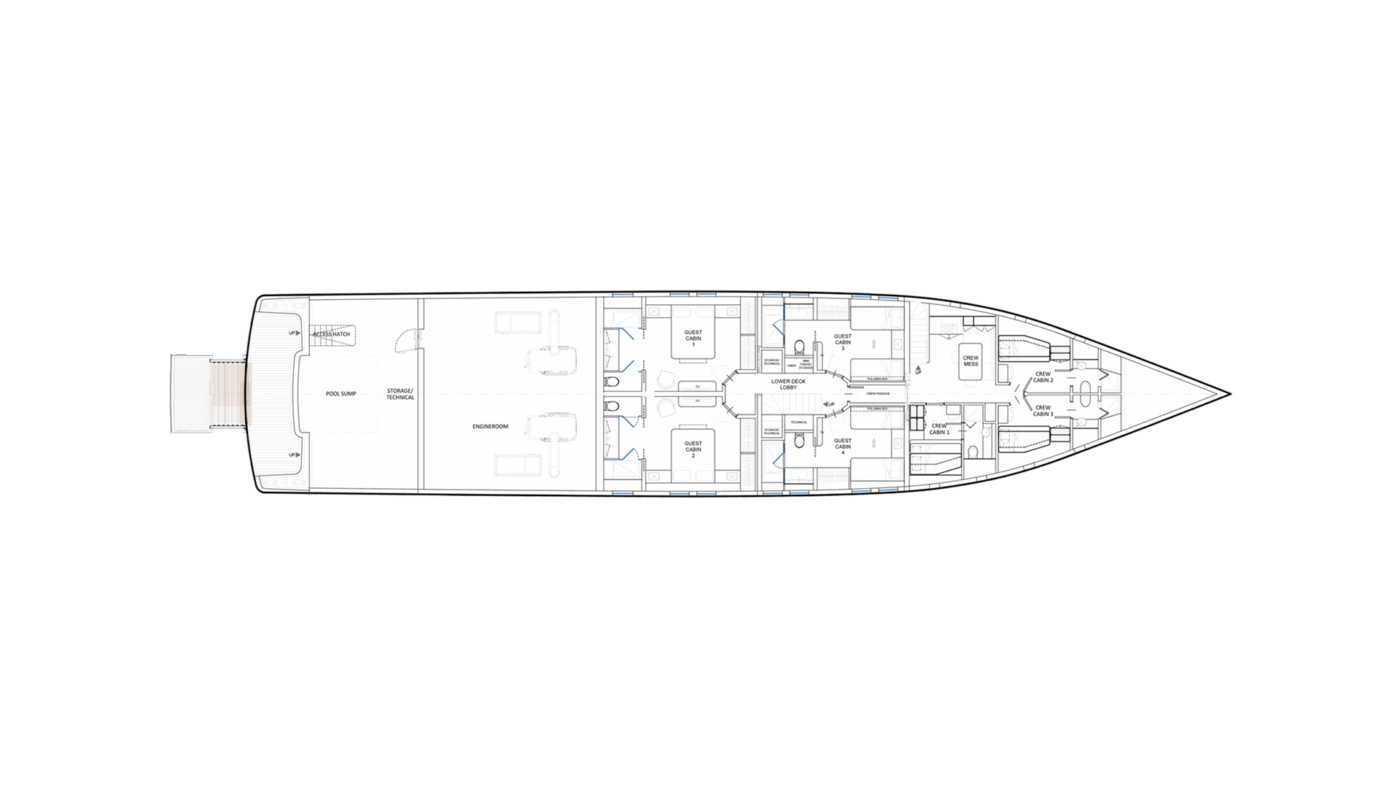

General plan
Specifications
Length overall
39,42 m
129 ft
Waterline length
35,20 m
115 ft
Max beam
8,00 m
26.2 ft
Depth, amidship
4,15 m
13.6 ft
Draught, full load under the keel
2,30 m
7.60 ft
Displacement, full load
320 t
Classification
RINA C ✠ HULL • MACH Y
Diesel oil, including UREA tank
58˙000 lt
15˙322 gal
Urea
3˙000 lt
792 gal
Fresh water
6˙000 lt
1˙585 gal
Black water
1˙450 lt
383 gal
Grey water
2˙790 lt
737 gal
Clean oil / Dirty oil
450 / 450 lt
119 / 119 gal
Bilge
1˙450 lt
383 gal
Engines
2 x Caterpillar C32 2x746 kW @1600-1800 rpm (A Rating, Heavy Duty)
Gearbox
2 x ZF3351 gear ratio 4.00:1
Generator
2x80 kW
Bow thruster
70 kW Electrical
Stabilizer fins
Electrical, Zero Speed
Maximum speed
14 Knots
Cruise speed
10 Knots
Range
4˙500 nm @ 10 Knots
Passengers
10 (+2 Pullman Bed) / 5 Cabins
Crew
7 (+2 Pullman Bed) / 4 Cabins
Designed with the utmost consideration for discerning owners, this explorer yacht offers a myriad of customizable configurations and layouts to cater to diverse lifestyles, ensuring unmatched comfort and luxury whether you navigate far and wide in the Med or voyage to the world’s most remote destinations.
A ship under all aspects, the Deep Blue 130 offers superb comfort in both private and communal areas coupled with outstanding seaworthiness. The Deep Blue 130 boasts remarkably spacious crew quarters.
Voyages to
distant horizons
Sailing to remote shores with Cantiere delle Marche’s explorer yachts.
