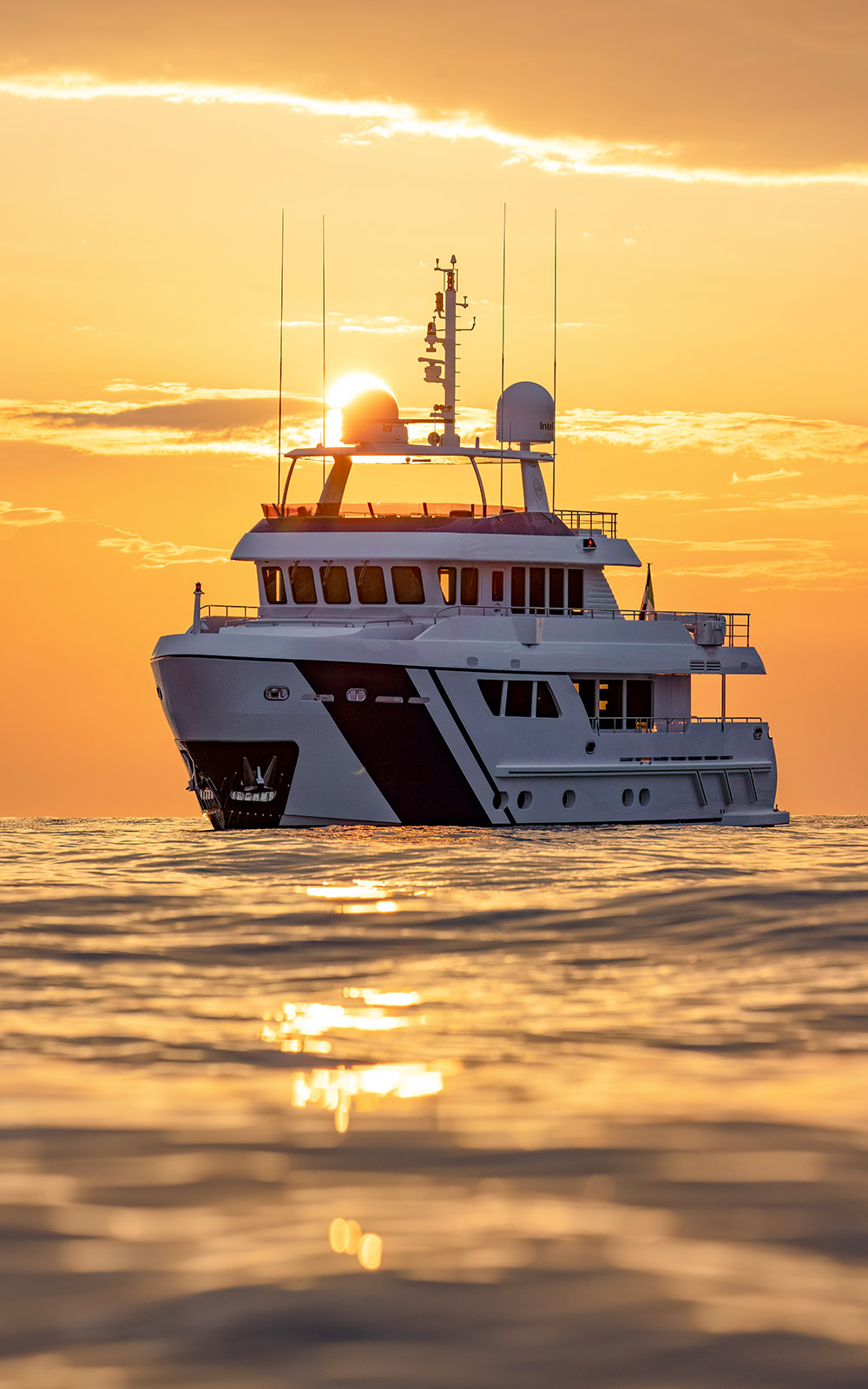

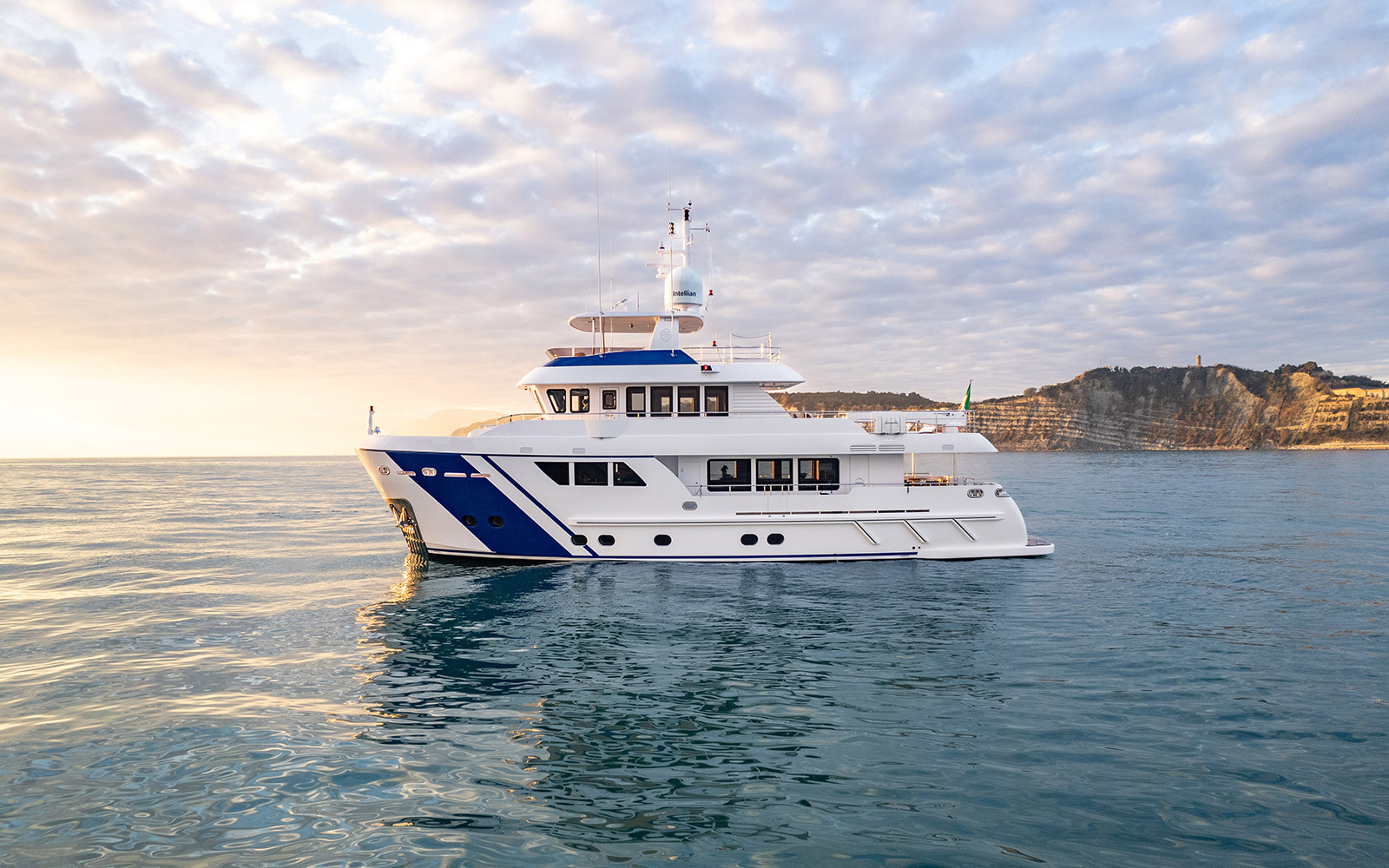

The smallest in the Darwin Class, at just 86 feet (26 metres), is a genuine oceangoing vessel that mirrors the construction standards, equipment and range found in the larger Darwins.
Lenght range 26,07 x 7,43 mt
Exterior design Hydro Tec
Interior design Hydro Tec
Material Steel
Aluminium
Aluminium

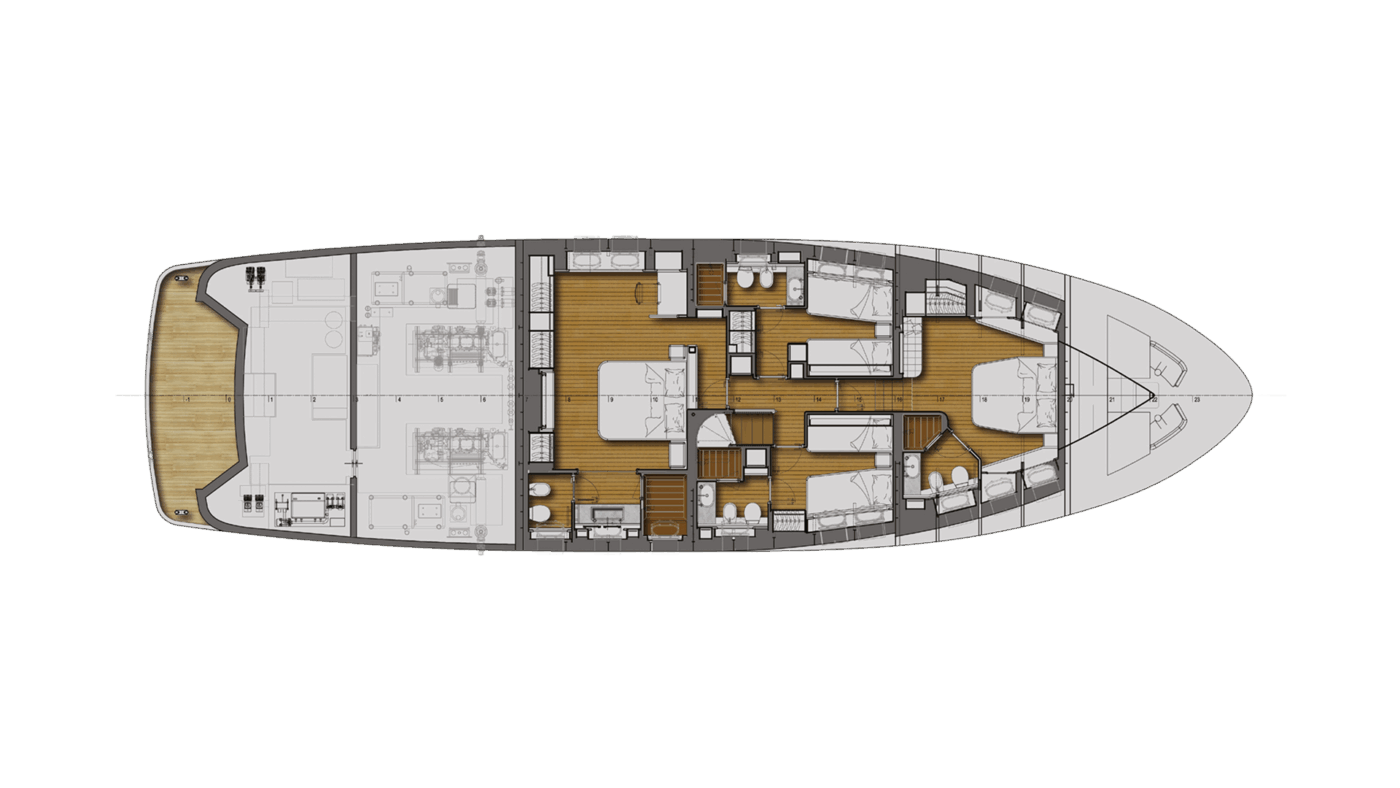

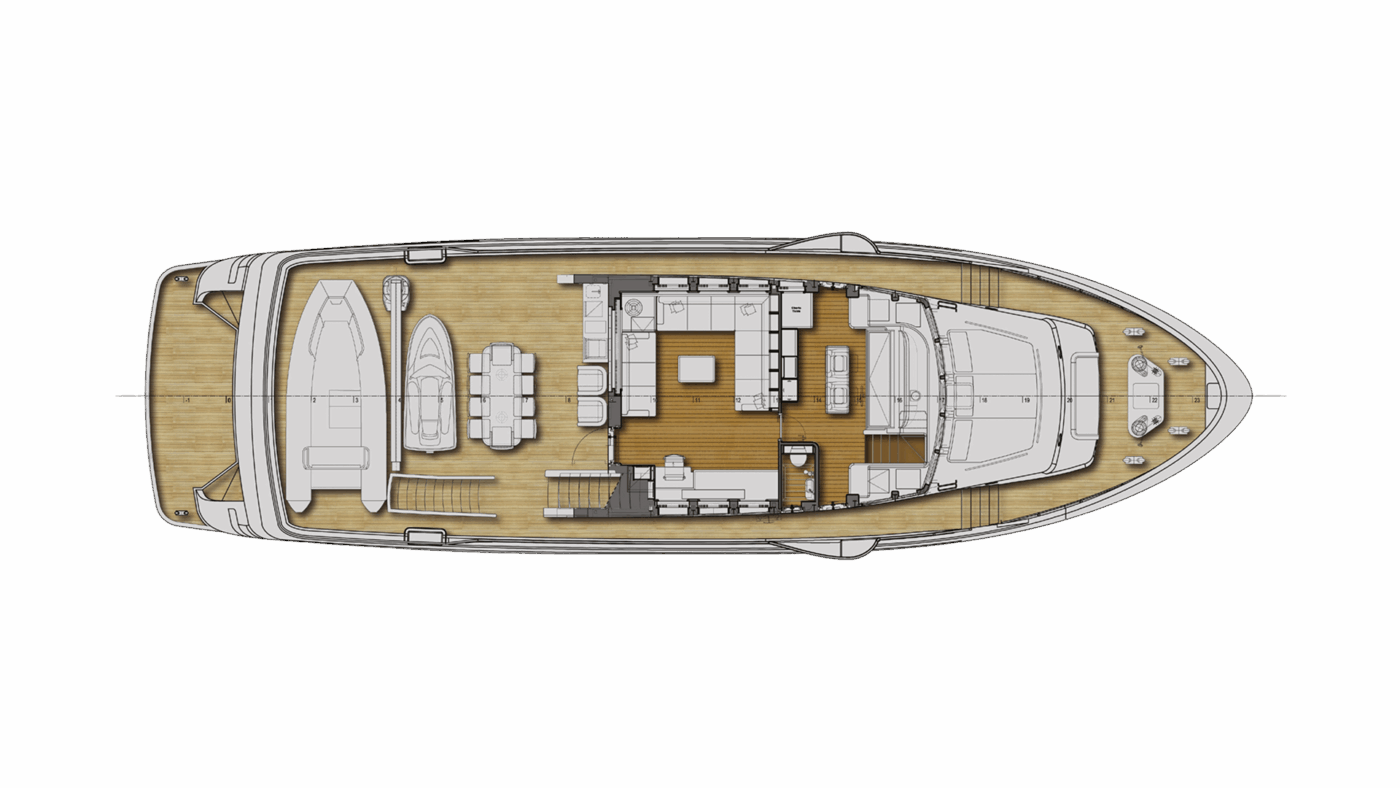

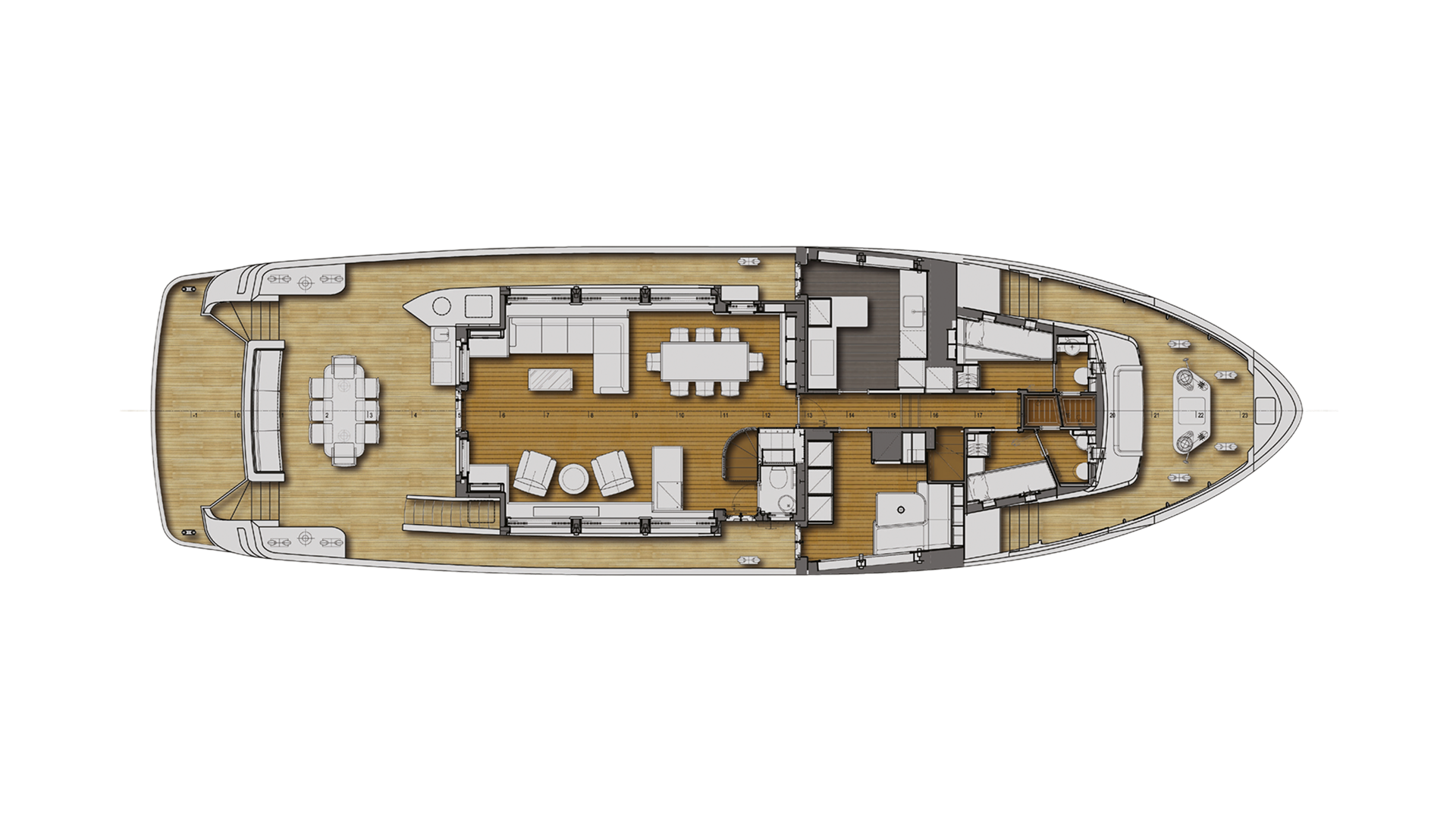

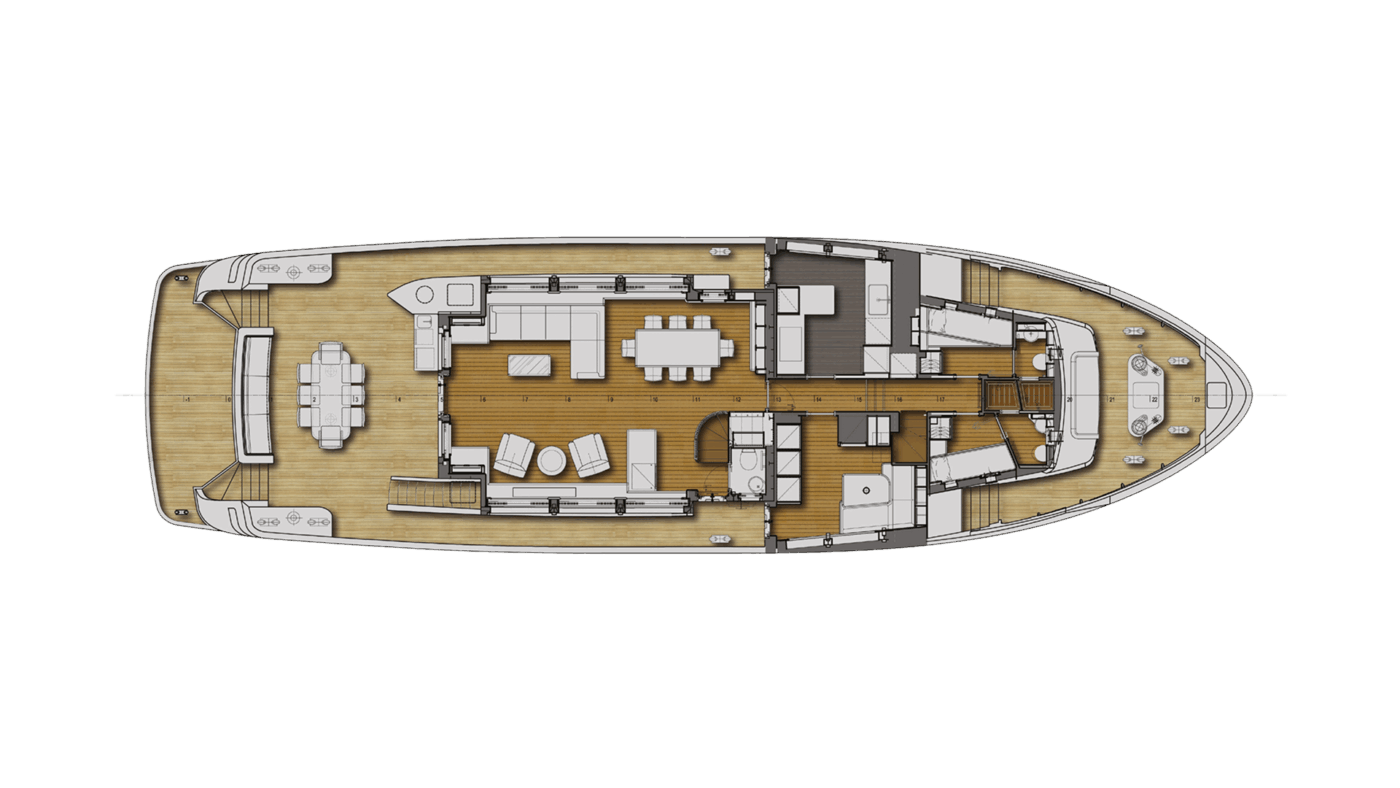

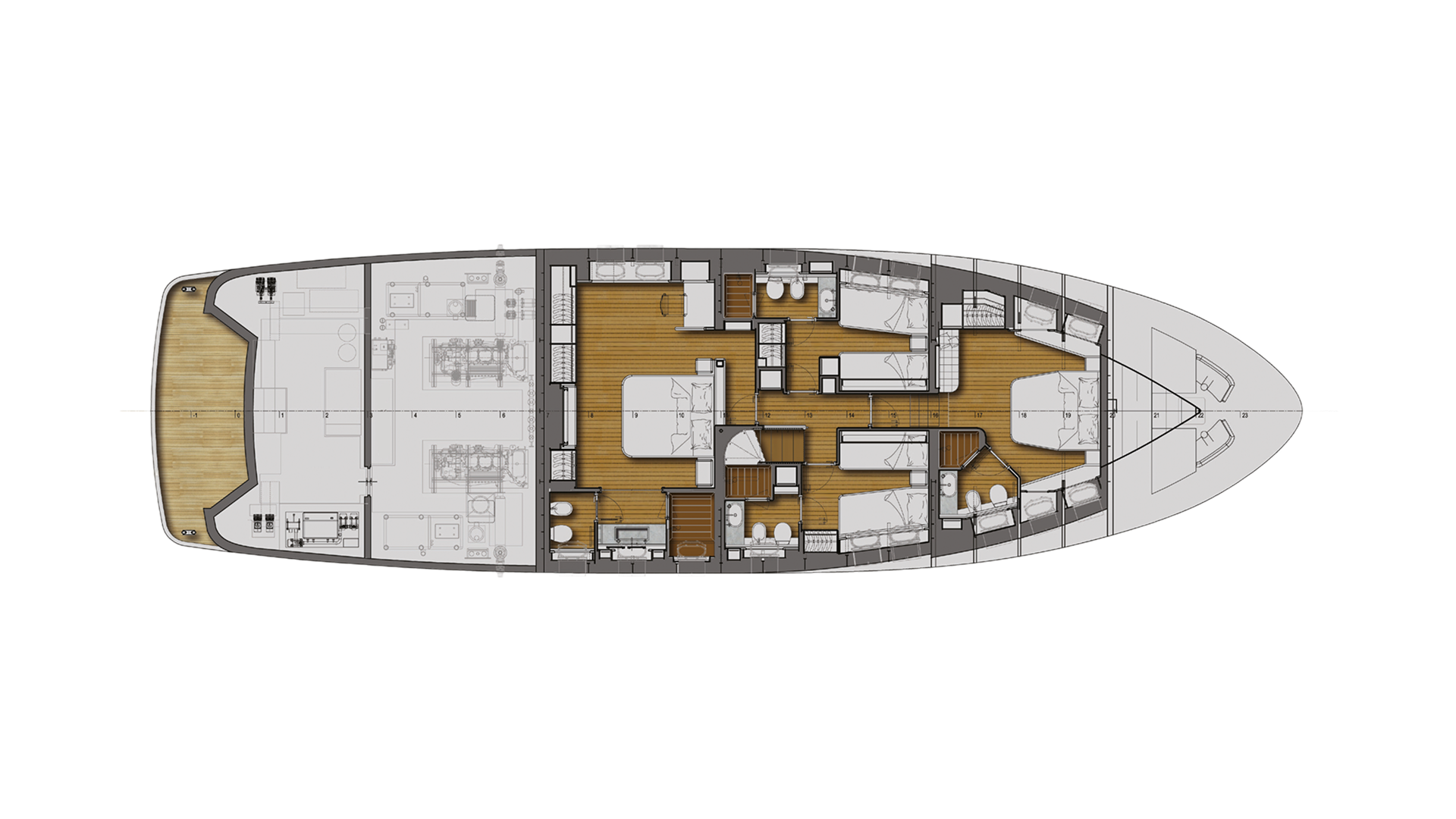

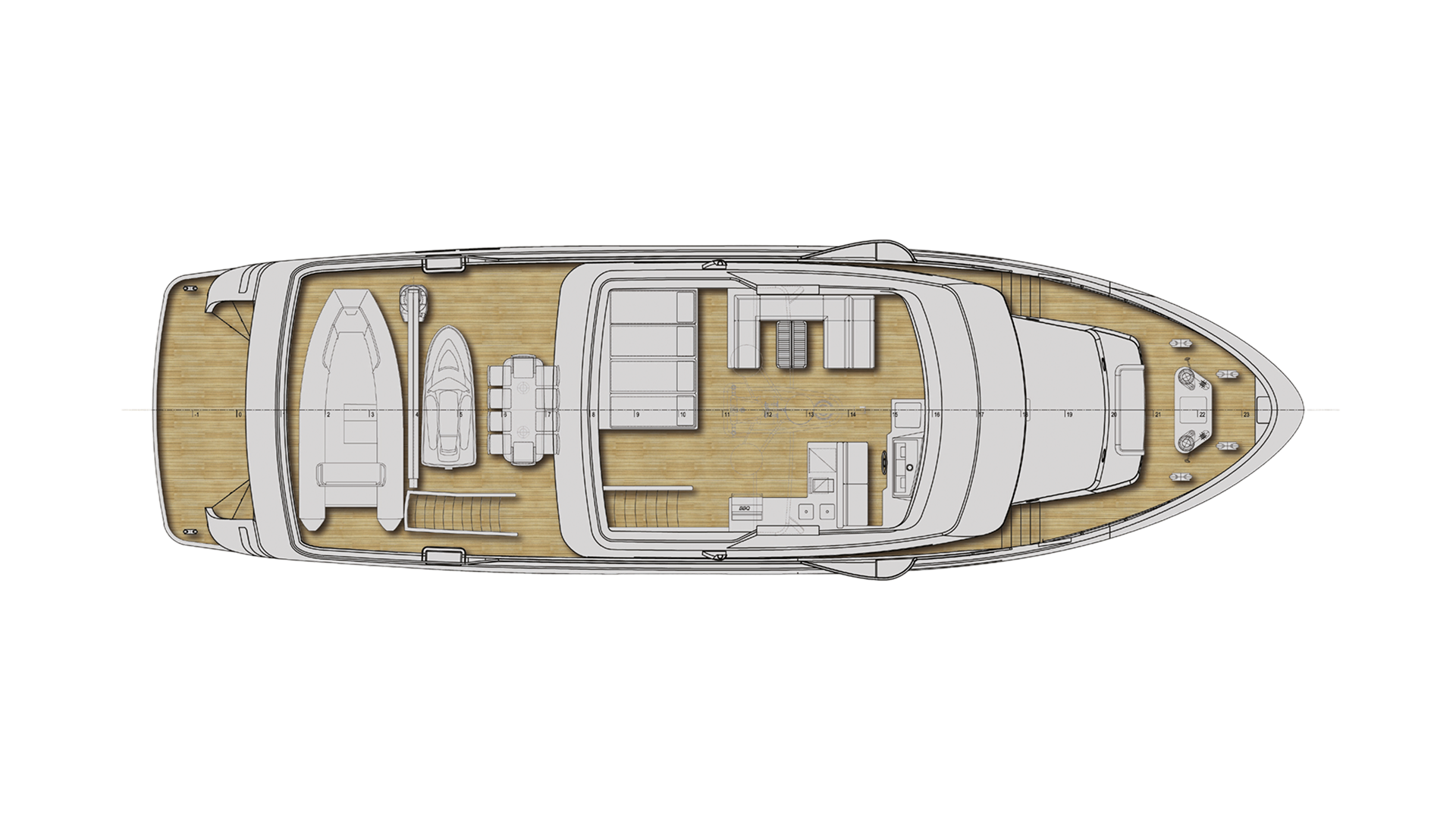

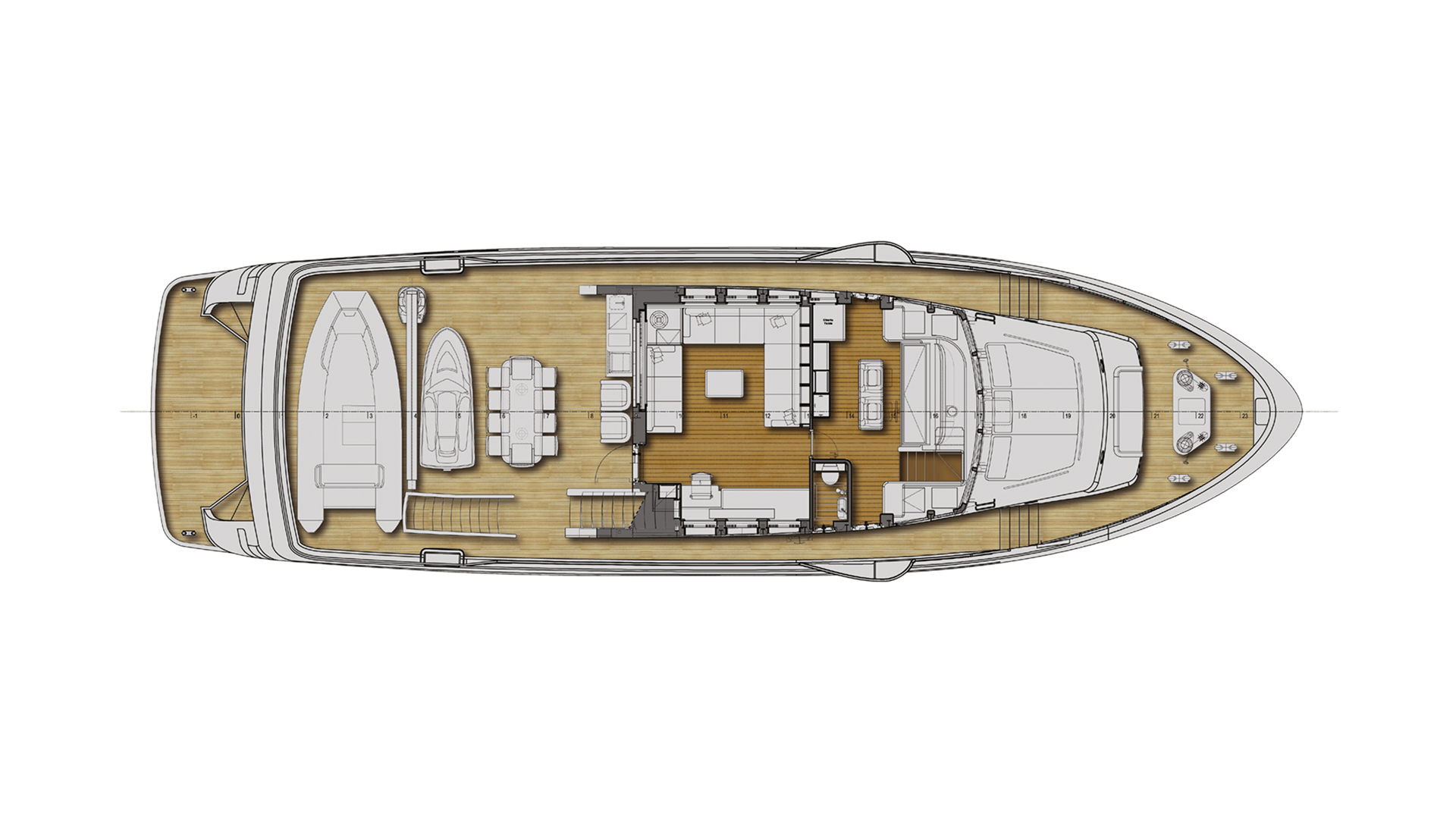

General plan
Specifications
Length overall
26,07 m
86.53 ft
Waterline length
22,90 m
75.13 ft
Max beam
7,43 m
24.38 ft
Depth, amidship
4,00 m
13.12 ft
Draught, full load under the keel
2,42 m
7.93 ft
Displacement, full load
210 t
213.4 long ton
Classification
C ✠ HULL • MACH Y
Diesel oil
38˙400 lt
10˙144 gal
Fresh water
3˙400 lt
898 gal
Black water
985 lt
260 gal
Grey water
6˙366 lt
1˙682 gal
Clean oil / Dirty oil
420 / 420 lt
111 / 111 gal
Bilge
985 lt
260 gal
Engines
2x MAN 16-450 331 kW @ 1˙800 rpm (heavy duty)
Gearbox
2x ZF W325 i=3˙958:1
Generator
2x55 kW Kohler or equivalent
Bow thruster / Stern thruster
Electric 37 kW / 26 kW
Stabilizer fins
Electrical, Zero Speed
Maximum speed
11.50 Knots
Cruise speed
10 Knots
Range
4˙000 nm @ 10 knots Knots
Passengers
7 (+1 Pullman Bed) / 4 Cabins
Crew
4 / 2 Cabins
It provides comfortable accommodation for both guests and crew even during the most extended journeys.
All Darwin 86 delivered up to now have been customized to meet specific preferences and requirements of each owner, resulting in unique features and layouts.
