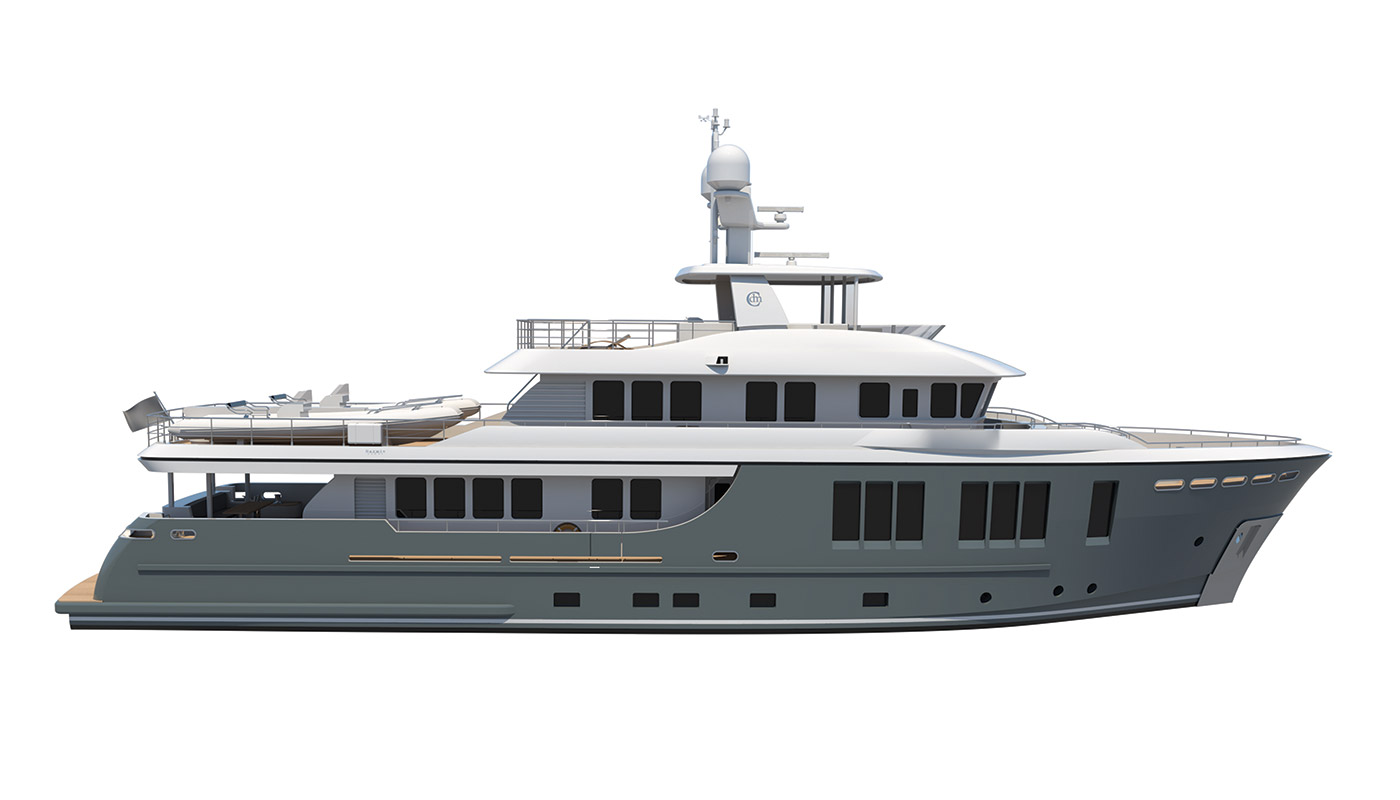

Flagship of the Darwin Class’s fleet, the Darwin 115 is the epitome of the line she belongs to.
Lenght range 35,00 x 7,70 mt
Exterior design Hydro Tec
Interior design Hydro Tec
Material Alumium Steel

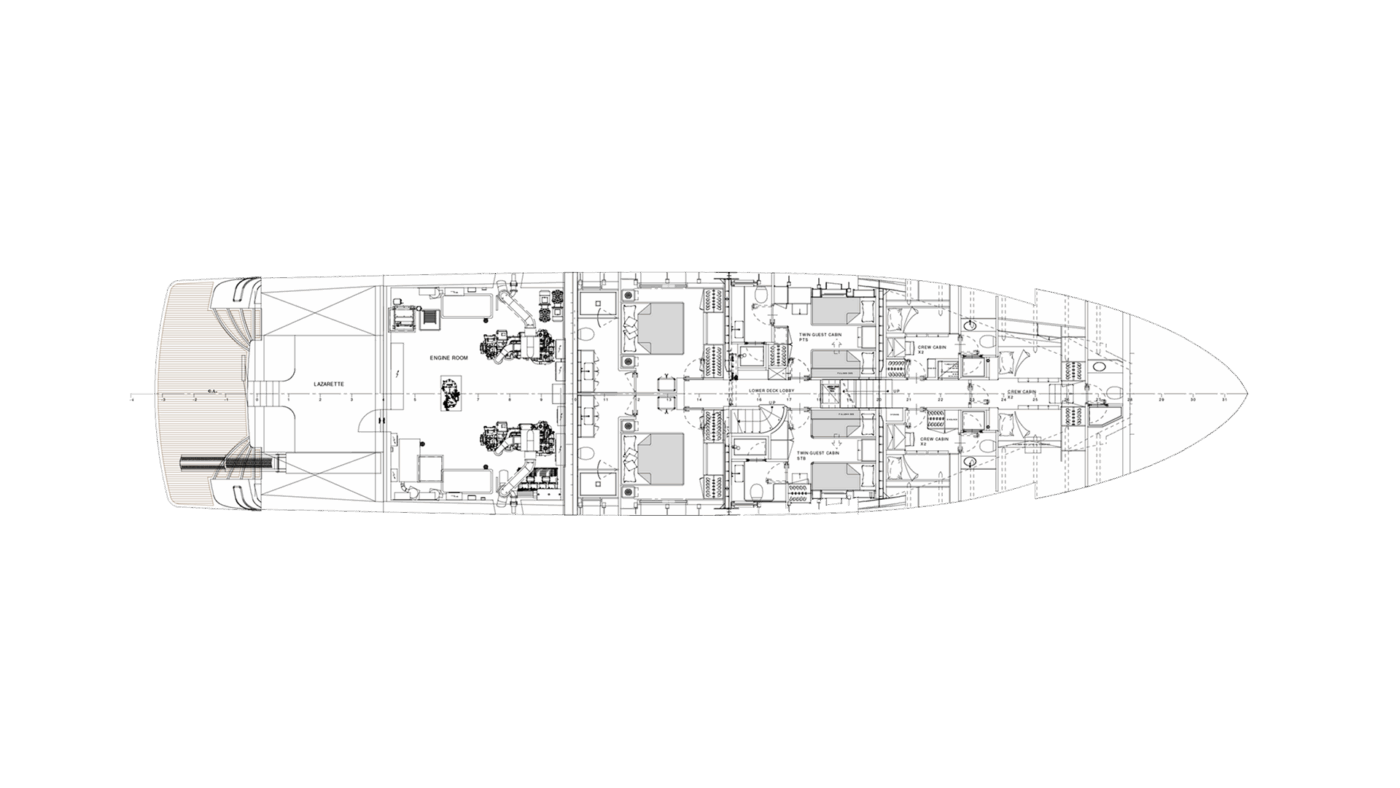

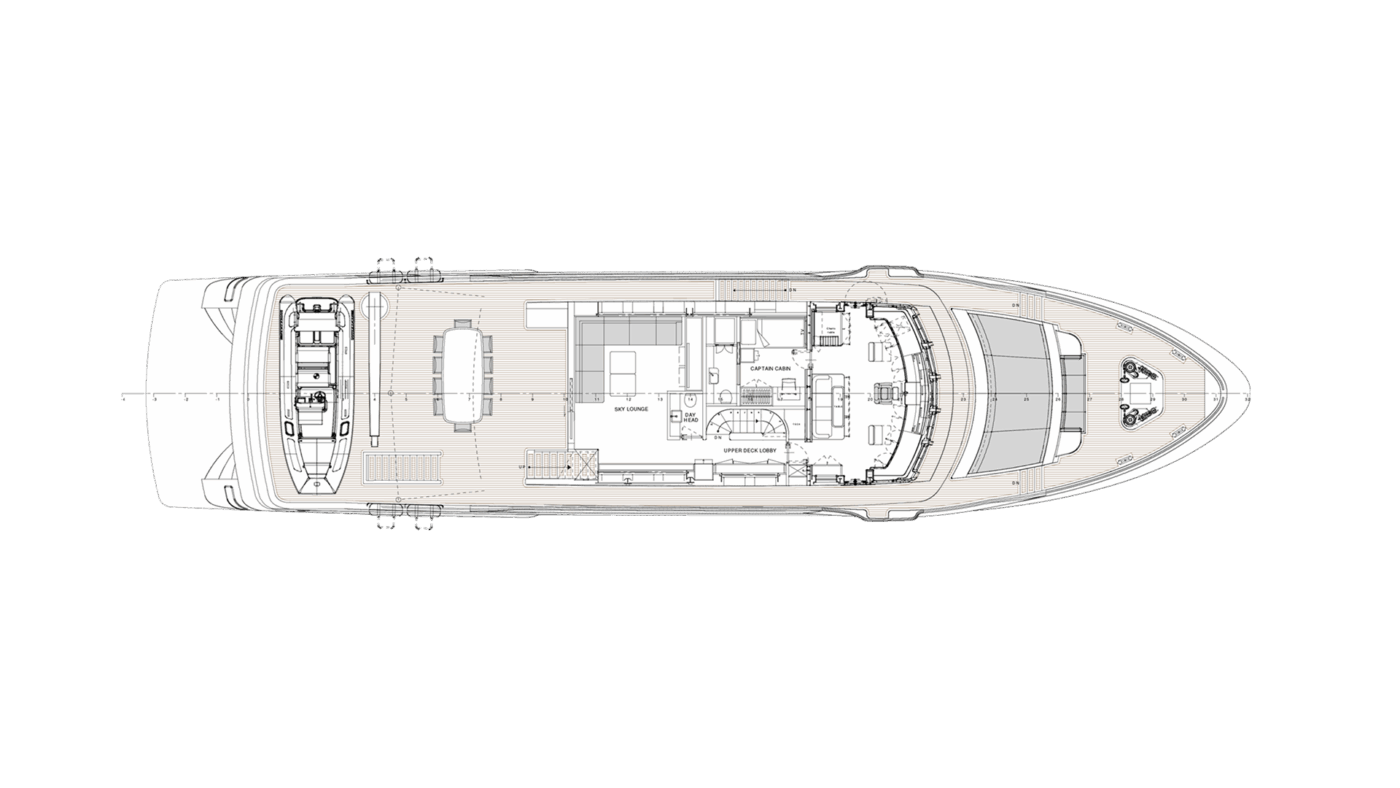

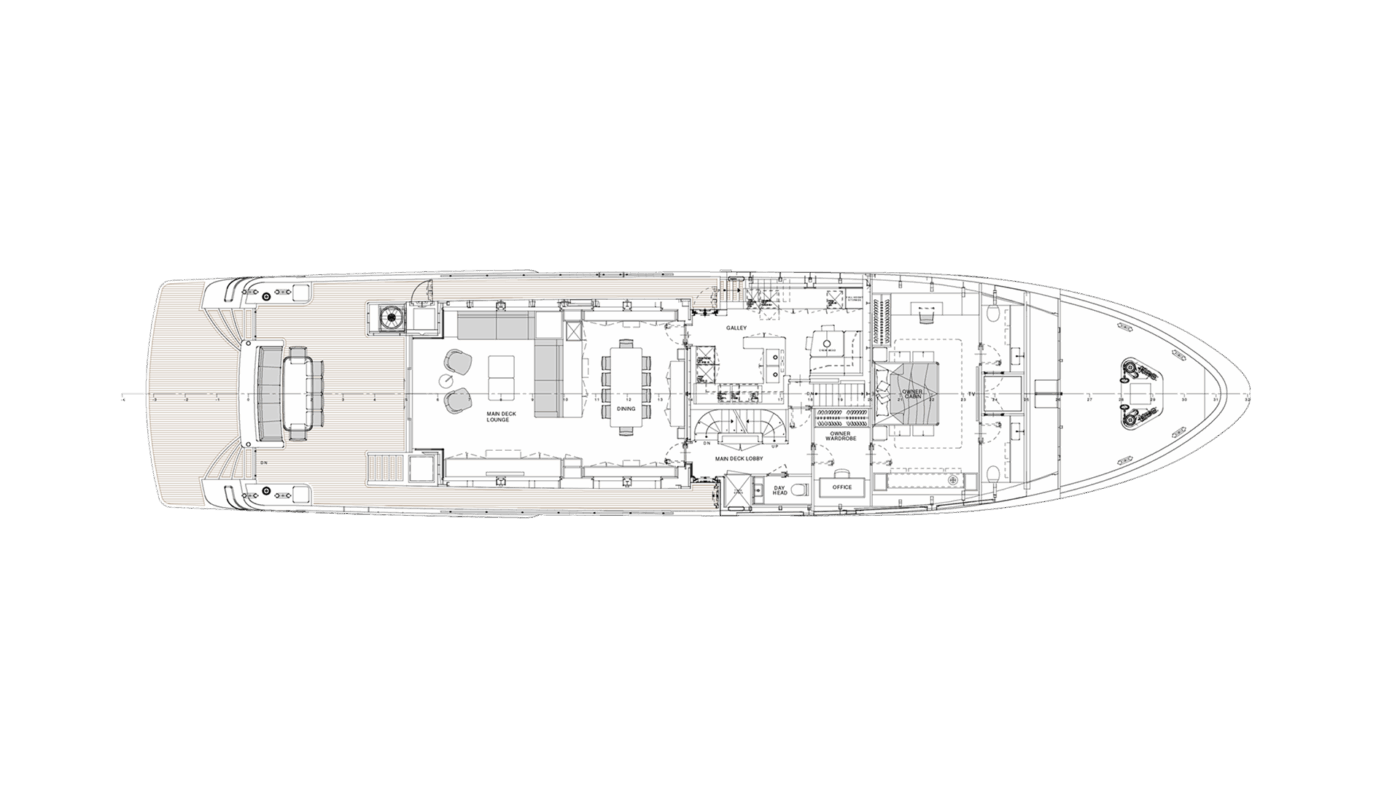

General plan
Specifications
Length overall
35,00 m
114.83 ft
Waterline length
31,55 m
103.51 ft
Max beam
7,70 m
25.26 ft
Depth, amidship
4,30 m
14.11 ft
Draught, full load under the keel
2,60 m
8.53 ft
Displacement, full load
330 t
Classification
C ✠ HULL • MACH Y
Diesel oil
55˙390 lt
14˙632 gal
Urea
2˙800 lt
739 gal
Fresh water
10˙070 lt
2˙660 gal
Black water
1˙450 lt
383 gal
Grey water
11˙350 lt
2˙998 gal
Clean oil / Dirty oil
500 lt
132 gal
Bilge
1˙450 lt
383 gal
Engines
2x CATERPILLAR C18 ACERT 2x500 kW @ 1˙800 - 2˙100 rpm
Gearbox
2x ZF W650 ratio 4.057:1
Generator
2x55 kW + 1x35 kW
Bow thruster / Stern thruster
Electric 60 kW
Stabilizer fins
Electrical, Zero Speed
Maximum speed
13 Knots
Cruise speed
11 Knots
Range
5˙000 nm @ 10 Knots
Passengers
8 (+2 Pullman Bed) / 4 Cabins
Crew
7 / 4 Cabins
A true go-anywhere ship, this model has been designed to offer both Owners/guests and crew the utmost comfort. We have meticulously designed both private and common areas, and outdoor entertainment spaces that serve as hubs of social interaction for guests.
As we remain committed to environmentally responsible practice, the 115, as all explorer yacht for sale of the Darwin Class, includes advanced waste management systems and energy-efficient machineries to minimize our environmental footprint.
